Product Description

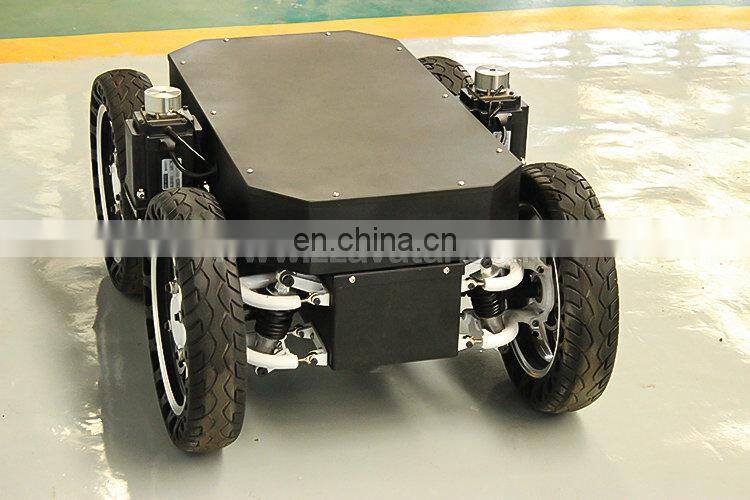

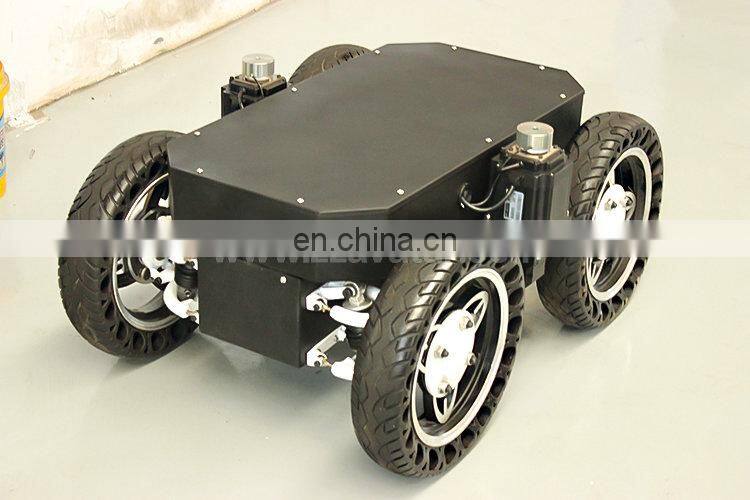

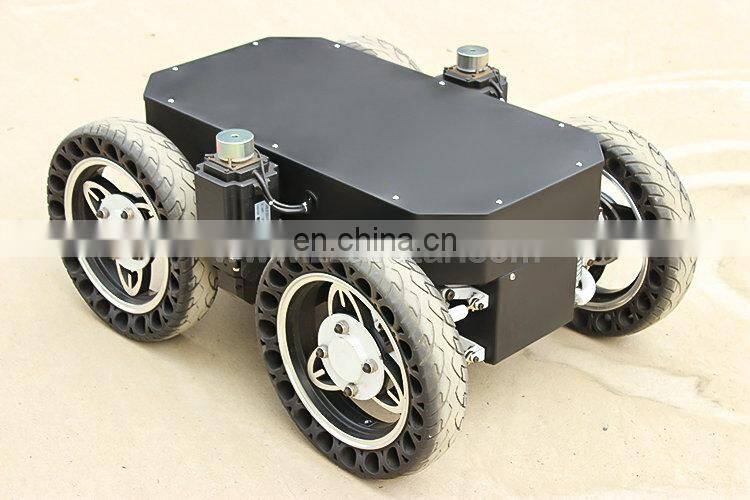

heavy load 4wd remote controller military vehicle car mobile wheeled robot chassis robot platform
Introduction:
1. AVT-W9D wheeled robot chassis has a variety of customizable configurations, can be competent for various working conditions.
2. It’s equipped with 4 sets of shock absorption and independent suspension structure, the stability and load are greatly improved.
3. It uses differential steering method, the steering is very easy.
4. The explosion-proof tires reduces the body weight, it’s particularly suitable for outdoor operations.
Application:
1. Exploration of inspection
2. Scientific research and education
3. Special photography
4. Special transport
Specification:
| Item | Data | Item | Data |
| Dimensions | 920*650*503mm | Platform size | 764*405mm |
| Self weight | 120kg | Running speed | 0-7.2km/h |
| Tyre type | Non-inflatable explosion-proof solid rubber tire | Chassis height | 156mm |
| Body Material | Carbon steel/alloy steel plate/aluminum | Protection level | IP53 |
| Vibration reduction | Four-wheel independent suspension shock absorption | Surface treatment | Spray paint/plastic spray |
| Motor | 48v1000w*2 DC brushless | Design load | 100kg |
| Reduction ratio | 1:22.325 | Maximum climbing | 30° |
| Maximum obstacle | 100mm | Turning radius | Pivot steering |
Product Show
Our spirit is "Unity ,Diligence ,Integrity ,Innovation"
Our mission is "Invent and Create high quality robot and automatic machines ,letting them work and solve difficulties for human beings ."
Our aim is "100% Customer Satisfaction"
After-Sales Service:
1.Warranty:one year for main machine, excluding easily wear parts. During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts: most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
3. Operation and Maintenance: we will offer you detailed operation manual, ensuring you can use it perfectly.
4. Online Service: your question will be answer within 24 hours during working days, 48 hours during holiday.
