AVT-12T Super Quality Investigation Used Robot Chassis Platform for Sale

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

AVT-12T Super Quality Investigation Used Robot Chassis Platform for Sale

Product Description

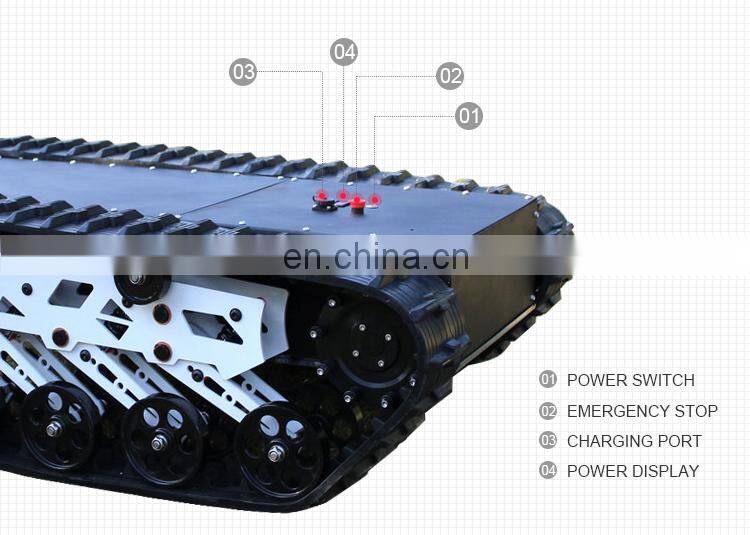

With classic suspension design, automatic tension track, optimized vehicle structure, AVT-12T provides a wider stable platform for the customers. The vehicle adopts christy independent suspension design, 50mm shock stroke, 10 groups suspension arms and automatic tensioning suspension system, it’s suitable for the smooth running on the complex haline surface. It has superior obstacle climbing capacity, modular design, easy replacing components, wireless control, can realize zero radius rotation, 4 degrees of freedom.

Application:

1. Exploration of inspection

2. The rescue vehicle

3. Scientific research and education

4. Fire control security guard

5. Special photography

6. Special transport

Features:

1. 175mm ground clearance, excellent traffic capacity.

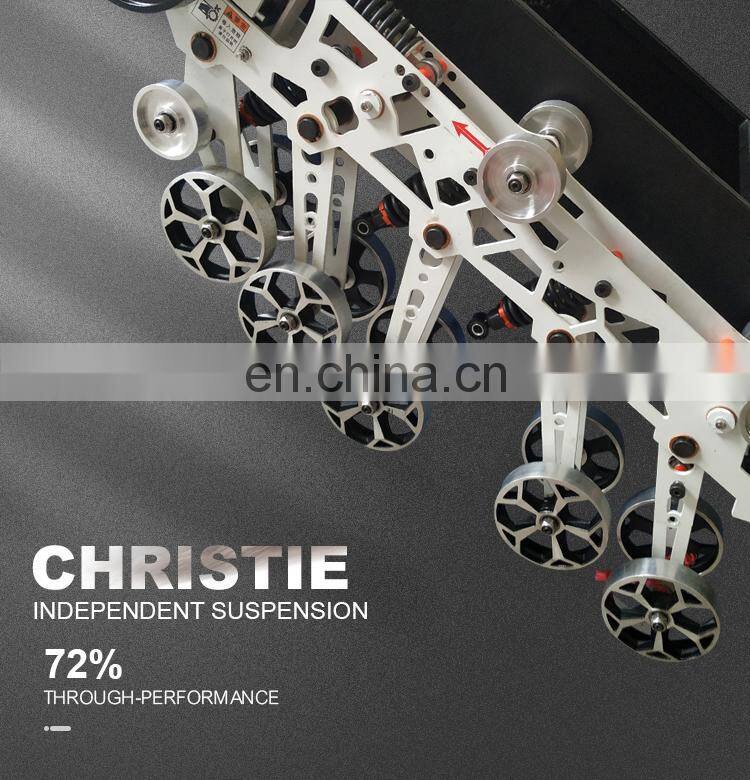

2. Christie independent suspension, 72% ground ratio.

3. 10 groups of shock absorption design, ensure stable moving on complex ground.

4. Self-tensioning inducer wheel design, ensure best track tightness timely.

5. Can climb stairs.

Specification

Model	AVT-12T	Dimension	1185770440mm
Self Weight	150kg	Loading Capacity	80kg
Track Width	150mm	Inner Space	600370220mm
Ground Clearance	175mm	Max. Span Distance	320mm
IP Grade	IP54	Suspension System	Independent*12
Wheel Material	Aluminum	Drive Ratio	15
Reducation Ratio	1:10	Motor Rated Torque	75NM
Running Speed	0-5km/h	Motor Power	3800W
Drive Wheel Dia.	160mm	Climbing Ability	Max. 30°, can climb stairs
Motor	48V Brushless DC Motor	Body Material	304 stainless steel/alloy steel plate/aluminum/ high polymer material
Track Material	Quality Rubber Embedded with Kovlar Fiber	Surface Treatment	Black coating (dull polish)
