Big power provide 380V generator supply rubber track robot platform tracked robot chassis underwater robot chassis
* Introduction about the Underwater robot chassis
The underwater robot chassis is main used for maximum 30m depth underwater operations,
do the secondary development and customized services . Hope you join us !!!
*Application of the Underwater robot chassis

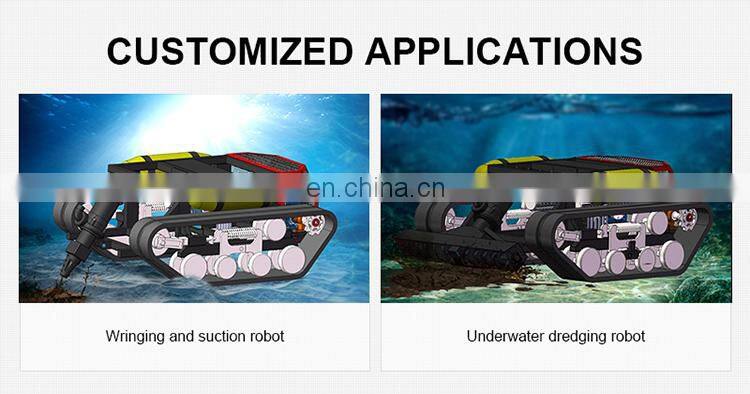

We accept custom application, some sample case as following :
1. Underwater dredging robot: used for cleaning the silt in the breeding pond and sedimentation tank.
2. Wringing and suction robot: underwater excavation, dredging
3. Harvesting of aquatic products: mainly used for the harvest of lotus root, horseshoe, mushroom, and other aquatic crops.
*Advantage of Underwater robot chassis
1.Matilda suspension system can buffer the impact of steps, fit the undulating terrain, has an excellent low-speed shock absorption effect. The two wheels share the absorbing spring, with less wearing parts and high reliability.
2. Integrated welded frame body, solid structure, light weight, the whole chassis is sprayed and rust-proof.
3. The power transmission components are oil-filled and waterproof, long-term reliable, and resistant to water depth of 30 meters.
4. Standard industrial rubber track, durable and easy to replace
5. High-molecular material pulleys (molecular weight greater than 5 million), high strength, strong water resistance, greatly reducing the total weight.
6. Modular design, convenient for users to upgrade and transform.
7. Power system: generator or civil power supply.
8. 2 control modes optional:
(1) Handheld remote controller+normal control box mode: No secondary development, or simply support the remote control receiver with reserved control channel PWM signal, does not support video and voice channel.
(2) Visual control box mode: 4 wired video signals, 13 PWM steering gear control signals, expansion of underwater equipment can be customized and developed.
*Specification of underwater robot chassis
|
Item |
Data |
Item |
Data |
|
Dimension |
1220*890*520mm |
Speed |
2.5-4KM/h |
|
Self Weight |
120kg |
Designed Load |
100-300kg |
|
Waterproof |
IP68 |
Rated Torque |
100-500 NM |
|
Track Width |
Reducer Efficiency |
65-85% |
|
|
Gear Ratio |
1:10-1:40 |
Motor Voltage |
380ACV (customized as local voltage) |
|
Motor |
0.75-1.5KW*2 |
Climbing Ability |
≤30°(can climb stairs) |
|
Motor Rated Speed |
1500r/min |
620mm |
|
|
Standard 50m, maximum 150m |
Over-Obstacle Capacity |
130mm |
|
|
30m |
Generator or 380V power supply |
*Detail pictures of Underwater robot chassis
*Other model of underwater robot chassis
