Home > Products > CNC Controller > DENVER Customized Development of Paper Cutter Controller Paper Cutter Motion Controller Control System High Efficiency

DENVER Customized Development of Paper Cutter Controller Paper Cutter Motion Controller Control System High Efficiency

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

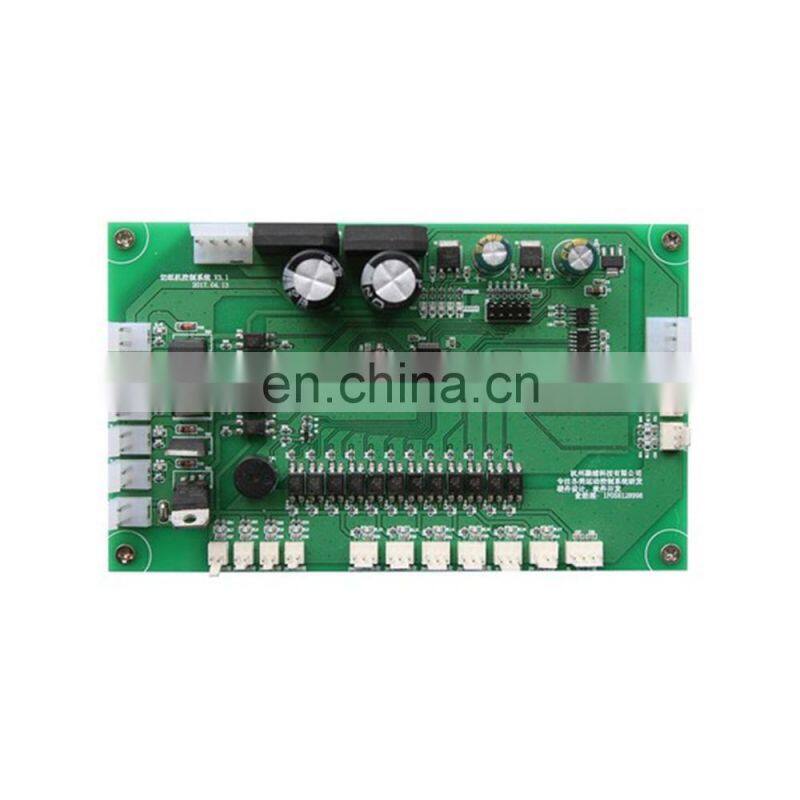

Paper cutter Motion controller

Specification

◆Advanced arm cortex M4 series control chip is adopted, and the control clock reaches 140mhz;

◆Industrial touch screen is adopted, which is stable and atmospheric;

◆Built in manual, program-controlled, equal division and other cutting modes to meet the diversified needs of customers;

◆Up to 100 groups of programmable modules, each group can store 96 groups of sizes;

◆Manual interface, real-time animation function of paper pusher, intuitive and convenient;

◆With continuous and inching paper pushing function, combined with electronic handwheel, it gives customers rich operation options;

◆High speed pulse control function, up to 100kHz and theoretical accuracy of 0.01mm;

◆High speed service response, which can customize personalized functions for customers;

◆Power driving mode: hydraulic and motor;

◆Optional suspended photoelectric and closed photoelectric.

◆Features of photoelectric accessories:

(A) With 8 channels of electric eye detection, the resolution is up to 3.1cm, and the number and resolution of electric eyes can be customized;

(B) The scanning mode is used to detect each optical eye separately, which has strong anti-interference ability and stable product;

(D) Peak detection algorithm is adopted to reduce optical eye power consumption and prolong product life;

(E) The effective distance is 2m, which is connected by aviation plug, which is convenient and stable;

(F) ABS shell is adopted for convenient installation.

Paper pushing distance	when the paper pushing function is used, the size of the book pushed outward by the equipment can be set according to the demand
Cutter depth	the cutter depth is adjustable, convenient and fast
Handwheel function	the electronic handwheel function can be disabled under the setting to avoid misoperation in a narrow space
Cumulative counting	record the number of equipment cutters to facilitate customers to maintain the equipment in time and prolong the service life of the equipment
Maximum size and minimum size	the maximum and minimum size can be set according to the equipment size
Size compensation	after the equipment is installed, accurately adjust the equipment compensation to make the paper pushing movement accurate
Pressing time	according to different hydraulic systems, the pressing time of the paper press can be adjusted to improve the working efficiency of the equipment
Language selection	Standard Chinese English bilingual, can customize the languages of all countries in the world
Fast forward speed	according to different mechanical interfaces and motor types, the maximum paper pushing speed can be set so that the paper pusher can achieve optimal control
Slow forward speed	accurately adjust the running speed of electronic handwheel to meet the needs of different customers
Screw pitch	according to different equipment structures, screw pitch can be set to facilitate customers to select accessories
Reset speed	for different structures, the equipment startup reset speed can be set to improve the accuracy of the equipment

Product function details

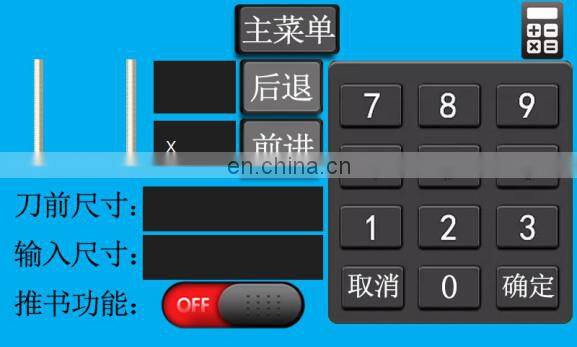

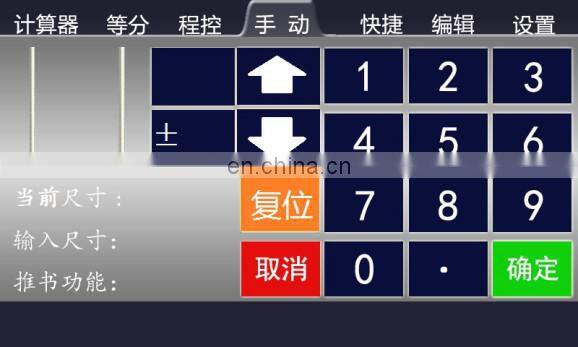

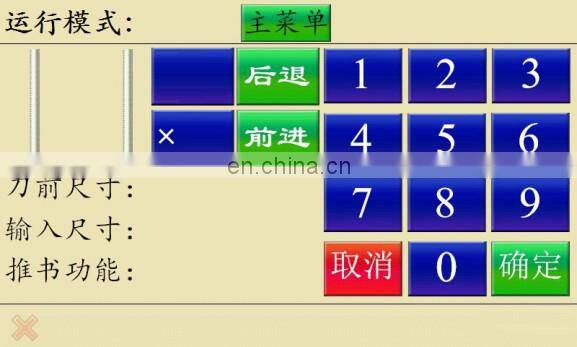

A variety of interface styles can be selected, and the operation interface can be customized according to customer needs

Windows style

Cool technology style

Bright style

Fashionable and simple style

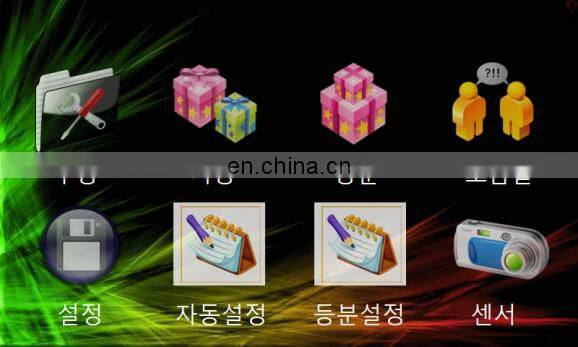

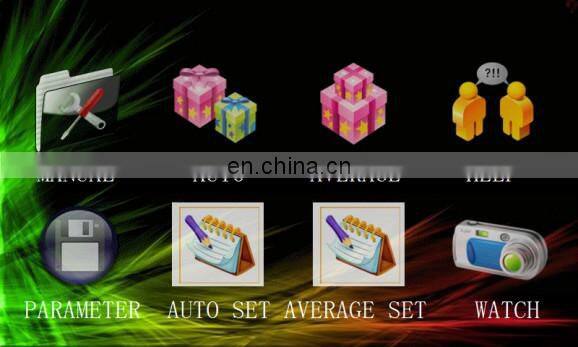

Multi language selection, standard Chinese English bilingual, parameter setting can be carried out through the setting interface, Korean and Japanese versions can be selected, and other languages can be customized

Strong adaptability, and various data can be set according to equipment characteristics:

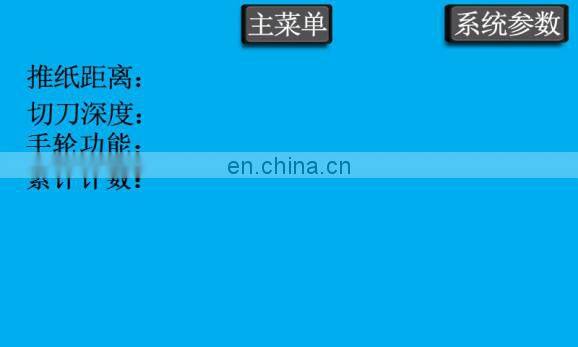

System parameter interface

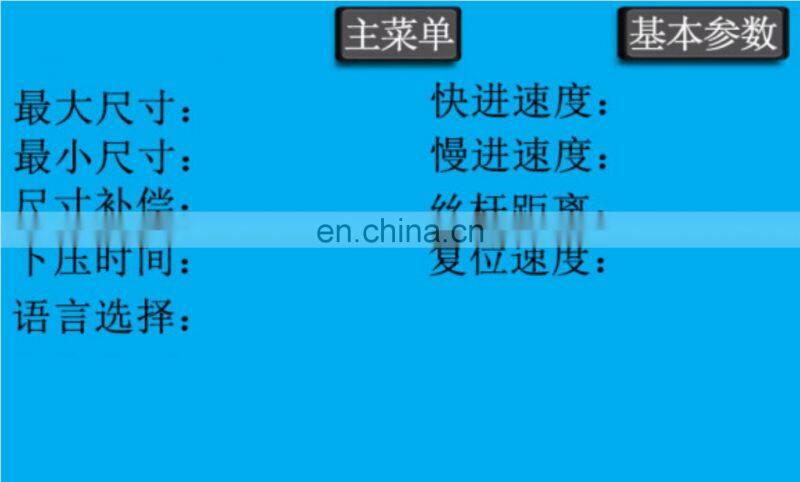

User parameter interface

Packing & Delivery

FAQ

Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
