Cheap 3-axis CNC control system kit similar to GSK CNC controller panel, with ATC + PLC CNC lathe controller

Name: Cheap 3-axis CNC control system kit similar to GSK CNC controller panel, with ATC + PLC CNC lathe controller
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Product features

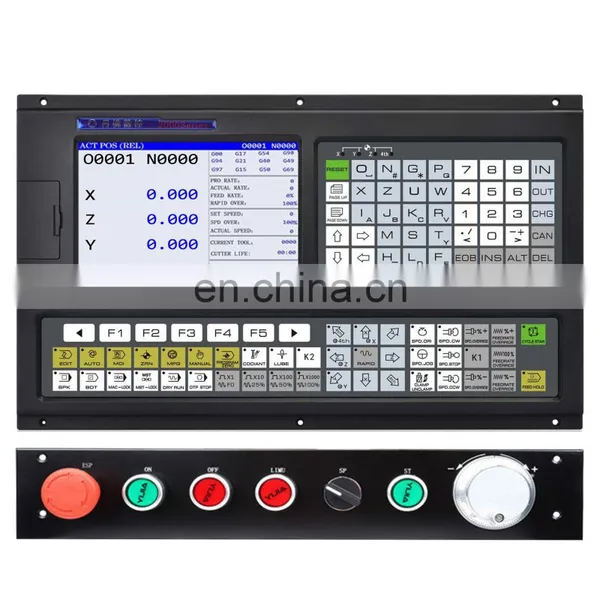

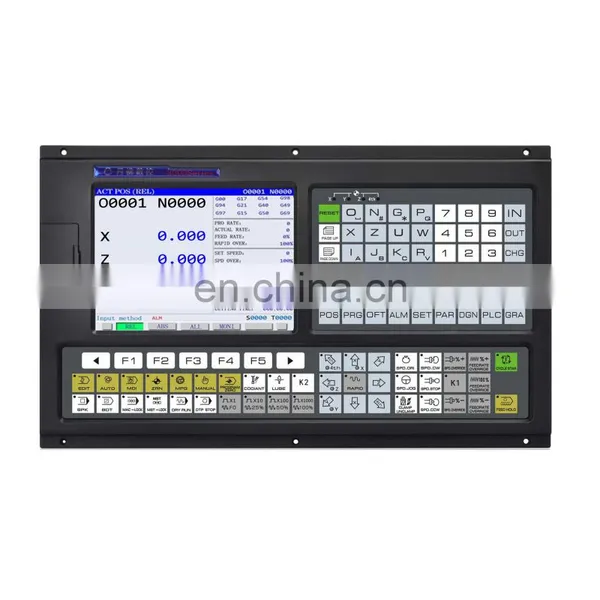

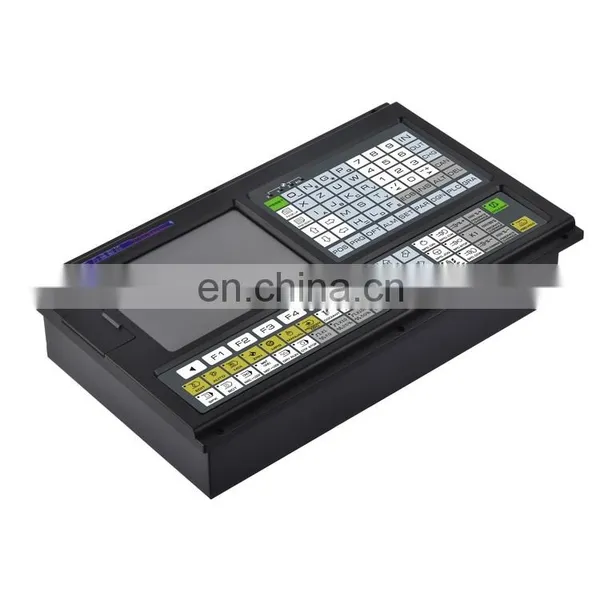

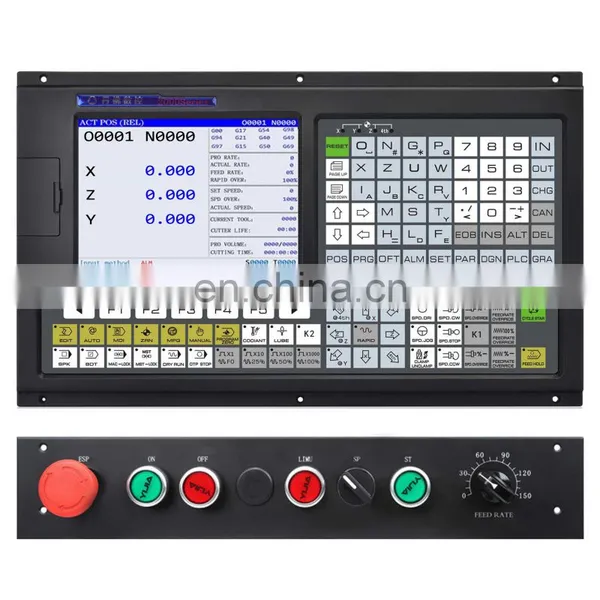

● X, Z, Y, three axis control, can be customized control axis number ● 1ms interpolation cycle, control precision 1μm ● Maximum speed 60m/min ● Adaptive servo spindle can achieve continuous spindle positioning, rigid tapping, rigid thread processing ● Built-in multi-PLC program, the current running PLC program can be selected ● Support statement macro code programming, support macro program call with parameters ● Support metric/English programming, with automatic tool alignment, automatic chamfering, tool life management functions ● Support Chinese and English display, by parameter selection ● USB interface, support U disk file operation, system configuration and software upgrade ● Two 0V ~ 10V analog voltage output, support double spindle control ● 1 way handwheel input, support handheld unit ● 36-point universal input / 36-point universal output ● Shape installation size, instruction system and GSK980TDb fully compatible

Specification parameters

Number of control shaft	Number of control axes: 3 axes (X，Z，Y)
Number of control shaft		Number of linkage axes: 3 axes
Feed shaft function	Minimum input increment: 0.001mm (0.0001inch) or 0.0001mm (0.00001inch) Optional
		Minimum instruction increment: 0.001mm (0.0001inch) or 0.0001mm (0.00001inch) Optional
		Large stroke: ±99999999 x minimum instruction increment
		Fast moving speed: maximum 60m/min
		Rapid rate: F0, 25%, 50%, 100% four levels of real-time adjustment
		Feed rate: 0 ~ 150%, a total of 16 levels of real-time adjustment
		Interpolation methods: linear interpolation, arc interpolation (support three-point arc interpolation), thread interpolation, rigid tapping
		Automatic chamfering function
Thread function	Normal thread (follow spindle)/ rigid thread
		Single head/long head male inch straight thread, taper thread and end thread, equal pitch thread and variable pitch thread
		The length, Angle and speed characteristics of thread withdrawal can be set
		Thread pitch: 0.01mm to 500mm or 0.06 teeth/inch to 2540 teeth/inch
Acceleration and deceleration function	Cutting feed: front acceleration and deceleration linear, front acceleration and deceleration S type, rear acceleration and deceleration linear, rear acceleration and deceleration exponential type
		Fast moving: front acceleration and deceleration linear, front acceleration and deceleration S, rear acceleration and deceleration linear, rear acceleration and deceleration exponential
		Thread cutting: linear, exponential optional
		The start speed, end speed and time of acceleration and deceleration are set by parameters
Main function	2 channels 0 ~ 10V analog voltage output, support dual spindle control
		1 way spindle encoder feedback, spindle encoder line number can be set (100p/r ~ 5000p/r)
		Transmission ratio between encoder and spindle :(1 ~ 255) (1 ~ 255)
		Spindle speed: can be given by S code or PLC signal, speed range 0r/min ~ 9999r/min
		Spindle ratio: 50% ~ 120%, a total of 8 grades of real-time adjustment
		Spindle constant line speed control
		Rigid tapping
Function of cutting tool	Tool length compensation
		Tool tip radius compensation (Type C)
		Tool wear compensation
		Tool life management
		Knife setting method: fixed point knife setting, trial cutting knife setting, back reference point knife setting, automatic knife setting
		Tool deviation execution mode: modify coordinate mode, tool movement mode
Precision compensation	Reverse clearance compensation
Precision compensation		Memory pitch error compensation
The PLC function	Two-stage PLC program, up to 4700 steps, level 1 program refresh cycle 8ms
		PLC program communication download
		Support PLC warning and PLC alarm
		Support multiple PLC programs (up to 20), the current running PLC program can be selected
		Basic I/O: 36 input /36 output
The man-machine interface	8.4-inch widescreen LCD with 800×480 resolution
		Display in Chinese, English and other languages
		Two dimensional tool path display
		Real time clock
Operation management	Operation mode: edit, automatic, input, machine zero back, hand wheel/single step, manual, program zero back
		Multi-level operation permission management
		Alarm log
The program to edit	Program capacity: 56MB, 400 programs (including subroutines, macroprograms)
		Edit function: program/program segment/word search, modify, delete, copy, paste
		Program format: ISO code, support statement macro code programming, support relative coordinates, absolute coordinates and mixed coordinates programming
		Program call: support macro program call with parameters, 4 levels of nested subroutines
Communications functions	RS232: parts program, parameters and other files two-way transmission, support PLC program, system software serial port upgrade
Communications functions		USB: U disk file operation, support PLC program, system software U disk upgrade
Safety features	Emergency stop
		Hardware travel limit
		Software trip check
		Data backup and recovery

Product Description

Packing & Delivery

product certification

Company Profile

Warranty and after-sales service

1.two years warranty for machine 2.We have a professional English after-sales engineer team,and supply online service 24 hours by Whatsapp,Skype, and so on. or by phone if urgently. 3.We will provide you with a detailed video tutorial to teach you how to use the machine . 4.lf you need installment support,we can arrange our engineer fly to your place to help

FAQ

Q: Do you support customized manufacturing? A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.

Q: How long is your delivery time? A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.10-20 days if customized manufacturing.

Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample with sample price.

Q: What is your terms of payment ? A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below
