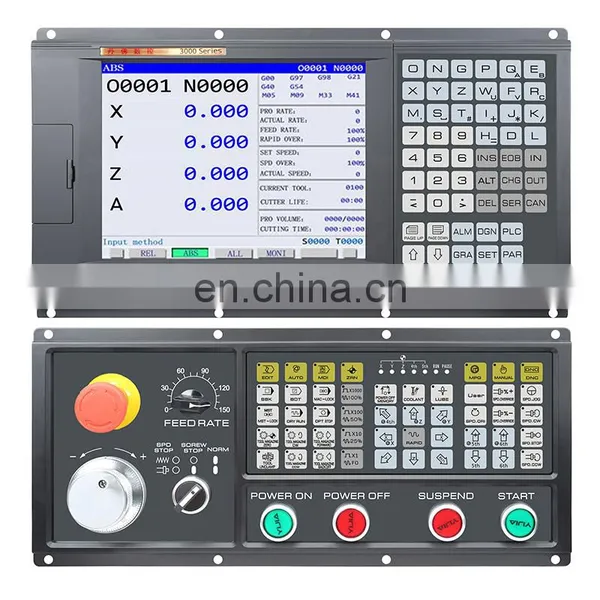

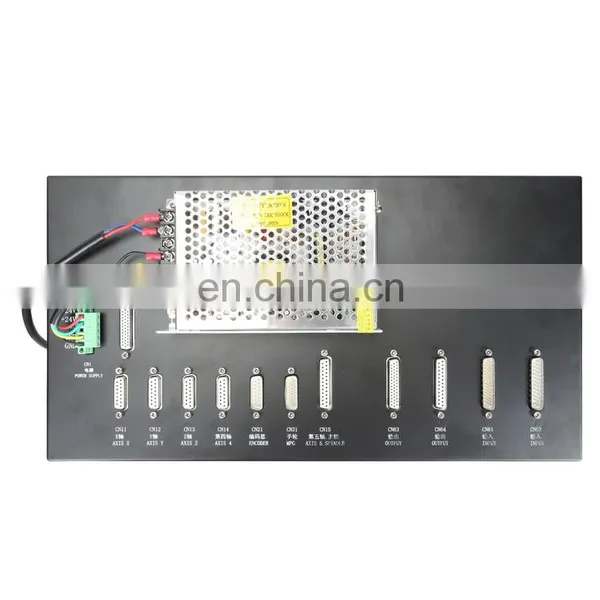

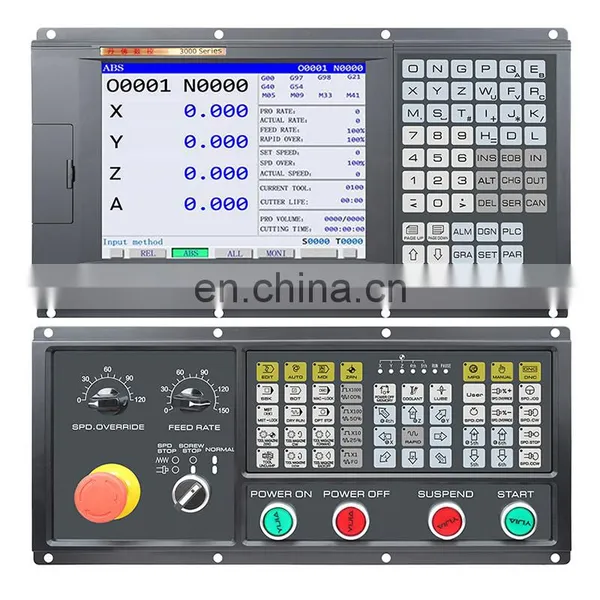

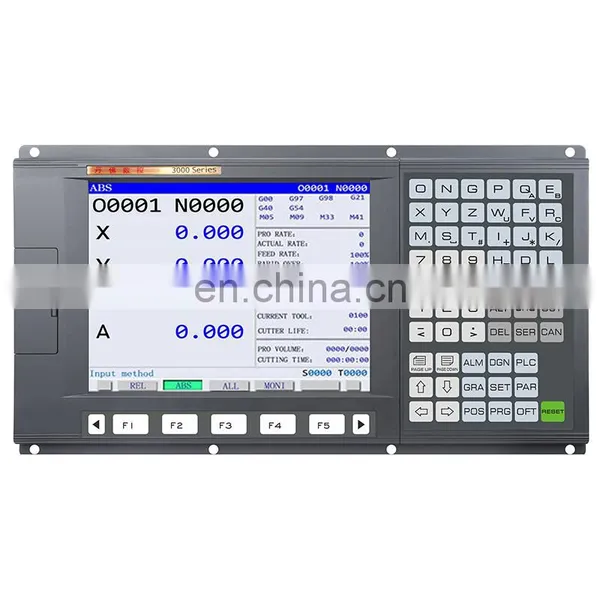

4-axis Milling Machine CNC Control System Kit Similar to GSK CNC Controller Panel With Atc+plc
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Control System 4 Axi Lathe Cnc Controller Kit Similar to GSK Atc Cnc ControllerNegotiableMOQ: 1 -
Cheap Cnc Control 4 Axi Lathe Cnc Controller Kit Similar to GSK CNC Controller Panel With Atc+plcNegotiableMOQ: 1
-
High-quality Color Screen 5-axis Lathe Control System Kit Has Plc+atc Function Similar to GSK CNC Control PanelNegotiableMOQ: 1
-
Similar to GSK CNC Control Panel 5 Axis Lathe Cnc Controller Kit With PLC + ATC FunctionNegotiableMOQ: 1
-
5-axis CNC Controller Kit Similar to GSK CNC Control System for LatheNegotiableMOQ: 1
Product features
● X, Y, Z, A 4 axis control, can be customized control axis number
● 1ms interpolation cycle, control precision 1μm
● Maximum speed 60m/min
● Adaptive servo spindle can achieve continuous spindle positioning, rigid tapping, rigid thread processing
● Built-in multi-PLC program, the current running PLC program can be selected
● Support statement macro code programming, support macro program call with parameters
● Support metric/English programming, with automatic tool alignment, automatic chamfering, tool life management functions
● Support Chinese and English display, by parameter selection
● USB interface, support U disk file operation, system configuration and software upgrade
● Two 0V ~ 10V analog voltage output, support double spindle control
● 1 way handwheel input, support handheld unit
● 36-point universal input / 36-point universal output
● Shape installation size, instruction system and GSK980TDb fully compatible
Specification parameters
Number of control shaft |
Number of control axes: 4 axes (X, Y, Z, A) |
Number of linkage axes: 4 axes |
|
Feed shaft function |
Minimum input increment: 0.001mm (0.0001inch) or 0.0001mm (0.00001inch) Optional |
Minimum instruction increment: 0.001mm (0.0001inch) or 0.0001mm (0.00001inch) Optional |
|
Large stroke: ±99999999 x minimum instruction increment |
|
Fast moving speed: maximum 60m/min |
|
Rapid rate: F0, 25%, 50%, 100% four levels of real-time adjustment |
|
Feed rate: 0 ~ 150%, a total of 16 levels of real-time adjustment |
|
Interpolation methods: linear interpolation, arc interpolation (support three-point arc interpolation), thread interpolation, rigid tapping |
|
Automatic chamfering function |
|
Thread function |
Normal thread (follow spindle)/ rigid thread |
Single head/long head male inch straight thread, taper thread and end thread, equal pitch thread and variable pitch thread |
|
The length, Angle and speed characteristics of thread withdrawal can be set |
|
Thread pitch: 0.01mm to 500mm or 0.06 teeth/inch to 2540 teeth/inch |
|
Acceleration and deceleration function |
Cutting feed: front acceleration and deceleration linear, front acceleration and deceleration S type, rear acceleration and deceleration linear, rear acceleration and deceleration exponential type |
Fast moving: front acceleration and deceleration linear, front acceleration and deceleration S, rear acceleration and deceleration linear, rear acceleration and deceleration exponential |
|
Thread cutting: linear, exponential optional |
|
The start speed, end speed and time of acceleration and deceleration are set by parameters |
|
Main function |
2 channels 0 ~ 10V analog voltage output, support dual spindle control |
1 way spindle encoder feedback, spindle encoder line number can be set (100p/r ~ 5000p/r) |
|
Transmission ratio between encoder and spindle :(1 ~ 255) (1 ~ 255) |
|
Spindle speed: can be given by S code or PLC signal, speed range 0r/min ~ 9999r/min |
|
Spindle ratio: 50% ~ 120%, a total of 8 grades of real-time adjustment |
|
Spindle constant line speed control |
|
Rigid tapping |
|
Function of cutting tool |
Tool length compensation |
Tool tip radius compensation (Type C) |
|
Tool wear compensation |
|
Tool life management |
|
Knife setting method: fixed point knife setting, trial cutting knife setting, back reference point knife setting, automatic knife setting |
|
Tool deviation execution mode: modify coordinate mode, tool movement mode |
|
Precision compensation |
Reverse clearance compensation |
Memory pitch error compensation |
|
The PLC function |
Two-stage PLC program, up to 4700 steps, level 1 program refresh cycle 8ms |
PLC program communication download |
|
Support PLC warning and PLC alarm |
|
Support multiple PLC programs (up to 20), the current running PLC program can be selected |
|
Basic I/O: 36 input /36 output |
|
The man-machine interface |
10.4-inch widescreen LCD with 800×600 resolution |
Display in Chinese, English and other languages |
|
Two dimensional tool path display |
|
Real time clock |
|
Operation management |
Operation mode: edit, automatic, input, machine zero back, hand wheel/single step, manual, program zero back |
Multi-level operation permission management |
|
Alarm log |
|
The program to edit |
Program capacity: 56MB, 400 programs (including subroutines, macroprograms) |
Edit function: program/program segment/word search, modify, delete, copy, paste |
|
Program format: ISO code, support statement macro code programming, support relative coordinates, absolute coordinates and mixed coordinates programming |
|
Program call: support macro program call with parameters, 4 levels of nested subroutines |
|
Communications functions |
RS232: parts program, parameters and other files two-way transmission, support PLC program, system software serial port upgrade |
USB: U disk file operation, support PLC program, system software U disk upgrade |
|
Safety features |
Emergency stop |
Hardware travel limit |
|
Software trip check |
|
Data backup and recovery |
G code table |
||||||
code |
Function |
code |
Function |
|||
G00 |
quickly locate |
G50 |
floating workpiece coordinate system |
|||
G01 |
Linear interpolation |
G54-G59 |
Set the coordinate system of the workpiece |
|||
G02 |
clockwise arc interpolation |
G65 |
macro code modeless call |
|||
G03 |
counterclockwise arc interpolation |
G71 |
axial rough turning cycle |
|||
G04 |
stop, quasi stop |
G72 |
radial rough car cycle |
|||
G17 |
Plane selection code |
G73 |
seals the cutting cycle |
|||
G18 |
plane selection code |
G70 |
finishing cycle |
|||
G19 |
Plane selection code |
G74 |
Axial grooving cycle |
|||
G10 |
data input mode effective |
G75 |
radial grooving cycle |
|||
G11 |
Cancel data input mode |
G76 |
Multiple thread cutting cycle |
|||
G20 |
Inch unit selection |
G80 |
rigid tapping status cancelled |
|||
G21 |
metric unit selection |
G84 |
axial rigid tapping |
|||
G28 |
automatic return machine zero |
G88 |
radial rigid tapping |
|||
G30 |
returns to the second, third and fourth reference points of the machine tool |
G90 |
axial cutting cycle |
|||
G31 |
jumper |
G92 |
thread cutting cycle |
|||
G32 |
equal pitch thread cutting |
G94 |
radial cutting cycle |
|||
G33 |
Z axis tapping cycle |
G96 |
constant line speed control |
|||
G34 |
Variable pitch thread cutting |
G97 |
cancel constant line speed control |
|||
G10 |
cancel tip radius compensation |
G98 |
per minute feed |
|||
G41 |
tip radius left compensates |
G99 |
for each turn of feed |
|||
G42 |
tool tip radius right compensation |
|||||
