Home > Products > CNC Controller > DENVER Punching control system Perforated Control system
DENVER Punching control system Perforated Control system
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
DENVER Punching equipment melt blown cloth die punching system
-
DENVER Punching control system Perforated CNC Controller
-
DENVER EtherCAT CODESYS 4-axis 6-axis Mechanical arm Stacker Electric welding machine controller
-
DENVER CNC Controller 4-axis 6-axis Mechanical arm Stacker Electric welding machine controller Control system
-
DENVER Robot controller 4-axis 6-axis Mechanical arm Stacker Electric welding machine controller
-
DENVER 4-axis 6-axis CNC Controller EtherCAT CODESYS Mechanical arm Stacker Electric welding machine controller
Product Description
Product Description
Punching control systemPunching equipment melt blown cloth die punching system
The punching tool with a diameter of more than 10 wires is supported to complete the punching of melt blown cloth abrasive tools. The punching accuracy can reach 1 wire, and the hole with a depth of 3.5mm can be completed within 1min. At present, there are customers in use. The tool diameter is 18 wires, and a single tool can drill more than 150 holes continuously.
Specification
● one circuit of 5V DC input |
● support LCD with resolution of 800 * 400 |
● support resistive and capacitive touch screens |
● support 485 interface communication and 232 interface communication |
● with large capacity external flash |
● it can store the necessary information of the customer after power failure |
● linkage of multiple or partial equipment can be realized |
● accept customization according to specific needs |

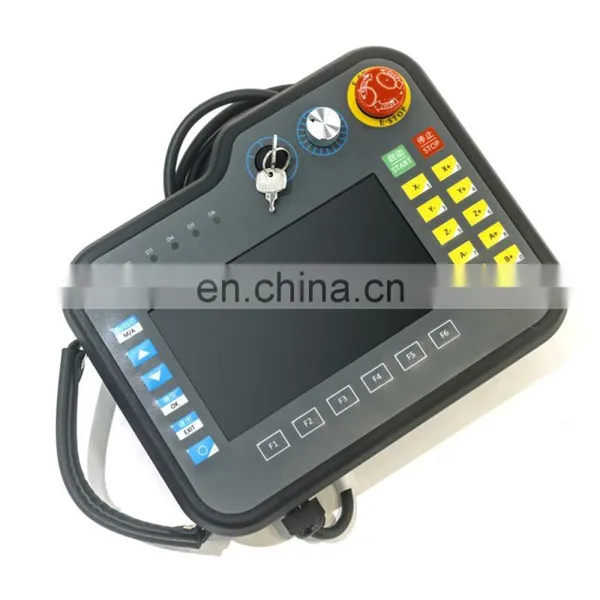

Touch operation, parameter self setting
The 7-inch touchable operation interface is adopted, and users can set various relevant parameters. By controlling the direction of the rocker, the difficulty of program editing is reduced. After the program is saved, the control command is issued, and the controller analyzes the command to complete the action according to the given function, which greatly simplifies the user's operation and control of the point drilling rig.
Node expansion, USB flash disk upgrade
CANopen bus control, a high-level protocol based on CAN-bus, can expand nodes arbitrarily to facilitate the increase and decrease of moving shaft and silo shaft, and can adapt to the batch processing of different types of products.
USB flash disk upgrade, insert USB interface to update the control board program of point drilling rig in time to realize version upgrade.

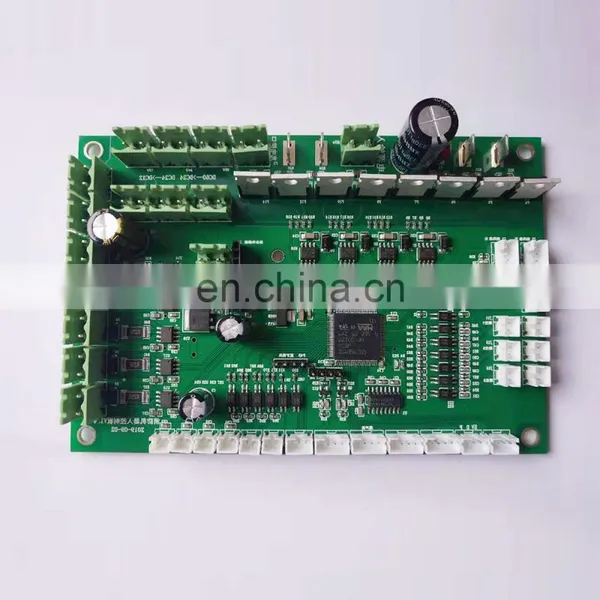

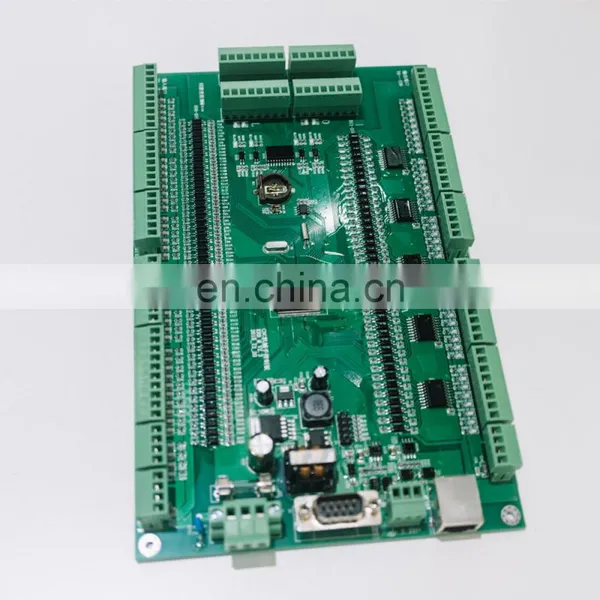

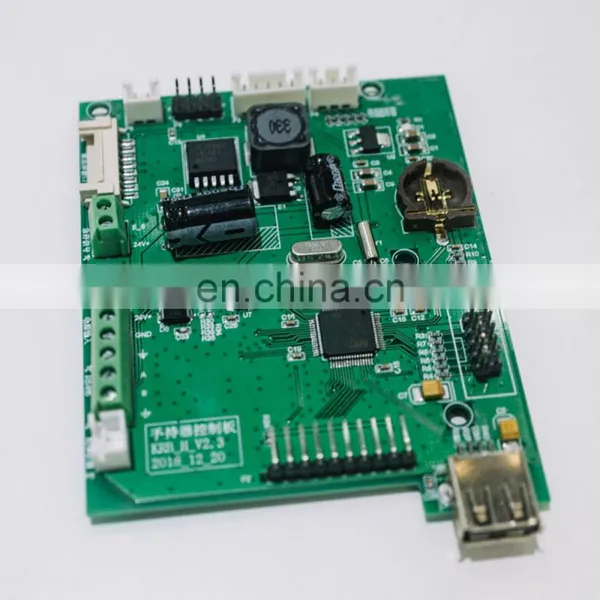

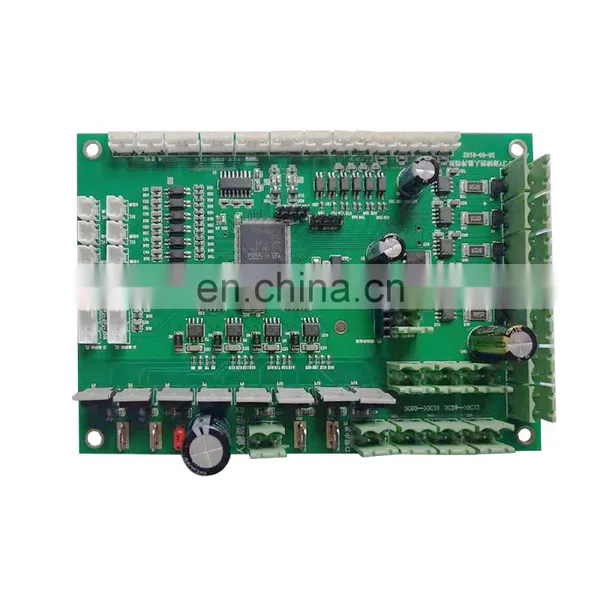

Product Physical Drawing
Packing & Delivery
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
