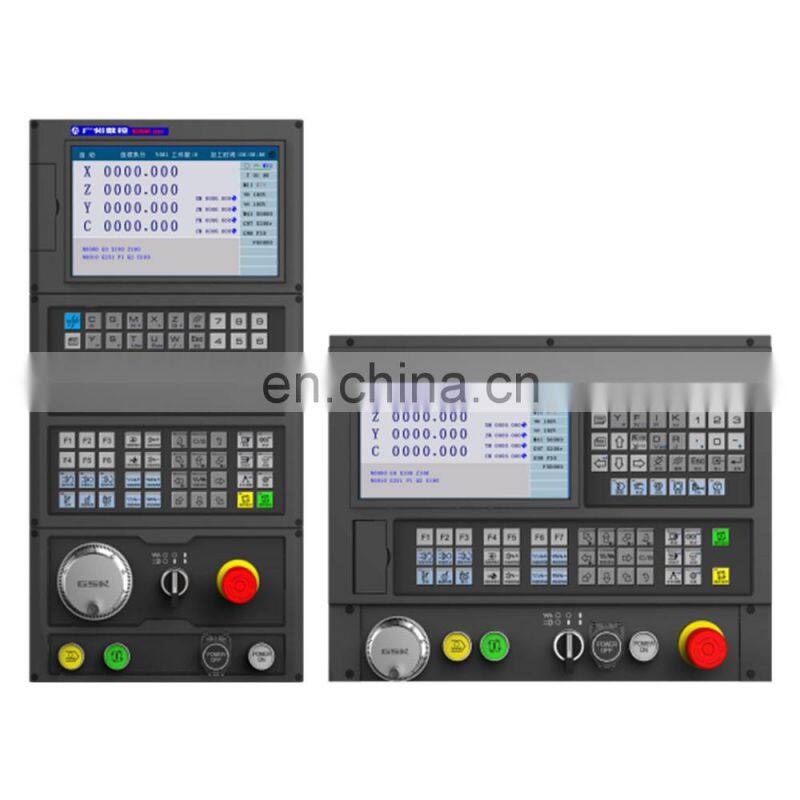

GSK-928Ti gsk CNC Controller 4 Axis cnc

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Guangzhou CNC GGSK-928Ti CNC lathe System

Guangzhou CNC has lathe CNC system, drilling and milling machine CNC system、

CNC system of machining center、CNC systems in many fields such as grinding machine CNC system.

(Be careful：For detailed specifications, models and inquiries, contact customer service for negotiation)

Specification

Motion control

Control axis: X Axis, Z Axis, Y Axis , C Axis; Simultaneous control axis (interpolation axis): 4 Axis (X, Z, Y, C)

Interpolation function: x-Axis and z-axis straight line, arc and thread interpolation, XZYC c four axis straight line linkage

Position command range: - 9999.999mm-9999.999mm; Minimum instruction unit: 0.001mm

Electronic gear: Command multiplication coefficient 1 ~ 999999, command frequency division coefficient 1 ~ 999999

Fast moving speed: up to 30000 mm / min; Fast magnification: F25%, 50%, 75% and 100% four-level real-time adjustment

Cutting feed rate: up to 15000 mm / min; Feed rate: 0 ~ 150% sixteen level real-time adjustment

Manual feed speed: 0 mm / min-1260 mm / min, 16 levels of real-time adjustment, or the feed speed can be customized immediately

Hand pulse feed: three gears of 0.001mm, 0.01mm and 0.1mm

Acceleration and deceleration: exponential acceleration and deceleration or linear acceleration and deceleration can be selected for cutting feed

G code

48 G commands, including straight line, arc, thread processing, various fixed cycles, compound cycles and groove processing;

Thread machining

It can process single head / multi head metric and British straight thread, conical thread and end face thread; Variable pitch thread;Thread tailing length, angle and speed characteristics can be set, high-speed tailing processing;

Thread pitch: 0.001mm ~ 500mm or 0.06 tooth inch ~ 25400 tooth inch, with tapping function

Spindle encoder: encoder line number, settable range: 100p / R ~ 5000pr; Transmission ratio between encoder and spindle: 1:1

Accuracy compensation

Reverse clearance compensation: 0mm ~ 10.000mm

Pitch error compensation: 300 compensation points for each axis; The data can be established by equal spacing method or inflection point method; The system performs fine linear compensation.

Tool compensation: 16 tool positions and 64 groups of tool length compensation

Tool setting mode: trial cutting tool setting and fixed-point tool setting;

Tool compensation execution method: modify coordinate to execute tool compensation and tool rest movement to execute tool compensation

M code

There are 45 basic m auxiliary function commands;

There are 25 M instructions customized by the user to realize special function control

T code

Up to 16 tool positions (T01 ~ T16), set the tool holder type parameters to select the control process of tool change; When using tool arrangement, the tool holder type is set to 0.

Spindle speed control

Speed switching value control mode: s command 4th gear direct control output range is s01-s04; Or 16 gear BCD code output range is S00-S15

Speed analog voltage control mode: s command code gives spindle speed per minute or cutting linear speed (constant linear speed control), outputs 0 V~ 10V voltage to spindle frequency converter, spindle stepless speed change, and supports 4 spindle mechanical gears M41 ~ M44

It supports the speed and position control mode switching of gs3000 servo spindle, and can realize the linkage between main glaze and Z or X axis

I / O function

I / O function diagnostic display

I / O function: 32 point input / 32 point output

Controllable spindle, chuck, tailstock, tool holder, cooling, pressure detection, external start pause, feed holding knob and other devices

Controllable tricolor lamp, hand pulse, protective door, lubrication, headbox lubrication, shift unit

Custom instruction function

M50 ~ M74 custom instructions realize special function control

Support external operation: 16 buttons, 8 knobs, 8 foot switches or system 1-8 digital keys control 8 m execution (m61-m68)

Calling custom alarm content display in M84 operation

M50 ~ M74 can observe the status of the specified I / O

You can remotely view the working mode or state switching changes of the system

Reset emergency stop call M73 / M74 command

Tool change is realized by writing user-defined instructions

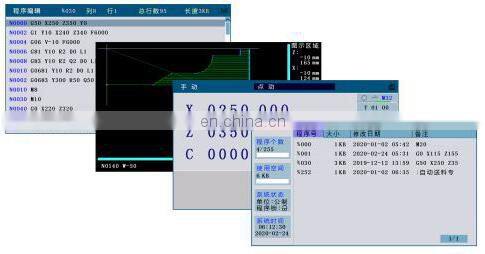

Display interface

Display: 9-inch, 1024 · 600 dot matrix, true color liquid crystal display (LCD), LED backlight

Display mode: Chinese or English display interface is set by parameters; It can display the machining path graphics in real time;

Clock display function

Program editing

Program capacity: 255 programs at most, with a total program capacity of 33MB

Editing method: full screen editing, support mixed programming of relative absolute coordinates, support program call, and support multiple nesting of subroutines

Program drawing check

signal communication

With USB and rs232485 serial port communication; CNC and USB, CNC and PC, CNC and CNC bidirectional transfer program, parameters,cutter compensation support system software RS232, USB Download and upgrade

Adaptive drive

It is only suitable for Guangzhou CNC DAD08A dual axis AC servo drive

sentence programming

Assignment statement: complete assignment, multiple arithmetic and logical operations

Conditional statement: complete conditional judgment and jump

Product features

New automatic lathe feeding control function

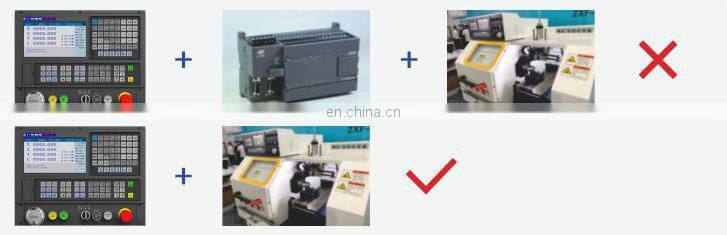

● during processing or other operations, the system can flexibly realize processing and feeding at the same time by using the new automatic feeding function. ● gsk928t system is used to cooperate with the feeding mechanism to replace the traditional PLC control feeding, effectively improving the processing efficiency and saving costs; ● 99 automatic feeding subroutines are provided for storage, and up to 16 automatic feeding subroutines can be executed at the same time ● use the M command and some macro commands to control the feeding action ● the user shall compile various feeding fault alarm contents as required.

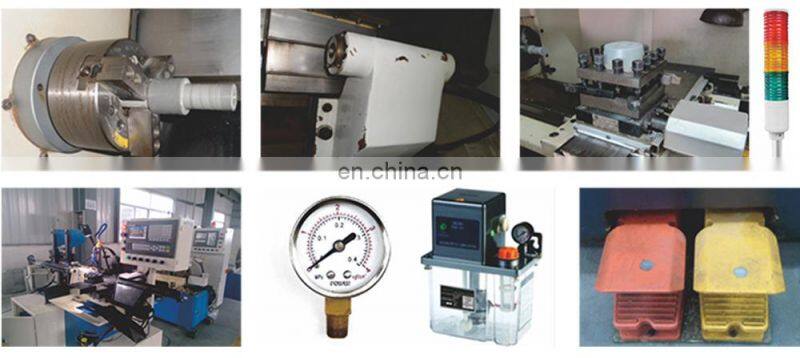

I/O (input detection / output control)

●Controllable spindle, tool holder, chuck, tailstock, cooling, pressure detection, external start pause, feed holding knob and other devices (fixed pin)

●Controllable tricolor lamp, hand pulse, protective door, lubrication, headstock lubrication, shift unit, feeding unit and other devices (pins arranged by the machine tool factory)

Simple operation

●Flexible and diverse help functions

●Full screen editing, error checking of part program in advance, simulation and drawing of motion track;

●Introduction to editing mode system instructions

●All kinds of operation are simple, safe and easy to use

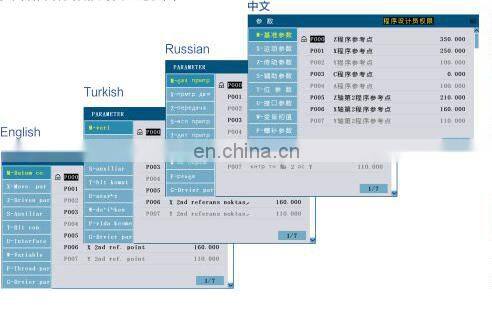

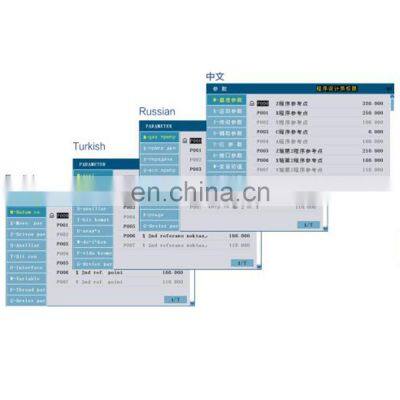

Multilingual interface conversion

●Special display interface can be designed by ourselves

Special display interface can be designed by ourselves

●The display surface can be designed to prompt the operator how to operate

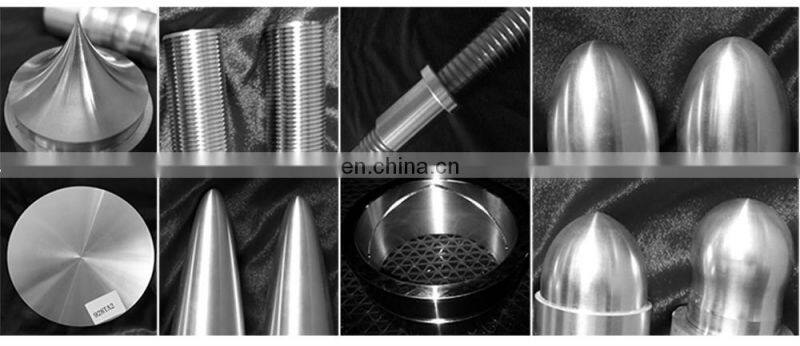

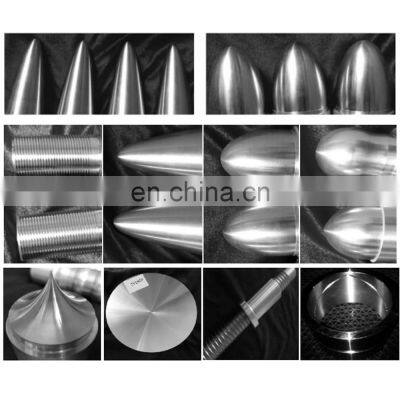

Statement programming can realize complex programming processing such as ellipse and parabola

High speed smooth interpolation of short line

●Adopt forward-looking control to realize high-speed connection and transition;

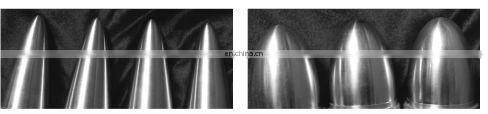

●Smooth machining of ellipse and parabola with short straight line without stun mark

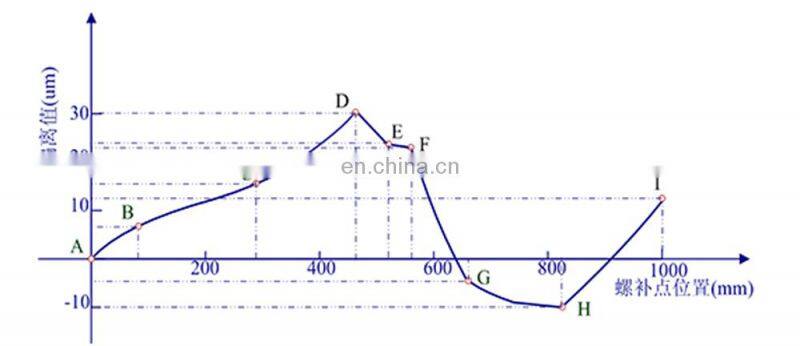

Pitch error inflection point input Fine density compensation

●Just input several groups of inflection point data on the curve to automatically carry out fine and smooth compensation!

Packing & Delivery

FAQ

Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface
and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
