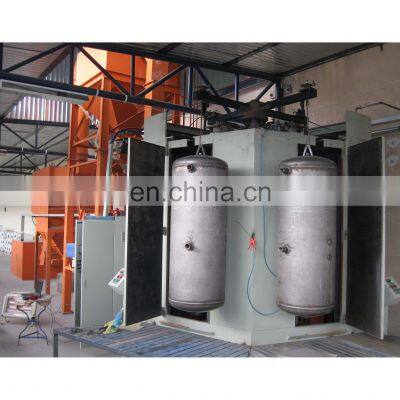

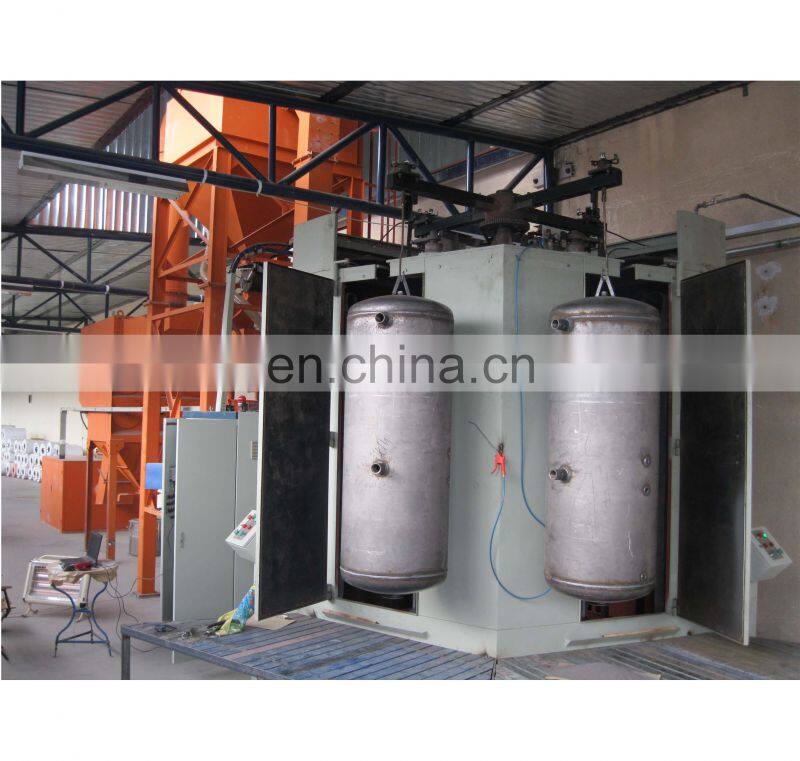

Sand Blasting Line for Enamel Water Heater Production

Shandong Zentek Energy and TechnologyCo., Ltd. , as a member of CSP Holding Group, is a professional manufacturer of production equipments and gears for both electric and solar water heaters. We have been devoting ourselves to customized design and engineering, manufacturing, machinery upgrading and production line improving for customers from all over the world.

The machineries we manufacture include fully and semi-automatic solar/electric water heater inner tank production line and outer tank production line, press machine, welding machine, foaming line and enameling line etc..

Our products have been exported to over 20 countries, such as India, Europe, Egypt, U.A.E., Mexico, Brazil etc.. Our customers include A.O. Smith and Havells in India, Artel in Uzbekistan and so on. Especially the line for Uzbekistan, it was the first complete line exported from China ever. We are looking forward to the cooperation with partners worldwide.

 1.For the workpiece size and type:
Inner Length: 350-1400mm
Single interior diameter: Ø300- Ø480mm
2.Production capacity: approximately 80 per / hour / 1 station
3.Studio dimensions: length 4500 × width 1500 × height 3100mm (subject to the actual design)
4.Power: 380V / 50Hz
5.Rated Power ≤28kwkw / units (excluding compressor power)
6.Use compressed air supply pressure: 0.5-0.7Mpa; gas flow rate: 22m3 / min
7.Rust rating: Sa2.5 level (GB8923-88)
8.Nozzle diameter and quantity: three-hole nozzle, 4 / Taiwan
9.Suitable grit Category: Grit
10.Suitable grit particle size: 0.5-1.20mm
11.Grit automatic recovery, sorting, recycling
12.Sandblasting Operation: Hanging chain automatic operation + artificial sand
13.Operating workers: 2 / unit

1. Q: What servicesare availabe?

    A:  Services we could offer: product design, machine production, installation&debugging, local production guidance, spare parts supply etc.

2. Q: What is your payment term?

     A: 30% prepaid, 60% paid before loading, 10% paid after installation and debugging at customer's plant.

3. Q: How long will machines be delivered?

     A: The time depends on how many sets of machines you require. 20 days to 5 months.

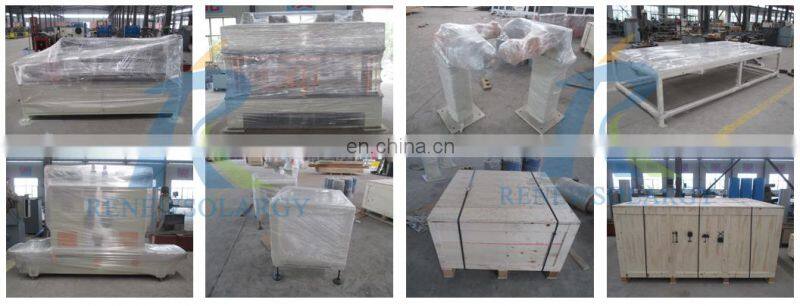

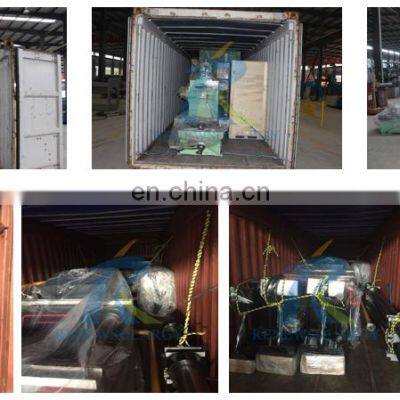

4. Q: How will the machines be packaged?

    A:  Normally machines will be covered with film and fastened in the container. But package could be customed, like steel frame, wooden boxes etc..

5. Q: How long will the machines be guaranteed?

    A:  One year.

6. Q: How long is the lifespan of machines?

    A:  15-20 years.

7. Q: Which companies have you supplied your machines to?

    A:  Sunrain, Linuo, Sangle, Himin, Haier, A.O. Smith, Havells in India, Supreme in India, Artel in Uzbekistan etc..
