Help CenterNote: We provide Custom Design service. The size of working chamber, the blast gun quantity can be made as customer’s requirements. The machine type can be chosen from tumble type, roller type, conveyor type etc.
Home > Industrial Equipment & Components > Cleaning Machine > Sandblaster > Tumble Type Conveyor Rubber Belt Type Sand Blaster Shot Blasting Machine
Tumble Type Conveyor Rubber Belt Type Sand Blaster Shot Blasting Machine
US$ 5500 - 7000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
fengwei
Place of Origin:
China
Model Number:
Q324
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
30 days
Related Products
-
Tumble Type Conveyor Rubber Belt Type Sand Blaster Shot Blasting MachineUS$ 5500 - 7000MOQ: 1 Set -
Q3110 Tumble Type Shot Blasting MachineUS$ 1,000 - 7,000MOQ: 1 Set
-
Tumbling Type Tumble Air TrackUS$ 1 - 1,999MOQ: 1 Piece
-
Tumble Type Shot Blasting MachineUS$ 5,000 - 300,000MOQ: 1 Set
-
Tumble Type Shot Cleaning Machine/EquipmentUS$ 1 - 30,000MOQ: 1 Set
Brand Name
fengwei
Place of Origin
China
Model Number
Q324
Use
Burnishing
Certification
Other, none
After-sales Service Provided
No overseas service provided
Dimension(L*W*H)
1800mm*1950mm*2700mm
Feature
Critical Cleaning / Residue Free
Fuel
Electric
Condition
New
Power(W)
1.5kw
Material
Metal / Coil
Industry Used
Other, Iron and Steel Chemical Industry
Cleaning Type
Clean-In-Place (CIP)
Cleaning Process
Other, Steel Shot Rust Removal

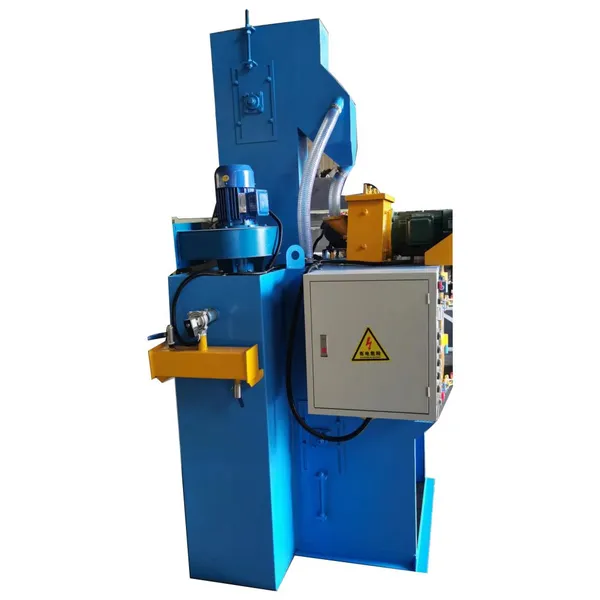

Tumble Belt Shot Blasting Machine
The tumble shot blasting machine is suitable for surface cleaning and strengthening of medium or small size castings, forge pieces and a variety of hardware.
Tumble belt shot blast clean-up machine has advantages of high cleaning efficiency, advanced design, rational construction, low-power.
Here are its basic parameters and detailed specifications:
| Model NO: | Q324 |
| Cleaning Room Dimensions (Length x Width x Height): | 2000×1980×2800mm |
| Workpiece Size for Cleaning: | Φ1000×1500mm |
| Workpiece Weight for Cleaning: | 1000kg |
| Ventilation Volume: | 10500 cubic meters/h |
| Total Mechanical Power: | 36.55kw (excluding dust collector) |
| Maximum Overall Dimensions of the Machine (Length x Width x Height): | 4133×3318×4675mm |
| Total Weight of the Machine: | 6000kg |
This equipment utilizes a drum-type rubber conveyor belt as the cleaning worktable, employing high-speed shot blasting to clean the surfaces of workpieces. The ventilation system within the cleaning room effectively removes dust generated during the cleaning process. This machine is suitable for various industrial applications, particularly for cleaning the surfaces of castings, forgings, steel plates, and other workpieces to enhance their surface quality.
Tumble Belt Shot Blasting Machine Features
1. Uniquelly designed with double-disc impeller for high-flow and high-speed projectile throwing, it is directly driven by a reliable electric motor with long service life.

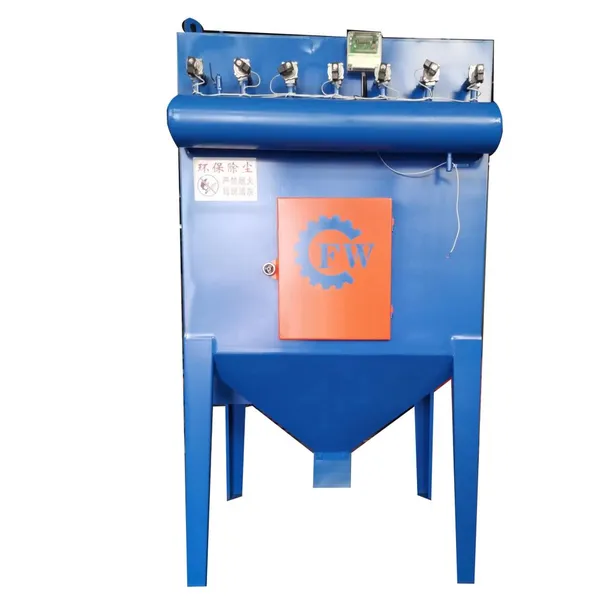

2. Configured a pulse filter cartridge for dust removal system, features high removal efficiency and requires easy installation and maintenance;
3. The shot blasting chamber is steel and plate riveted welding structure and laid with alloy guard plates, all peform wear-resistant, impact-resistant and long lifespan.
4. Equipped with safety protection devices to ensure safe and effective work.
5. Each shot blasting machine can be customized and manufactured depending on the size, weight and daily number of parts to be blasted.
6. It can be equipped with automatic filling and automatic emptying systems.
The working principle:
Shot blasting machine is powered by electromechanical not by compressed air, it works through a high-speed rotating impeller to throw out steel shots in high speed and high flow, thus creates more forceful impact to surface. In the tumble belt blaster, the parts are placed in a half cylinder shaped volume constituted of three drums and a large disc and moved by swiveling through the belt motion. At the same time, turbines located at appropriate angles blasts steel particles and cleans part surfaces.
