Carbon Steel Water Heater Cover Making Power Press Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Water Heater Straight Seam Welding MachineNegotiableMOQ: 1 -
Carbon Steel Electric Water Heater Production Line Decoiling Line, DecoilerNegotiableMOQ: 1
-
Electric Water Heater Making Machine, Roll Forming MachineNegotiableMOQ: 1
-
Deep Drawing Hydraulic Press/Carbon Steel Products Drawing Hydraulic Machine for Electric Water Heater CoverNegotiableMOQ: 1
-
Horizontal Automatic Two-end Inward Bending Machine for PPGI Outer Tank Production of Electric Water HeaterNegotiableMOQ: 1

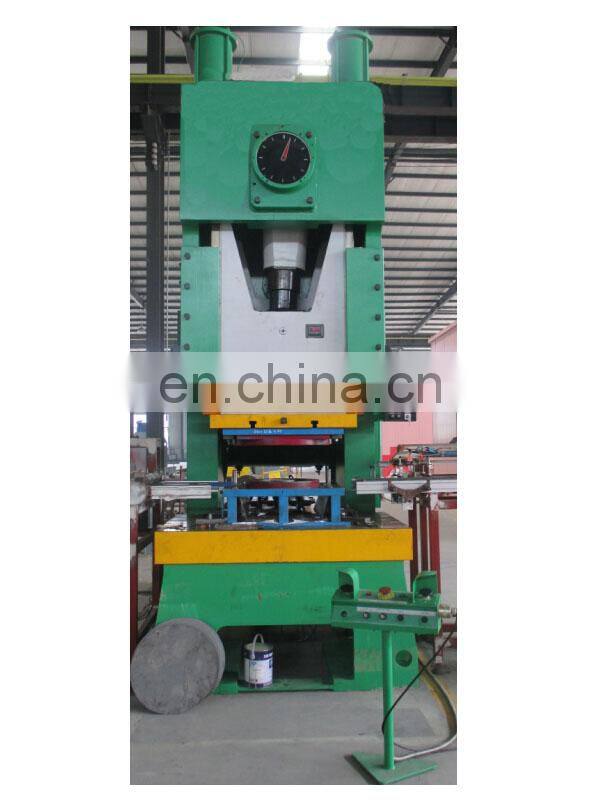

Carbon steel water heater cover making power press machine for the Belt and Road
Product Description
| Power Press Machine Parameter | |||
| Item | Unit | Parameter | |
| Rated force | kn | 3150 | |
| Rated travel distance | mm | 7 | |
| Slider tarvel distance | mm | 280 | |
| Speed | min | 30 | |
| Max.die setup height | mm | 500 | |
| Die setup height adjust range | mm | 12 | |
| Distance of slider to body | mm | 450 | |
| Column gap | mm | 980 | |
| Slider bottom size | Left-right | mm | 950 |
| Front-back | mm | 700 | |
| Die handle hole size | Diameter | mm | 70 |
| Depth | mm | 100 | |
| Work table size | Left-right | mm | 1540 |
| Front-back | mm | 880 | |
| Thickness | mm | 190 | |
| Material cuttong hole size | mm | 200 | |
| Work table to ground distance | mm | 1000 | |
| Foundation bolt gap | Front-back | mm | 2150 |
| Left-right | mm | 1500 | |
| Main motor power | kw | 30 | |
| Outside dimension | Front-back | mm | 2880 |
| Left-right | mm | 1750 | |
| Height | mm | 3920 | |
| Weight (approximately) | kg | 26800 | |

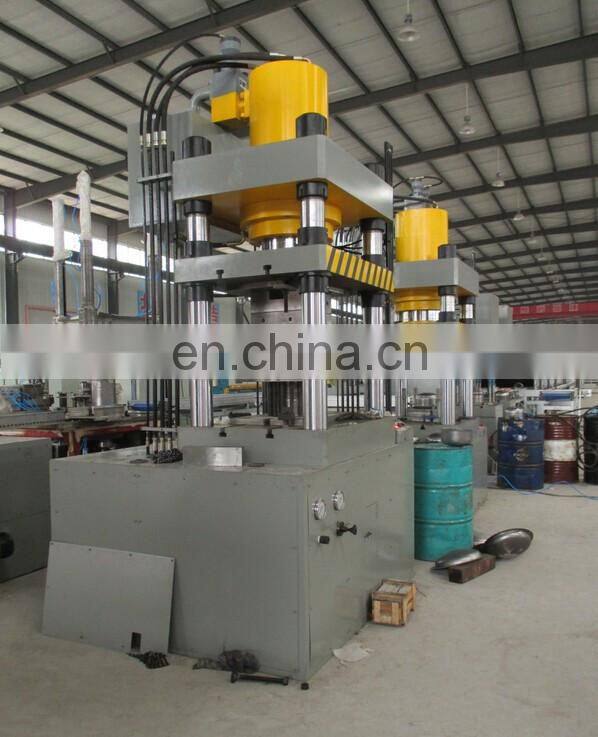

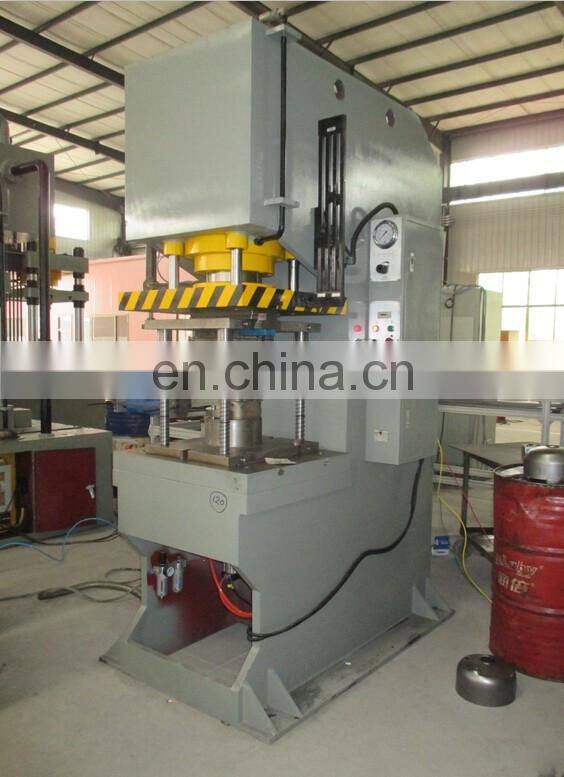

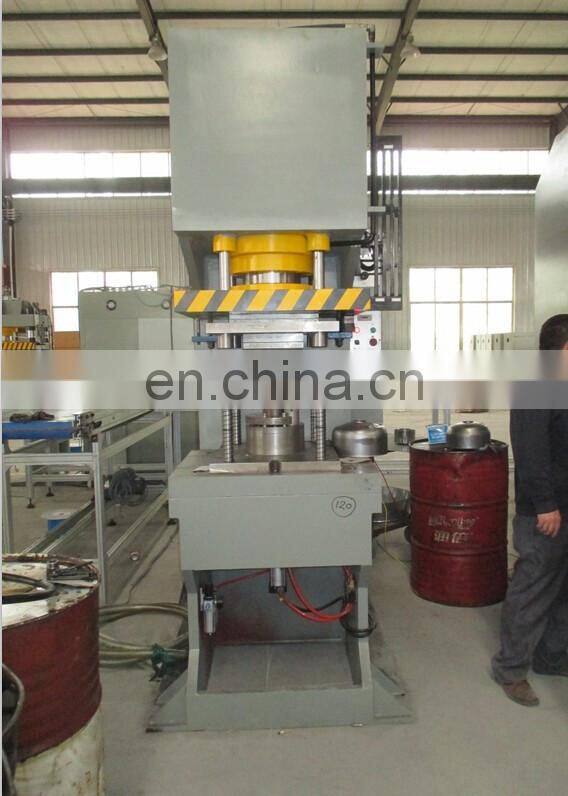

Other Presses We Could Supply for Electric Water Heater Cover Manufacturing:

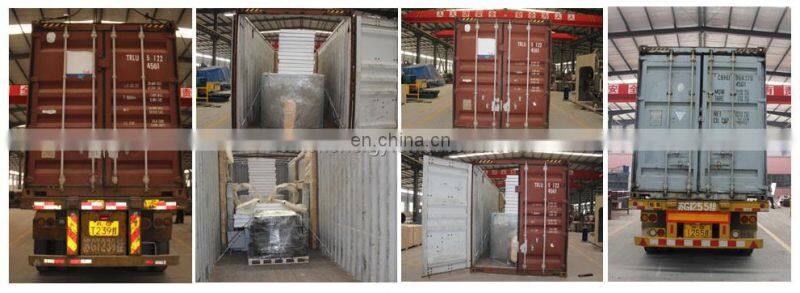

Packaging & Shipping

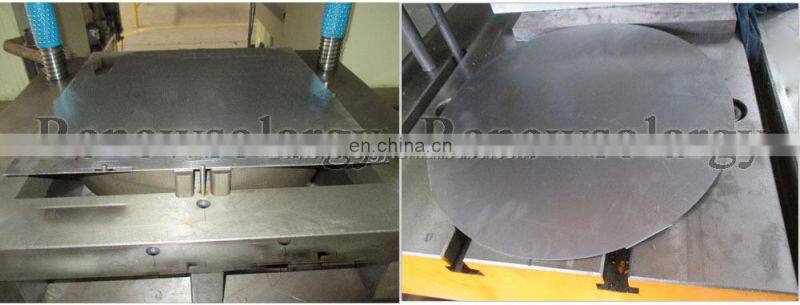

Processing Center
Our Services
1. Technical support
2. 30 years experience
3. Oversea service
4. 12month free warranty
FAQ
- Does engineer could help install overseas?
YES. But the cost on customer side
- Do you offer free-warranty
YES. One year
- If the color of machinery be changed.
YES. As you like
- What's the mex. thickness it processed?
0.8mm, could customized 1.2mm too
