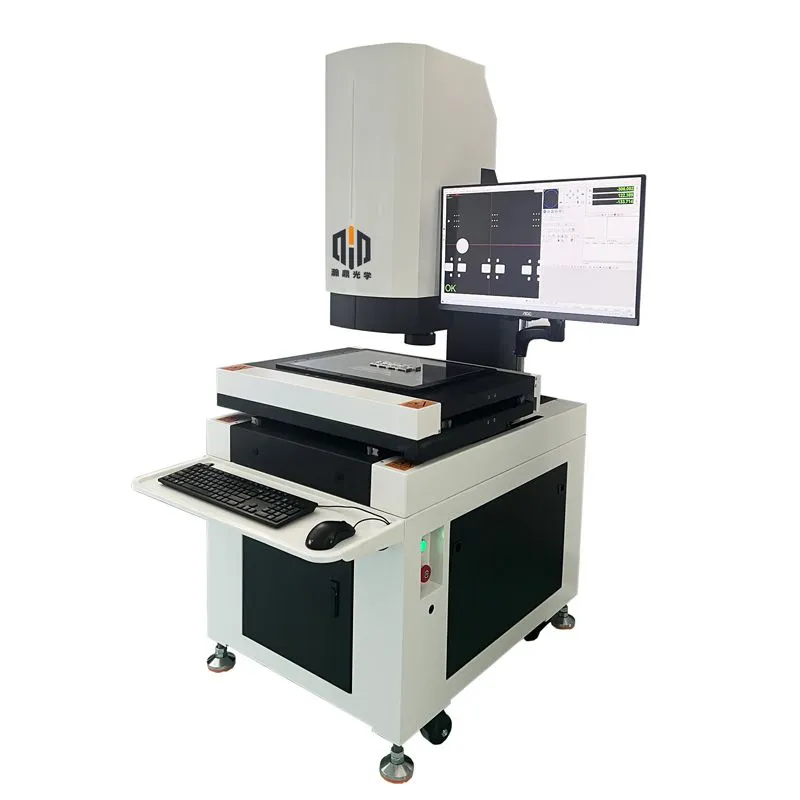

Help CenterHD-432DA Dual Visual Field Automatic Video Measuring Machine
Related Products
-
High Quality HD-322H Non-contact Fully-automatic Video Measuring MachineUS$ 75000 - 79000MOQ: 1 Set -
2022 Factory Price HD-322E Multi-sensor Video Measuring Systems ManufacturerUS$ 65000 - 68000MOQ: 1 Set
-
Best Buy HD-432DA Automatic Video Measurement MachineUS$ 160000 - 168000MOQ: 1 Set
-
2022 Newest Factory HD-322E Automatic Vision Measuring SystemsUS$ 65000 - 68000MOQ: 1 Set
-
China Supplier HD-432DA Fully-automatic Video Measuring MachineUS$ 160000 - 168000MOQ: 1 Set
Model | HD-432DA | HD-542DA | HD-652DA |
X/Y/Z range | Large field of view： 400×300×200 Small field of view： 300×300×200 | Large field of view： 500×400×200 Small field of view： 400×400×200 | Large field of view： 600×500×200 Small field of view： 500×500×200 |
Overall dimensions | 700×1130×1662mm | 860×1222×1662mm | 1026×1543×1680mm |
Bearing capacity of glass countertop | 30Kg | 40Kg | 40Kg |
CCD | Large field of view, 20M pixel digital camera；Small field of view, 16M pixel digital camera | ||
Lens | Large field of view: 0.16X double telecentric lens Small field of view: 0.7-4.5X automatic zoom lens | ||
Software | HD- CNC 3D | ||
Power supply | 220V+10%,50/60Hz | ||
Optical scale resolution | Open linear scale 0.0005mm | ||
X/Y Measurement accuracy | Large field of view:(5+L/200) um Small field of view: (2.8+L/200)um | ||
Repeatability accuracy | 2um | ||
Using the environment | Temperature: 20-25℃ Humidity: 50%-60% | ||
PC | Philips 24”monitor, i5+8G+512G | ||
