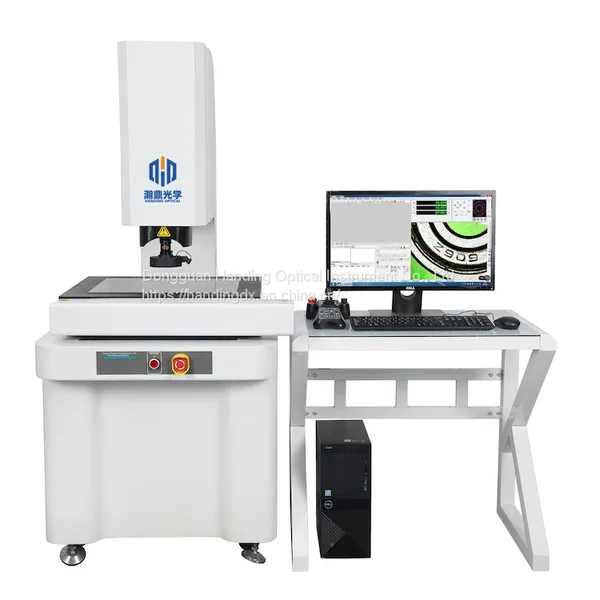

High Precision Video Measurement Machine HD-432EYT Automatic Video Measurement Machine Suppliers

X/Y/Z measurement range

300×200×200mm

400×300×200mm

500×400×200mm

XYZ axis base

 Grade 00 green marble

Machine base

 Grade 00 green marble

Bearing capacity of glass countertop

25kg

Transmission type

High precision linear guide

UWC servo motor

Optical scale resolution

0.001mm

X/Y linear measurement accuracy (μm)

≤2.5+L/100

Repetition accuracy (μm)

≤2.5

Camera

 TEO HD color industrial camera

Lens

Auto zoom lens, optical magnification: 0.7X-4.5X,

image magnification: 30X-200X

Software function and  Image system

Image software: it can measure points, lines, circles, arcs, angles, distances, ellipses, rectangles, continuous curves, tilt corrections, plane corrections, and origin setting. The measurement results display the tolerance value, roundness, straightness, position and perpendicularity. The degree of parallelism can be directly exported and imported into Dxf, Word, Excel, and Spc files for editing which is suitable for batch testing for customer report programming. At the same time, part of and the entire product can be photographed and scanned, and the size and image of the entire product can be recorded and archived, then the dimensional error marked on the picture is clear at a glance.

Image card: SDK2000 chip image transmission system, with clear image and stable transmission.

Illumination system

Continuously adjustable LED light (Surface illumination +contour illumination), with lower heating value and long service life

Overall dimension（L*W*H）

1100×700×1650mm

1350×900×1650mm

1600×1100×1650mm

Weight（kg）

200kg

240kg

290kg

Power supply

AC220V/50HZ　AC110V/60HZ

Computer

Customized computer host

Display

Philips 24 inches

Warranty

1 year warranty for the whole machine

Switching power supply

Mingwei MW 12V/24V
