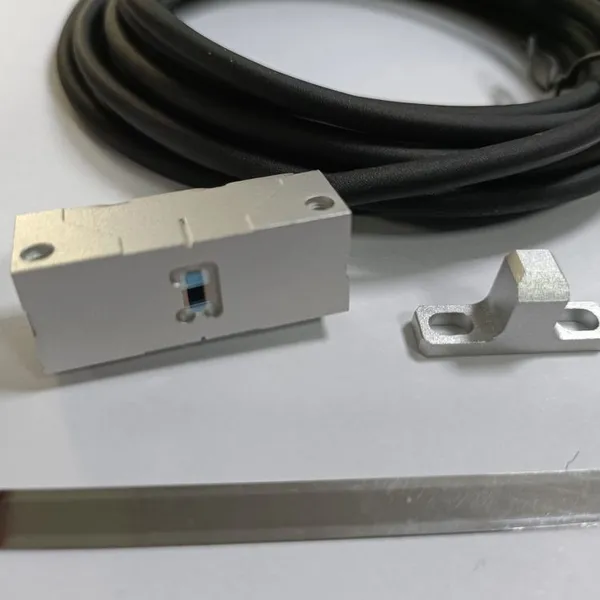

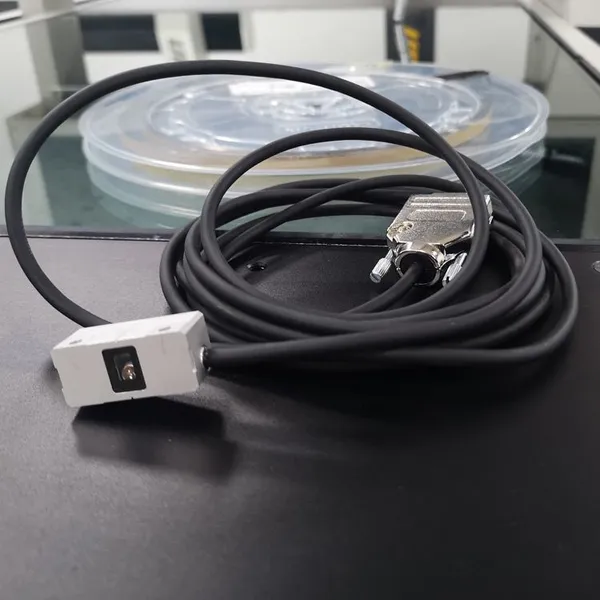

Help CenterLS40 Incremental Linear Encoder & Optical Linear Encoder & Linear Absolute Encoders
Related Products
-
Factory Price LS40 Linear Rotary Encoder Incremental Linear EncoderCNY 900 - 980MOQ: 10 Sets -
2022 Good Price LS40 Linear Absolute Encoders Optical Linear EncoderCNY 900 - 980MOQ: 10 Sets
-
Incremental Linear Encoder & Optical Linear Encoder & High Precision Linear EncoderCNY 1300 - 1580MOQ: 10 Sets
-
PI20 Incremental Angle Encoder & Ring Encoder & High Precision Angle EncoderCNY 1800 - 5000MOQ: 10 Sets
-
Reflective Linear Encoder & Optical Encoder & EncodersCNY 880 - 950MOQ: 10 Sets
Readhead Specifications | |
Dimensions |
L 32mm × W 12mm × H 10.6mm |
Grating sensor |
40μm |
Weight |
Readhead:7.1g cable:18g/m |
Power |
5V±10% 230mA |
Output signal |
Differential TTL, origin signal |
Connector |
D-sub 15 Pin Male D-sub 9 Pin Male |
Resolusion |
0.5μm/1μm |
Electronic subdivision error |
|
Maximum read speed |
4.5m/s |
Reference origin |
Magnetic sensor on the side of the readhead |
Unidirectional repeatability |
1.5μm in a single direction |
Specifications of steel tapes | |
Dimensions |
W 6mm × H 0.1mm |
The thickness of the adhesive |
W 5mm × H 0.1mm |
Line-space |
40μm |
Parameters of the cable | |
Outer diameter of the cable |
3.4mm±0.2mm |
Bending times |
Bending times 20 million times and bending radius greater than 25mm |
Environmental parameters | |
Storage temperature |
-20℃ to 70℃ |
Operating temperature |
0℃ to 70℃ |
Vibration level |
55Hz to2000Hz,Maximum 100m/s² 3 axes |
Protection class |
IP40 |
