Home > Instruments & Meters > Test Instrument > Test Machine > Low Price Telephone Cable Tracker Network Cable Tester 0-3m Underground Exploration
Low Price Telephone Cable Tracker Network Cable Tester 0-3m Underground Exploration
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2014
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OEM Insulation Ground Continuity Digital Earth Resistance TesterNegotiableMOQ: 1 -
True RMS Data Holding Backlight Circuit Analyzer Leakage Current TesterNegotiableMOQ: 1
-
AC12A/15A/20A Circuit Analyzer Solve Faulty or Incorrectly Wired AFCIsNegotiableMOQ: 1
-
Electronical Cable Tester/Wire Tracker Advance Cable Locator Cable TesterNegotiableMOQ: 1
-
HT-6818 Multi-functional Cable Fault Location Cable Network Tester Wire Detector Wire FinderNegotiableMOQ: 1

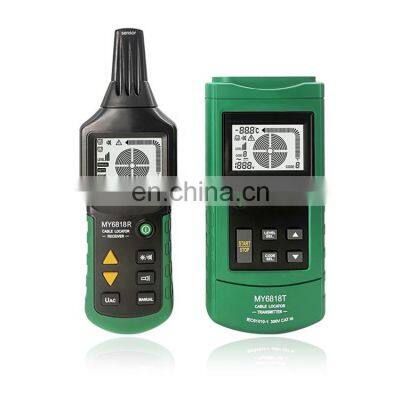

MY6818--advanced cable locator
won the U.S.EC&M Testing and
Positioning equipment 2013 Annual Award
the specifications
| Technical Parameter of Receiver | Technical Parameters of Transmitter | ||
| Depth of Tracking | The Depth of Tracking Depends on the Material and Specific Applications | Output Signal | 125kHz |
| Cable | Single pole application:about 0~2m | External Voltage | DC12~400V AC12~400V(50~60Hz)±2.5% |
| Locating | Dual pole application:about 0~0.5m | Fuse | F0.5A 1000V |
| Mode | Single loop line:Up to 2.5m | MIN Current | about 31mA |
| MIN Current | About 32mA | MAX Current | about 115mA |
| MAX Current | About 89mA | In Work | 0~40ºC,with max relative humidity of 80% |
| In Work | 0~40ºC,with max relative humidity of 80% | In Storage | -20~60ºC,with max relative humidity of 80% |
| In Storage | -20~60ºC,with max relative humidity of 80% | Altitude | <2000m |
| Altitude | <2000m | Product Size | 190mm*89mm*42.5/7.48"*3.5"*1.67" |
| product size | 241.5mm*78mm*38.5mm/9.5"*3"*1.5" | Product Weight | 420g/0.92lb |
| product weight | 350g/0.77lb | Power Supply | 1*9V 6F22 Battery |
| power supply | 6*1.5V AAA Battery | ||
company
note
-Do we support OEM or ODM?
-Do we have a cheap price?
-Are our products high quality products?
-Do we have a good team?
-Does our product support global after-sales service?
-Are our products certified?
every answer is "YES"
