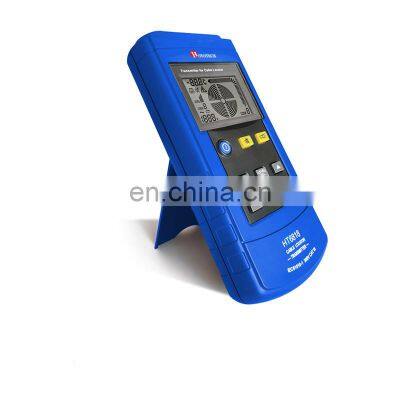

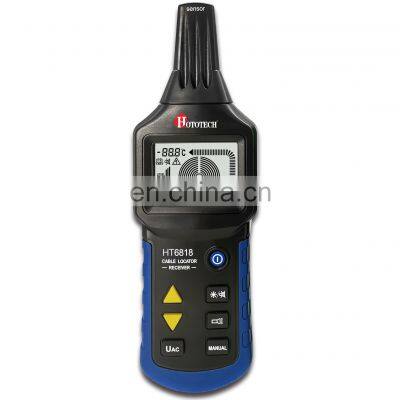

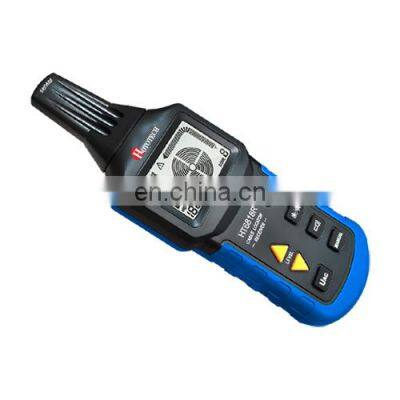

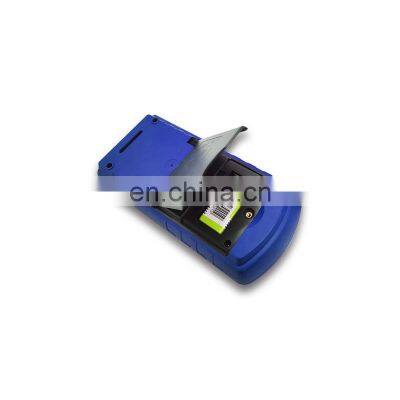

HT-6818 Multi-functional Cable Fault Location Cable Network Tester Wire Detector Wire Finder
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2014
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HT6818 Cable and Pipe Locators Underground Cable Fault LocatorNegotiableMOQ: 1 -
HT6818 Multi-functional Cable Fault Location Cable Network Tester Wire Detector Wire FinderNegotiableMOQ: 1
-
Popular and Practical Cable and Pipe Locators Underground Cable Fault LocatorNegotiableMOQ: 1
-
Hot Sale High Quality Cheap Laser Point Non Contact Industrial Temperature GunNegotiableMOQ: 1
-
HT650 High Quality Cheap Laser Point Non Contact Industrial Temperature GunNegotiableMOQ: 1
MY6818 Cable fault location
Professional cable locator
The cable detector is suitable for communication cable construction, power cable construction, building pipeline construction, communication cable and power supply line and electric heating line maintenance
| Detects and traces wires buried in walls and floors, up to 6.5feet (2m) deep, as well as in plastic conduit, cable shield and computer cables |
| Traces energized wires and locates breakers without interrupting power |
| Traces de-energized wires (continuity and grounded wire) and pinpoints shorts and ground faults |
| Traces de-energized open (broken or disconnected) wires and locates the point where the wire is broken |
| Includes a clamp on attachment for injecting a signal into wires when bare wire access isn't available |
| Does not interfere with sensitive electronic equipment, such as in hospitals and data centers |
multifunction:
1.self-checking function
2.Measure 12~400V AC/DC voltage
3.Display the signal and display it on the receiver
4.The back is designed to accommodate the support stand.
the specifications
| Technical Parameter of Receiver | Technical Parameters of Transmitter | ||
| Depth of Tracking | The Depth of Tracking Depends on the Material and Specific Applications | Output Signal | 125kHz |
| Cable | Single pole application:about 0~2m | External Voltage | DC12~400V AC12~400V(50~60Hz)±2.5% |
| Locating | Dual pole application:about 0~0.5m | Fuse | F0.5A 1000V |
| Mode | Single loop line:Up to 2.5m | MIN Current | about 31mA |
| MIN Current | About 32mA | MAX Current | about 115mA |
| MAX Current | About 89mA | In Work | 0~40ºC,with max relative humidity of 80% |
| In Work | 0~40ºC,with max relative humidity of 80% | In Storage | -20~60ºC,with max relative humidity of 80% |
| In Storage | -20~60ºC,with max relative humidity of 80% | Altitude | <2000m |
| Altitude | <2000m | Product Size | 190mm*89mm*42.5/7.48"*3.5"*1.67" |
| product size | 241.5mm*78mm*38.5mm/9.5"*3"*1.5" | Product Weight | 420g/0.92lb |
| product weight | 350g/0.77lb | Power Supply | 1*9V 6F22 Battery |
| power supply | 6*1.5V AAA Battery | ||
