Elemental Spectrometer Metal Analyzer for Metal Analysis Spectrometers Price
US$ 19000 - 25000
MOQ: 1 Set
Key Specifications
Get Latest Price
brand name:
HST
place of origin:
Shandong, China
customized support:
OEM, ODM, OBM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-9800 Advanced Technology Spectrometer Metal Testing for Metal AnalysisUS$ 87473.75MOQ: 1 Set -
HST-2002DE Automatic Ignition Furnace Infrared LECO Carbon Sulfur AnalyzerUS$ 41987.40 - 48985.30MOQ: 1 Set
-
HST CCD Spark Optical Emission Spectrometer Used in Low Alloy SteelUS$ 181875.43 - 209867.03MOQ: 1 Set
-
HST Full Digital Optical Emission Spectrometer Spectroscope SpectroanalyzerUS$ 202239.31 - 209937.00MOQ: 1 Set
-
HST 9800 Optical Emission Spectrometer for Non Ferrous Metal Alloy AnalysisUS$ 1000 - 2000MOQ: 1 Set
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM, OBM
power
Other
warranty
1 year
model number
HST
Product name:
Spectrometer Metal Analyzer
Focal Length:
400nm
Wavelength Range:
130nm-800nm
Certificate
CE ISO
Power consumption:
Excitation:750W/Stand by:100W
Argon quality:
99.999%, Argon pressure>4Mpa
Argon consumption:
5L/min during spark mode
Interface
Ethernet data transmission based on DM9000A
Size
650mm(L)*860mm*1200mm(H)
Certification
CE ISO
Elemental Analyzers Spectrometer Metal Analyzer for Metal Analysis Spectrometers Price
Technology Parameters
|
Item
|
Index
|
Index
|
||
|
Focal Length
|
400mm
|
|||
|
Wavelength range
|
130nm-800nm
|
|||
|
Detector
|
High resolution CCD Multi detectors
|
|||
|
Degree of vacuum
|
Auto control within 6-20 pa
|
|||
|
Pixel resolution
|
30pm
|
|||
|
Grating line
|
2400m1/mm
|
|||
|
First order spectral line dispersion rare
|
1.2nm/mm
|
|||
|
Average resolution ratio
|
10pm/pixel
|
|||
Application and features
The most advanced Arc/Spark-OES with Ultimate Performance for Metal Analysis. It uses full-digital technology to replace bulky photomultiplier tube (PMT) simulation technology and in the lead of international spectrometer technology. The adoption of vacuum optical chamber design, full-digital excitation light source, advanced CCD detectors, and high-speed data readout system equips the device with high properties, ultra-low limit of detection (LOD), long-term stability and repeatability. Its analytical precision reaches the world leading level. It is one of the major devices that applies to quality control, material brand recognition, material research and development in the metallic manufacturing, processing and smelting industry. This analyzer sets a new standard for R&D and process/quality control.

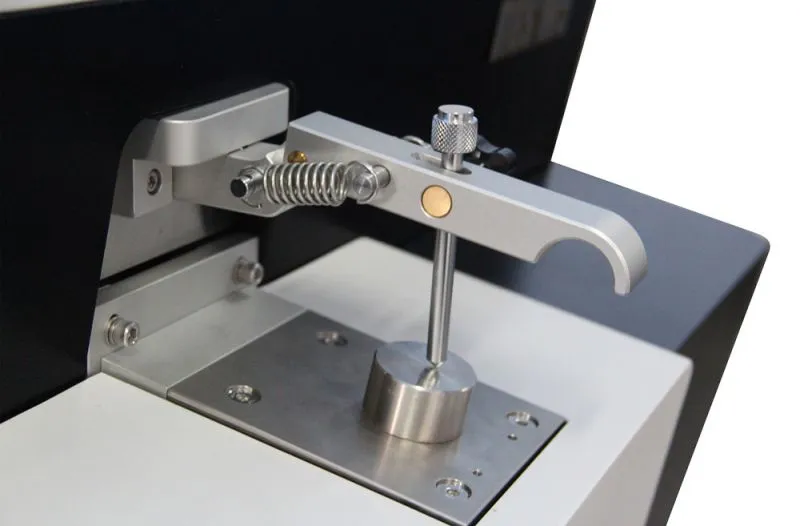

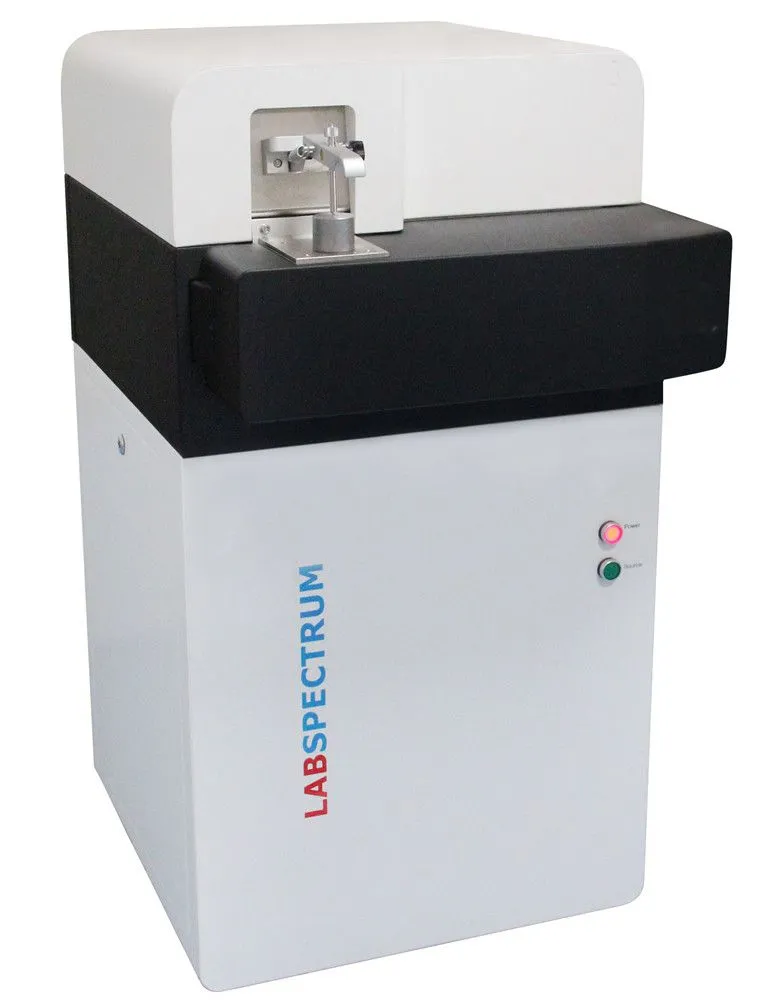

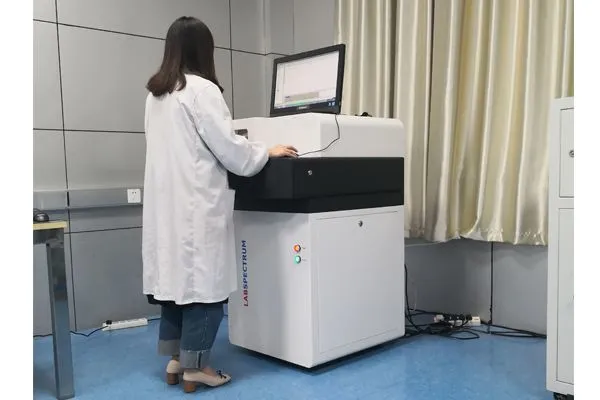

Detailed Image
