Product Description

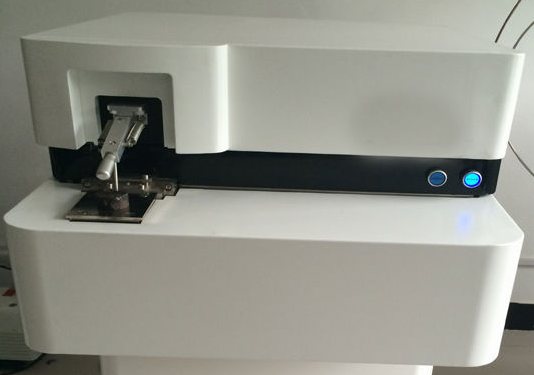

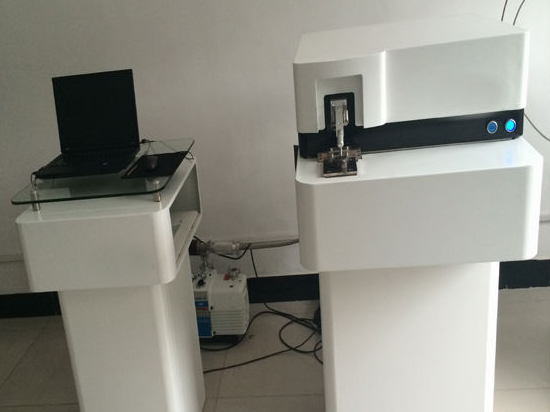

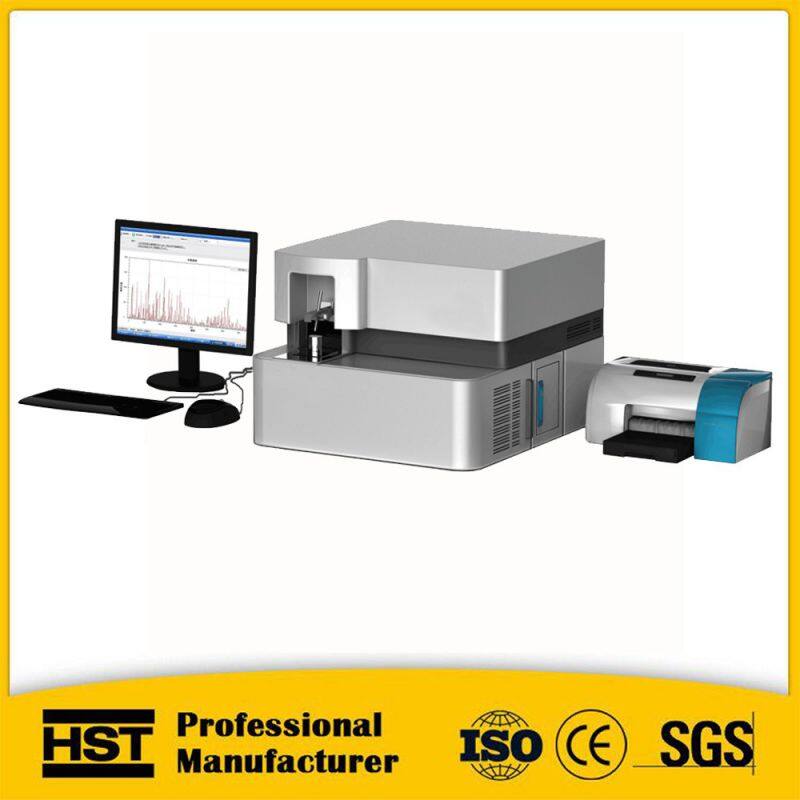

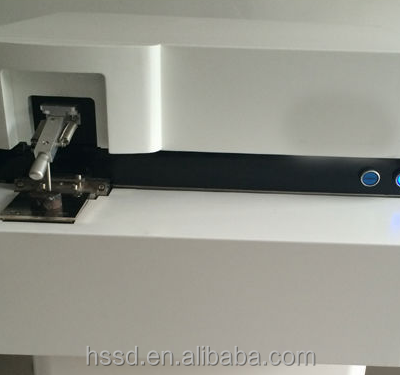

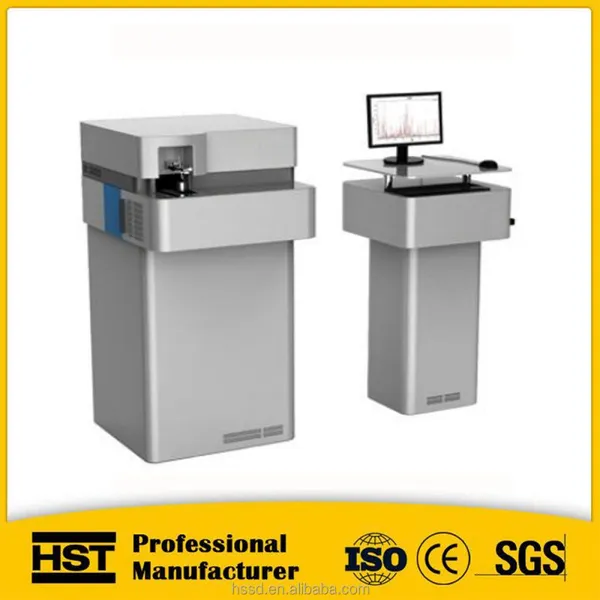

HST-9800 advanced technology spectrometer metal testing for metal analysis
1. The elements can be tested including trace amounts of carbon (C), phosphorus (P), sulfur (S) element, suitable for a variety of metal substrates, such as: iron, aluminum, copper, nickel, chromium-based, titanium-based, magnesium-based, zinc-based, tin-based and lead-based. Full Spectrum technology elemental analysis covering the entire range of channel elements, also can choose the element according to customer's requirements.
2. Fast analysis speed, it can finish measured all elemental of all channels. Analysis for different materials, by setting the pre-burning time and marking the instrument to achieve the best results in the shortest time analysis.

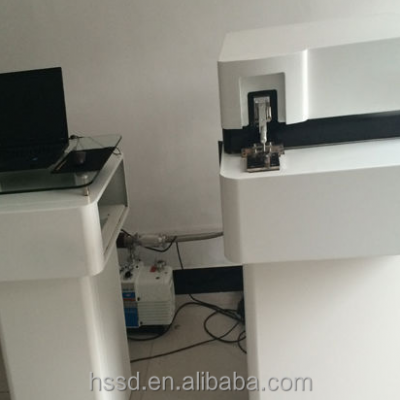

HST-9800 advanced technology spectrometer metal testing for metal analysis
HST-9800 advanced technology spectrometer metal testing for metal analysis
HST-9800 advanced technology spectrometer metal testing for metal analysis
HST-9800 advanced technology spectrometer metal testing for metal analysis

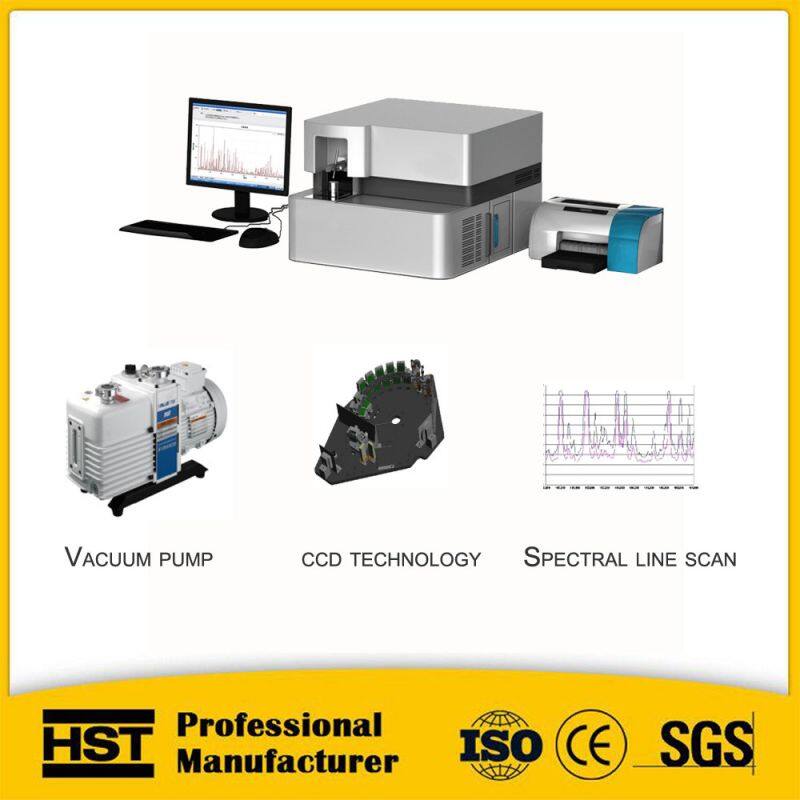

optical system
|
|
optical configuation |
structure the full spectrum of vacuum type optical system
|
Light room temperature
|
Automatic control constant temperature:35℃±0.5℃
|
wavelength coverage |
160-800nm
|
Grating focal length
|
350 mm
|
Grating groove
|
3600 l/mm
|
Level 1 spectral dispersion rate
|
1.2 nm/mm
|
detector
|
Many high performance linear array CCD
|
The average resolution
|
10pm/pixel
|
SparkStand |
|
Air
|
Strong argon type
|
Strong argon type
|
Stimulated for 3 to 5 l/min, when the standby: no need to standby traffic
|
electrode
|
Tungsten material injection electrode technology
|
purge
|
Click the purge function
|
compensation
|
The thermal deformation compensation design
|
analytical gap
|

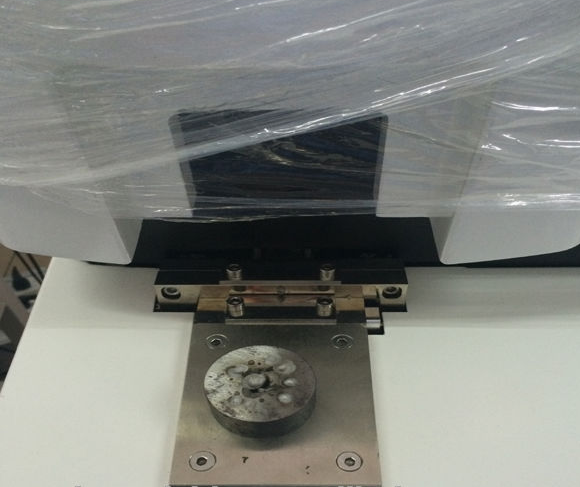

Sample analysis clearance:4mm
|
excitation light source
|
|
Type
|
HEPS Digital solid-state lighting
|
frequency
|
100-1000Hz
|
discharge current
|
1-80A
|
speciale vaardigheid
|
Discharge parameters optimization design
|
pre-burning
|
High-energy precombustion technology
|
data collection system
|
|
processor
|
High-end ARM processor, high speed data synchronous acquisition processing
|
Port
|
Based on the Ethernet data transmission of DM9000A
|
The power and environmental requirements
|
|
Input
|
220VAC 50Hz
|
Power
|
Analysis of maximum 700 w, 40 w standby mode
|
operating temperature
|
10-30℃ The temperature range (temperature variation is not greater than 5 ℃ / h)
|
operating humidity
|
20-80%
|
Size and weight
|
|
Size
|
700*830*1230 mm
|
Weight
|
120Kg
|
HST-9800 advanced technology spectrometer metal testing for metal analysis
HST-9800 advanced technology spectrometer metal testing for metal analysis
Standard polywood package, or according to customers' requirement.
One year guarantee of the whole machine
24 hours techonical support by e-mail
calling or door-to-door service
Please contact Sunny: Whatsapp/line/tel: +86-15589960023 Skype: jessica-hssd
HST-9800 advanced technology spectrometer metal testing for metal analysis
