Home > Instruments & Meters > Optical Lens & Instrument > Spectrometer > Lab-Grade HST-OES9000 Spectrometer | Ultra-Low LOD, Stable Analysis for Cu, Mg, Zn, Sn, Pb | Customizable Curves
Lab-Grade HST-OES9000 Spectrometer | Ultra-Low LOD, Stable Analysis for Cu, Mg, Zn, Sn, Pb | Customizable Curves
US$ 16500 - 25000
MOQ: 1 Set
Key Specifications
Get Latest Price
Spectral Bandwidth:
1.2nm/mm
type:
Fluorescence Spectrophotometer
Wavelength Resolution:
165~589nm (Extendable)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-OES9000 All-Digital Spectrometer | Replace PMT With CCD Tech | Multi-Element Metal Testing SolutionUS$ 16500 - 25000MOQ: 1 Set -
Industrial Metal OES Spectrometer | Reliable Data for Foundry, Metallurgy | Custom Base ConfigurationsUS$ 16500 - 25000MOQ: 1 Set
-
Next-Gen Digital OES Analyzer | Multi-Element Detection Spark Spectrometer for Non-Ferrous & Ferrous Metals | ISO StandardsUS$ 16500 - 25000MOQ: 1 Set
-
HST-JX5 Handheld X-ray Fluorescence Spectrometer X-ray Fluorescence Spectrometer Alloy Element SpectrometerUS$ 15300 - 17000MOQ: 1 Set
-
HST-20FT FTIR Spectrometer Fourier Transform Far-infrared SpectrometerUS$ 22000 - 23200MOQ: 1 Set
Spectral Bandwidth
1.2nm/mm
type
Fluorescence Spectrophotometer
Wavelength Resolution
165~589nm (Extendable)
brand name
HST
place of origin
Shandong, China
customized support
OEM
warranty
1 year
wavelength repeatability
10pm/pixel
weight
120kg
Focal Length
400mm
Wavelength range
165~589nm (Extendable)
Detector
High resolution CCD Multi detectors
Degree of vacuum
Auto control within 6-20 pa
Pixel resolution
30pm
Grating line
2400m1/mm
Wavelength Range
160-800mm
Type
Digital arc and spark source
Spark frequency
100-1000HZ
Discharge current
1-400A
Product Description
Application :
HST-OES9000 is Full Range of Solutions for the Entire Metals Industry. It use full-digital technology to replace bulky photo multiplier tube (PMT) simulation technology and keep pace with international spectrometer technology. The adoption of vacuum optical chamber design, full-digital excitation light source, advanced CCD detectors, and high-speed data readout system equips the device with high properties, ultra-low limit of detection (LOD), long-term stability and repeatability. The analytical precision can meet the requirements of laboratory standard, the analytical date is stable and reliable. Widely used in Metallurgy, casting, machinery processing and other industries incoming and outgoing product quality control.
Technical Parameter
Item |
Index |
||
Optical System
|
Focal Length |
400mm |
|
Wavelength range |
165~589nm (Extendable) |
||
Detector |
High resolution CCD Multi detectors |
||
Degree of vacuum |
Auto control within 6-20 pa |
||
Pixel resolution |
30pm |
||
Grating line |
2400m1/mm |
||
Full spectrum |
|||
Light room temperature is controlled automatically |
|||
Spark Source
|
Type |
Digital arc and spark source |
|
Spark frequency |
100-1000HZ |
||
Discharge current |
1-400A |
||
Ignition voltage |
>15000V |
||
Spark Stand
|
Electrode |
Tungsten electrode technology |
|
Make up |
Thermal deformation self-compensation design |
||
Argon flushed with minimal consumption of Argon |
|||
Spray discharge electrode technology |
|||
Adjustable electrode technology |
|||
Others
|
Measurable elements |
Fe,Al,Cu,Ni,Ti,Co,Zn,Sn,Mg,Pb etc |
|
Dimension |
800mm(L)*700mm(W)*470mm(H) |
||
weight |
About 100kg |
||
Storage temperature |
0℃-45℃ |
||
Operating temperature |
10℃-35℃, 23±2℃ is recommended |
||
Power |
AC220V/50Hz(Customized) |
||
Company Profile

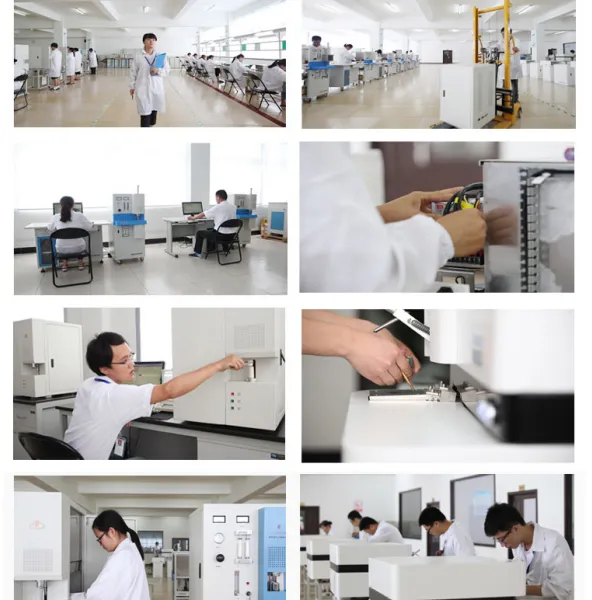

Customer Photos
