High Quality Optical Emission Spectrometers Arc/Spark-OES for Carbon Steel Emission Spectrometers HST-OES9000 for Lab Test
US$ 16600 - 25000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
≤±1%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality HST-OES9000 Optical Emission Spectrometers (Arc/Spark-OES) for Carbon SteelUS$ 16600 - 25000MOQ: 1 Set -
HST Optical Emission Spectrometers (Arc/Spark-OES) for Carbon Steel High Quality HST-OES9000US$ 16500 - 25000MOQ: 1 Set
-
HST-OES9000 Optical Emission Spectrometers (Arc/Spark-OES)US$ 16500 - 25000MOQ: 1 Set
-
Advanced Arc/Spark OES Spectrometer | CCD Detector & Vacuum Optics for Metallurgy, Casting & Metal ProcessingUS$ 16500 - 25000MOQ: 1 Set
-
Lab-Grade HST-OES9000 Spectrometer | Ultra-Low LOD, Stable Analysis for Cu, Mg, Zn, Sn, Pb | Customizable CurvesUS$ 16500 - 25000MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Optical Emission Spectrometers
Model
HST-OES9000
Focal Length
400mm
Detector
High resolution CCD Multi detectors
Degree of vacuum
Auto control within 6-20 pa
Pixel resolution
30pm
Grating line
2400m1/mm
Average resolution ratio
10pm/pixel
Measurable elements
Fe,Al,Cu,Ni,Ti,Co,Zn,Sn,Mg,Pbetc
Power supply
AC220V/50Hz(Customized)
HST-OES9000 Optical Emission Spectrometers (Arc/Spark-OES)
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
multiplier tube (PMT) simulation technology and keep pace with international spectrometertechnology. The adoption of vacuum optical chamber design, full-digital excitation light source, advancedCCDdetectors, and high-speed data readout system equips the device with high properties, ultra-lowlimitofdetection (LOD), long-term stability and repeatability. The analytical precision can meet the requirementsoflaboratory standard, the analytical date is stable and reliable. Widely used in Metallurgy, casting, machineryprocessing and other industries incoming and outgoing product quality control.
2.Specifications
HST-OES9000 is Full Range of Solutions for the Entire Metals Industry. It use full-digital technologytoreplacebulky photo
multiplier tube (PMT) simulation technology and keep pace with international spectrometertechnology. The adoption of vacuum optical chamber design, full-digital excitation light source, advancedCCDdetectors, and high-speed data readout system equips the device with high properties, ultra-lowlimitofdetection (LOD), long-term stability and repeatability. The analytical precision can meet the requirementsoflaboratory standard, the analytical date is stable and reliable. Widely used in Metallurgy, casting, machineryprocessing and other industries incoming and outgoing product quality control.
2.Specifications
Item |
HST-OES9000 |
||
Optical System |
Focal Length |
400mm |
|
Wavelength range |
165~589nm (Extendable) |
||
Detector |
High resolution CCD Multi detectors |
||
Degree of vacuum |
Auto control within 6-20 pa |
||
Pixel resolution |
30pm |
||
Grating line |
2400m1/mm |
||
First order spectral line dispersion rare |
1.2nm/mm |
||
Average resolution ratio |
10pm/pixel |
||
Full spectrum |
|||
Light room temperature is controlled automatically |
|||
Spark Source |
Type |
Digital arc and spark source |
|
Spark frequency |
100-1000HZ |
||
Discharge current |
1-400A |
||
Ignition voltage |
>15000V |
||
Excitation light |
Optimization of discharge parameters design |
||
High energy precombustion technology HEPS |
|||
Processor |
High-speed data synchronization acquisition and processing |
||
Spark Stand |
Electrode |
Tungsten electrode technology |
|
Make up |
Thermal deformation self-compensation design |
||
Argon flushed with minimal consumption of Argon |
|||
Spray discharge electrode technology |
|||
Adjustable electrode technology |
|||
Others |
Measurable elements |
Fe、Al、Cu、Ni、Ti、Co、Zn、Sn、Mg、Pb etc |
|
Dimension |
800mm(L)*700mm*470mm(H) |
||
weight |
About 100kg |
||
Storage temperature |
0℃-45℃ |
||
Operating temperature |
10℃-35℃, 23±2℃ is recommended |
||
Power |
AC220V/50Hz(Customized) |
||
Power consumption |
Excitation:700W/Stand by:100W |
||
Argon quality |
99.999%, Argon pressure>4Mpa |
||
Argon consumption |
5L/min during spark mode |
||
Interface |
Ethernet data transmission based on DM9000A |
||
Features :

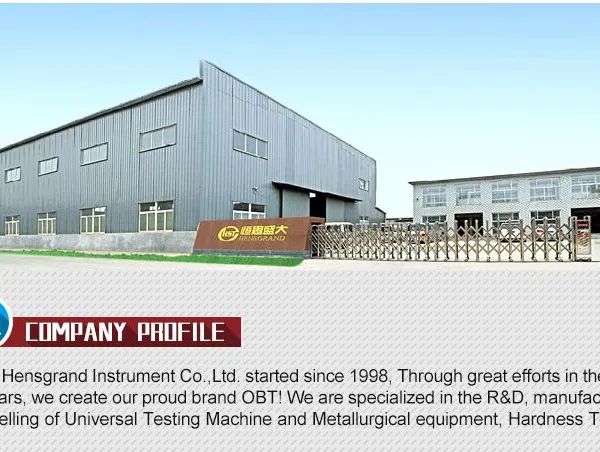

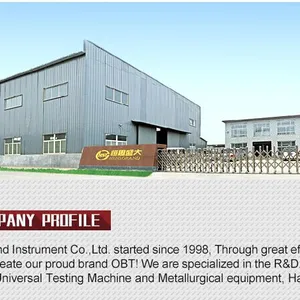

Company Profile
