Product Description
HLN-11A Portable Hardness Tester
1. Function
HLN-11A multifunctional Leeb hardness tester is used to test the Leeb hardness of ferrous metal
and nonferrous metal materials.
2. Features
1. Automatic digital display, without human reading errors.
2. The measured Leeb hardness value can be converted into Brinell, Rockwell, Vickers and Shore hardness.
3. The attached printer can print the testing value immediately.
4. Strong adaptability to working environment, widely used in the quality monitoring and control in production field.
5. Small volume, portable and easy-to-use.
3.Main Technical Parameters
Model | HLN-11A |
Measuring Range | 330-890HLD |
Test direction | Any direction |
Hardness scales | HL, HRC, HRB, HV, HB, HS |
Standard impact Device | D impact device |
Optional Impact Devices | DC/D+15/G/C/DL impact devices |
Power supply | DC 6.0V |
Work temperature | 1-40°C |
Dimension | 268 x 86 x 47mm |
Weight | About 0.67kg |
Main Configuration:
Main Unit----1pc
D type impact device(with cable)----1pc
Standard test book----1pc
Cleaning brush----1pc
Small support ring----1pc
Battery Charger (9V 500mA)----1pc
Paper for printing----1pc
Manul----1pc
Instrument case----1pc
Operating conditions:
1.Environmental temperature: operating temperature-10 ~ + 50°C
2.Storage temperature: -30°C~ + 60°C
3.Relative humidity :≤90
4.The surrounding environment without strong vibration ,without a strong field, no corrosive medium and severe dust.

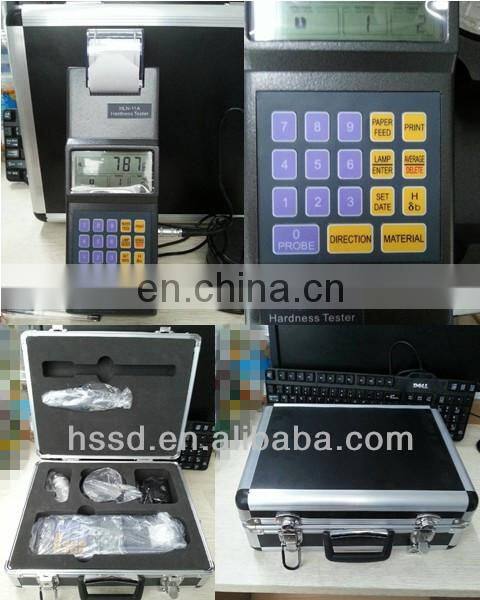

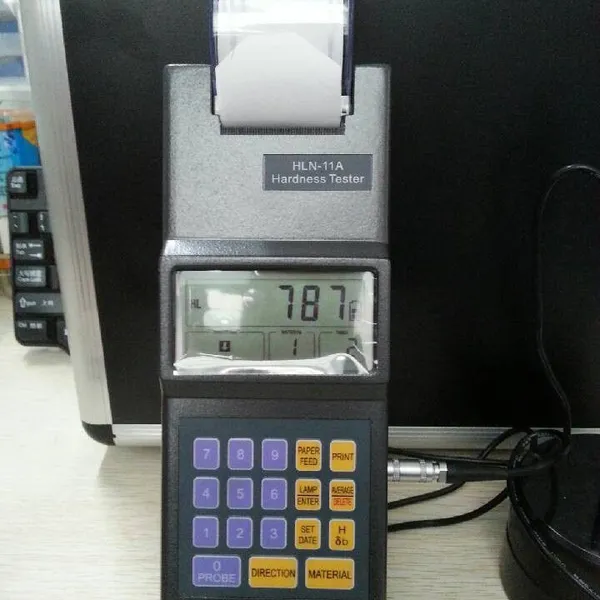

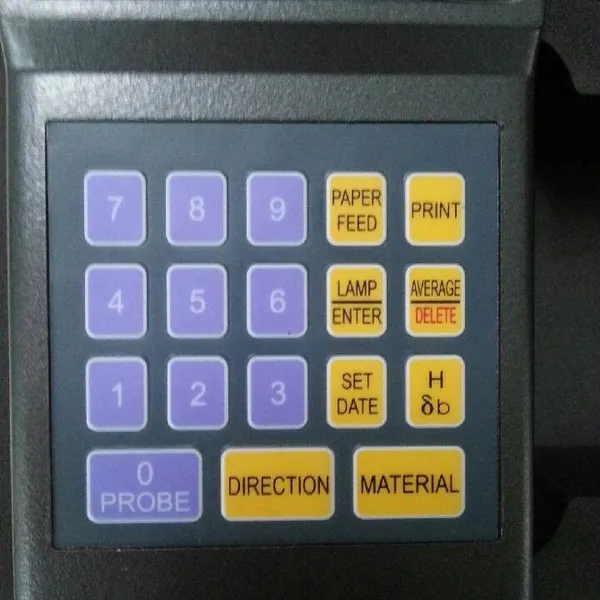

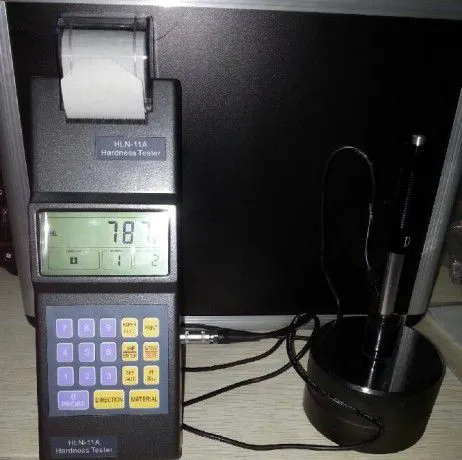

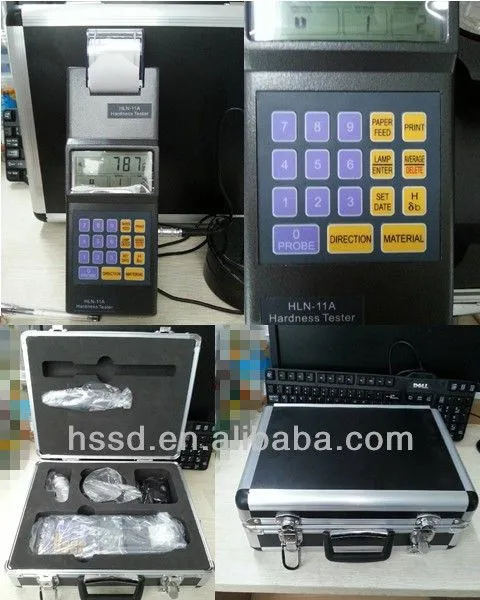

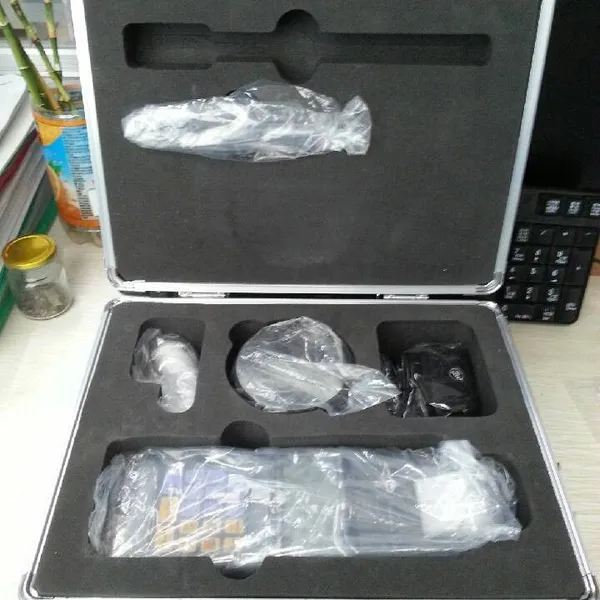

Portable Hardness Tester Pics:
