HBS-3000 Digital LCD Brinell Hardness Tester with electric loading

Name: HBS-3000 Digital LCD Brinell Hardness Tester with electric loading
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

HBS-3000 Digital Brinell Hardness Tester gemstone hardness tester

Product Description

Application:

HBS-3000 digital brinell hardness tester is a recently developed new generation Brinell tester that is domestically advanced.It can be applied to determine the Brinell hardness for ferrous metal and non-ferrous metal.The tester adopts electronic auto loading,computer software programming,high power optical measurement,photosensor and other systems.Eash operational process and test manufacturing enterprises,colleges and scientific institutions.

Technical parameter

Main technical specifications

Model	HBS-3000
Type	Digital Brinell
Test›range	8~650 HBW (hardmetals steel ball)
Brinell›hardness›test›(N)	612.5, 980, 1225, 1837.5, 2450, 4900, 7350, 9800, 14700, 29400
Load›control	Automatic
Magnification of microscope x	20x for reading microscope
Max. height of specimens (mm)	220
Max. depth of specimens (mm)	135
Power	AC220V, 50/60Hz
Dimension›(DxWxH)›(mm)	550 x 236 x 753
Net›weight›(kg)	130
Packing List
Indenter	Steel ball indenter í2.5mmx1 í5mmx1 í10mmx1
Indenter	Steel ball indenter í2.5mmx1 í5mmx1 í10mmx1
Testing›table	Big / small /V, 1 for each
Testing›table	Big / small /V, 1 for each
Hardness››block	HBW 3000/10 150~250 x 1, HBW 1000/10 75~125 x 1, HBW 187.5/2.5 150~250 x 1
Hardness››block
Operation›manual	1
Reading›microscope	20x x 1
Micrometer›eyepiece	1

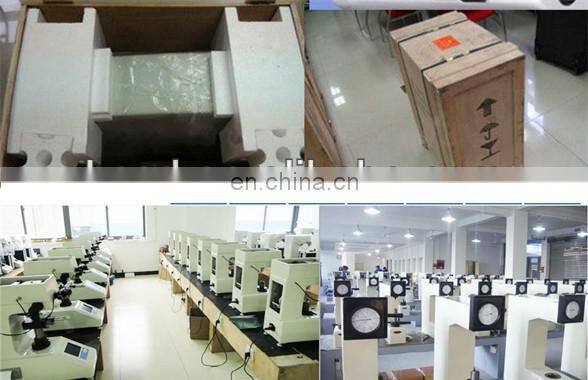

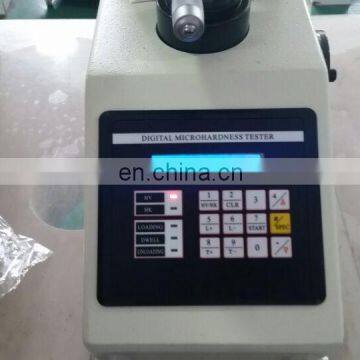

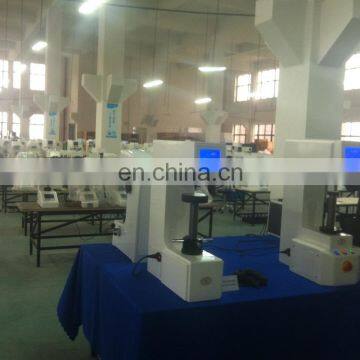

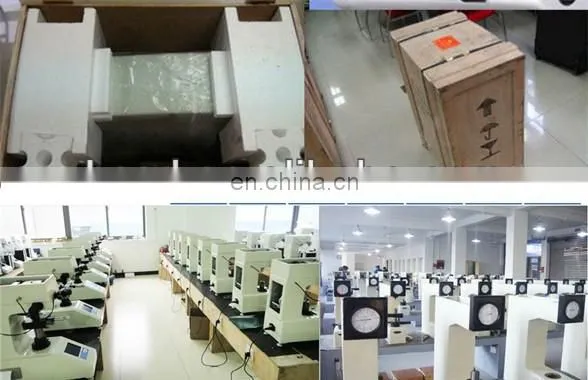

Real pictures

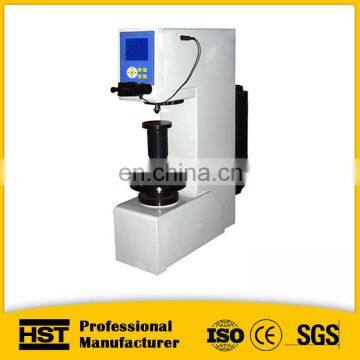

HBS-3000 Digital Brinell Hardness Tester
