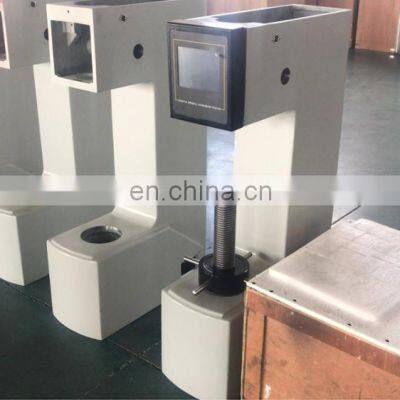

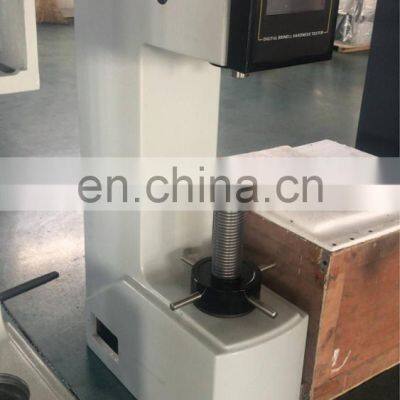

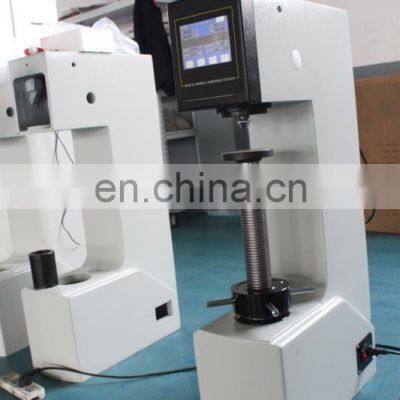

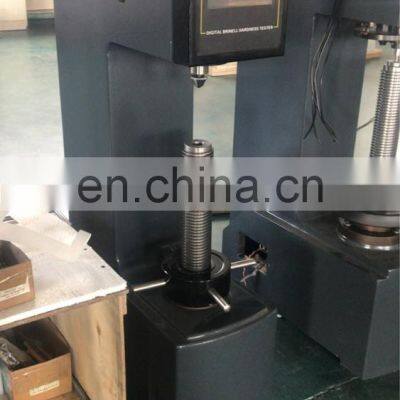

HBE-3000M Touch Screen LCD Display Electronic Brinell Hardness Tester

1.Application:

The touch-screen electronic Brinell hardness test is mainly used to determine the hardness of cast iron, steel, non-ferrous metals and soft alloys, in addition, it can also be used to determine the hardness of some non-metallic materials, such as hard plastics, bakelite and so on. The hardness meter removes the loading weight and adopts the electronic automatic loading system. It has ten levels of test force, wider testing range and higher precision. Applicable to factories, workshops, laboratories, colleges and universities and scientific research institutions.

The test is mainly used to determine the hardness of cast iron, steel, non-ferrous metals and soft alloys.

The load weight is removed and the electronic automatic loading system is used.

With ten levels of test force, the range of test is wider and the precision is higher

2.Technical Parameter:

Brinell scale: HBW2.5/62.5,HBW2.5/187.5,HBW5/125,HBW5/750,HBW10/100,

HBW10/1500,HBW10/3000,HBW10/250,HBW10/500,HBW10/1000

Test power: 62.5kgf (612.9N), 100kgf (980.7N), 125kgf (1226N), 187.5kgf (18)

39N),250kgf(2452N),500kgf(4903N),750kgf(7355N),1000kgf(9807N),1500kgf(14710N),3000kgf(29420N)

Maximum height of specimen: 280mm

Minimum unit of measurement: 0.005mm

Load retention time: 5~ 60s

Hardness range: 8~650HBW

Total magnification: 20X

Executive standards: EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2,JJG150

Indenter center to body distance: 150mm

Hardness reading: check table

Power supply: AC220±5% / 50~60Hz

Shape dimension (mm): 550*236*750mm

Host weight: 123kg

3.Features:

*Rugged, rigid, accurate, reliable, durable, high test efficiency;

*Automatic closed-loop force sensor control system, 10 Test force selection, 14 trials ruler;

*Overload, over-bit auto-protection, electronic afterburner, no weight;

*Automate the testing process, and no one was operator error;

*Large LCD display, menu smart tips, easy to operate;

* Flexible and convenient operation function with the English conversion;

*Optional CCD image processing system;

*Accuracy according GB/T231.2, ISO6506-2 and American ASTM E10 standards.
