Home > Products > Hardness Tester > TH5100 Richter Hardness Tester/metal Hardness Tester

TH5100 Richter Hardness Tester/metal Hardness Tester

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Pen Type Leeb Hardness Tester TIME®5100/5102/5104

Pen Type Hardness Tester TIME®5100/5102/5104 is economically priced and suitable for quick hardness testing on metal materials, especially on-site hard testing of large, non-transportable components.

Features

Light Mini Unit with simple menu, easy and convenient to use

Conversion of hardness scales(HL, HV, HB, HRC, HRB and HS)

USB interface to connect the PC, assisted by Software Dataview TH51X (especially for TH51X series Hardness Test) with both online measurement and offline data analysis mode:curve chart, data sheet, setting of tolerance limit and data report are available.

Connected to Printer by RS 232 and test values can be printed directly

Measuring Direction:Any direction 360°

Automatic identification of impact test direction

Memory of 270 data in 9 group

Backlight for convenience in darkness

Upper /lower limits setting

AAA 1.5V battery, whose capacity shown in display

Auto power off

TIME®5100: integrated with D impact device for the majority of hardness testing requirements

TIME®5102: integrated with C impact device for hardness testing on thin, light and surface hardened components

TIME®5104: integrated with DL impact device for hardness testing of deep grooves and tooth surface

Specification:

Model	TIME ® 5100	TIME ® 5102	TIME ® 5104
Impact device	D integrated	C integrated	DL integrated
Hardness scales	HLD, HB, HRC, HRB,HV, HS	HLC, HB, HRC, HRB, HV, HS	HLDL, HB, HRC, HRB,HV, HS
Accuracy	±6HLD(760 ±30HLD)	±12HLC	±12HLD
Memory	270 average readings in 9 group files
Output	RS232 to printer
Min. surface roughness of work piece	1.6μm ( Ra)	0.4μm ( Ra)	1.6μm ( Ra)
Max. work piece hardness	960HLD	960HLC	950HLDL
Min. radius of work piece (convex/concave)	Rmin = 50mm (with support ring Rmin=10mm)	Rmin=11mm (with support ring )	Rmin = 10mm (with support ring Rmin=10mm)
Min. work piece weight	2~5kg on stable support 0.05~2kg with compact coupling	0.5~1.5kg on stable support 0.02~0.5kg with compact coupling	2~5kg on stable support 0.05~2kg with compact coupling
Min. work piece thickness coupled	5mm	1mm	5mm
Min. thickness of hardened layers	0.8mm	0.2mm	0.8mm
Indentation depth	Impact devices data
Continuous working time	8h (without backlight)
Power	AAA 1.5V batteries
Operating temperature	0~40℃
Dimensions (mm)	155×55×25	160×60×25	215×60×25
Weight (g)	180

Standard Delivery		Optional Accessory
Main unit	1	Support rings
Test block HLD	1	Dataview Software
USB connecting cable	1
Cleaning brush	1
Battery AAA 1.5V	2
TIME certificate	1
Warranty card	1
Instruction manual	1

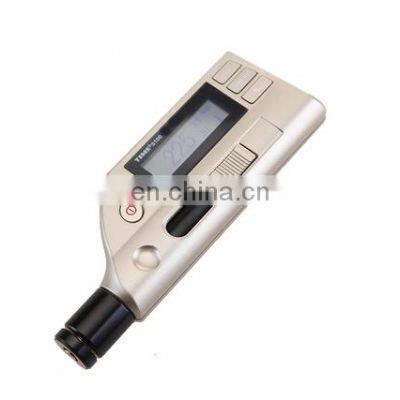

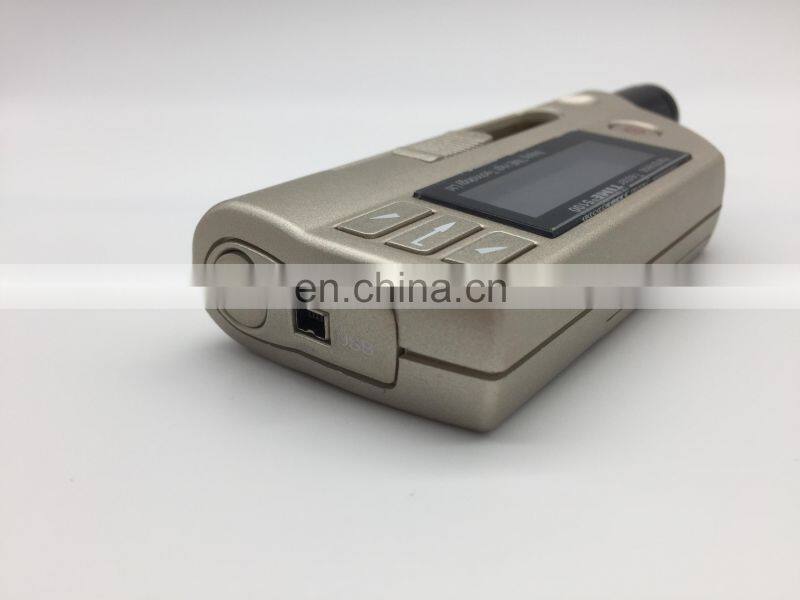

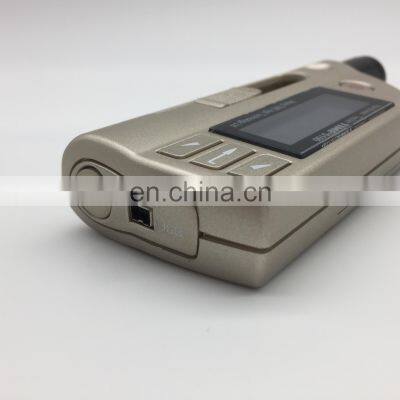

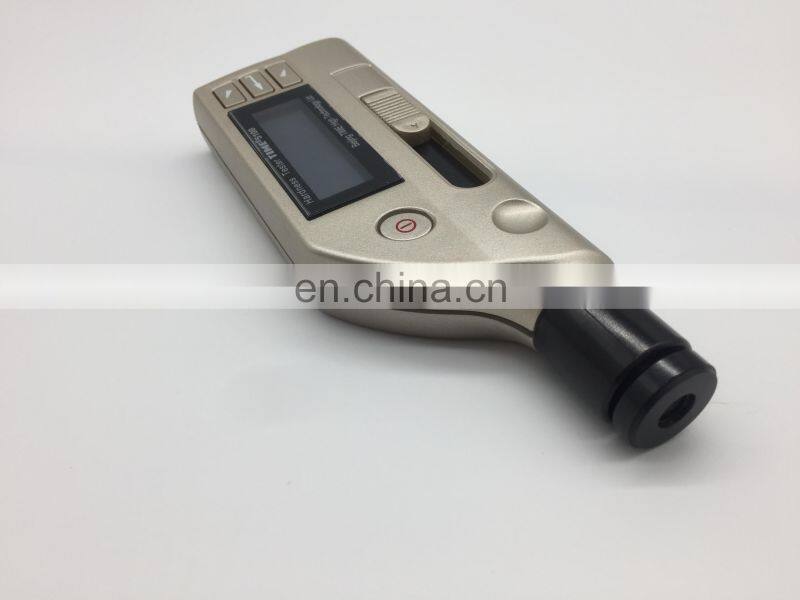

Machine photos

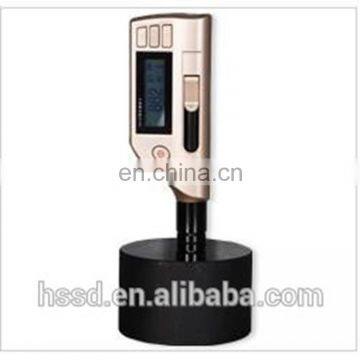

Protable Richter Hardness Tester

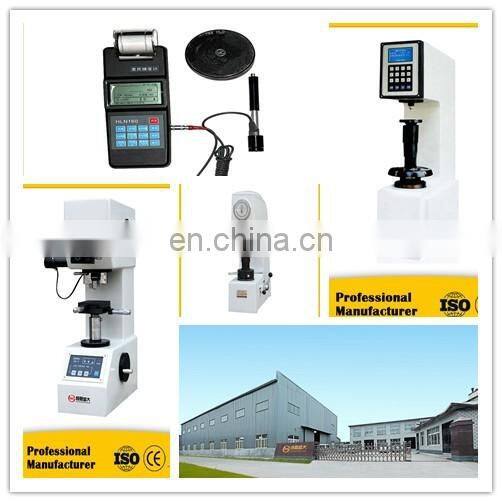

Other brand hardness tester, like Roackwell, Brinell, Vickers.

Contact information

Profesional technology and high quality !

High quality and low price !

The comprehensive technical guidance and after-sales service !

Look forward to your inquiry!
