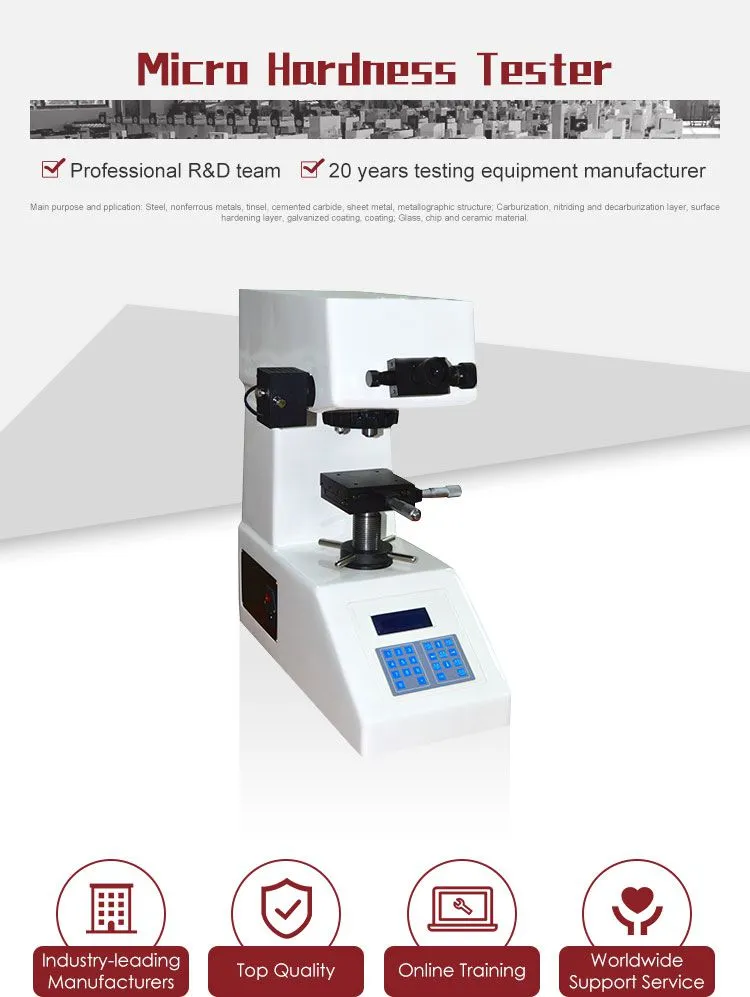

Microhardness HV-1000 Micro Vicker Durometer/Micro Vicker Hardness Tester
Production Introduction

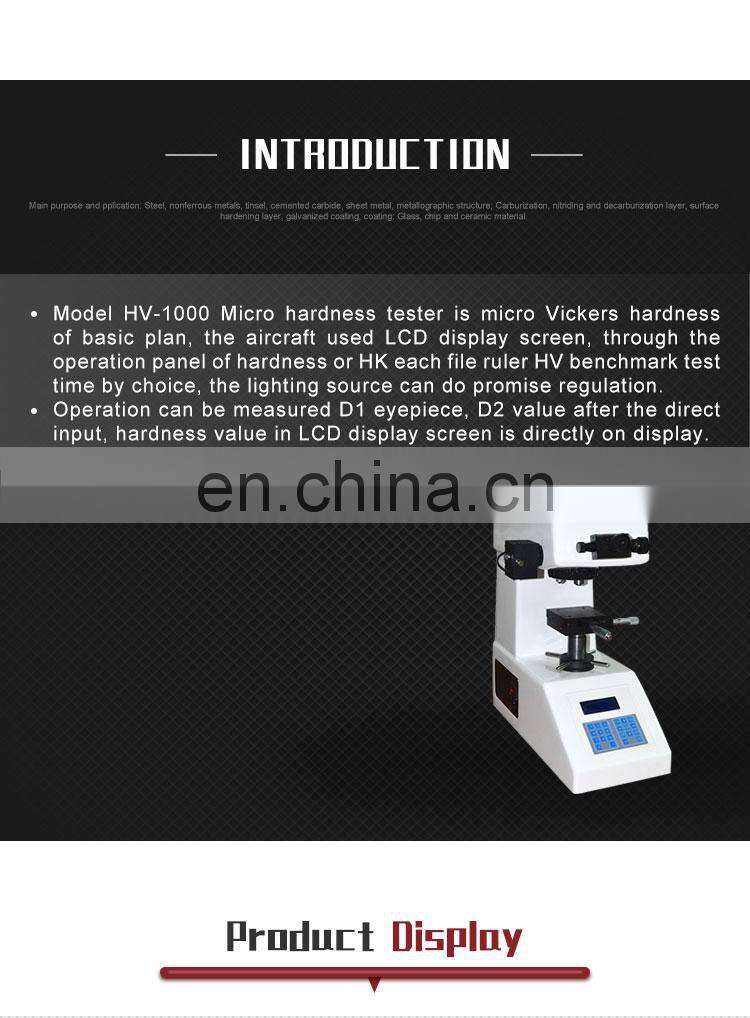

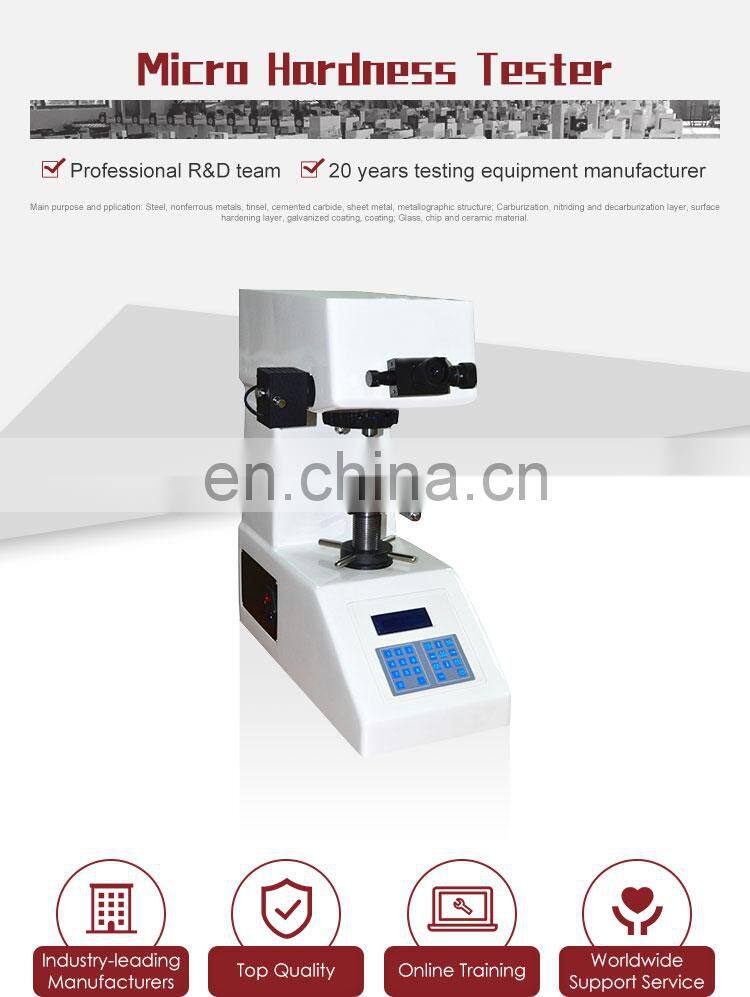

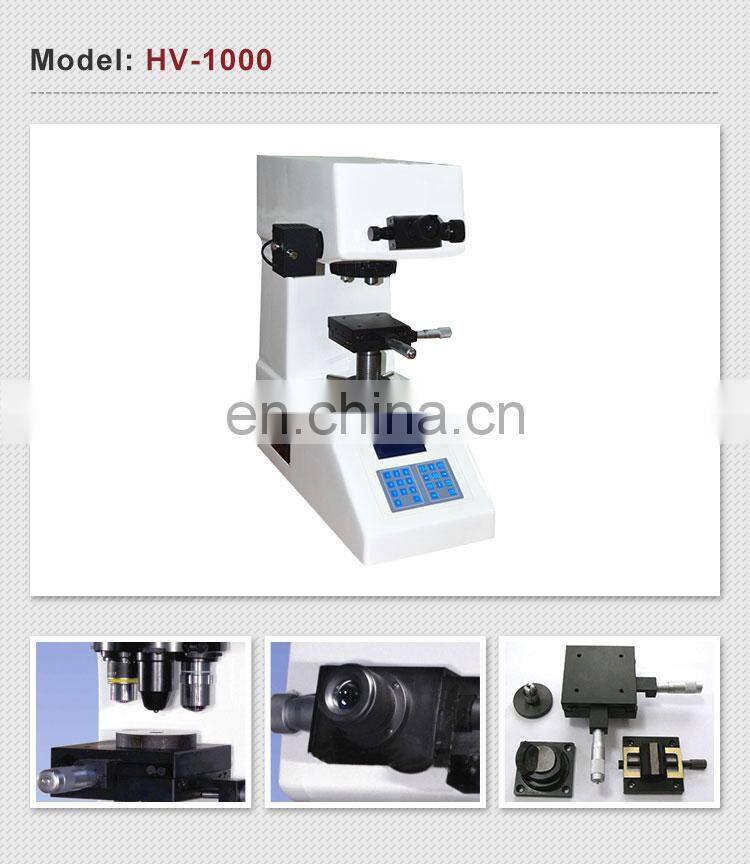

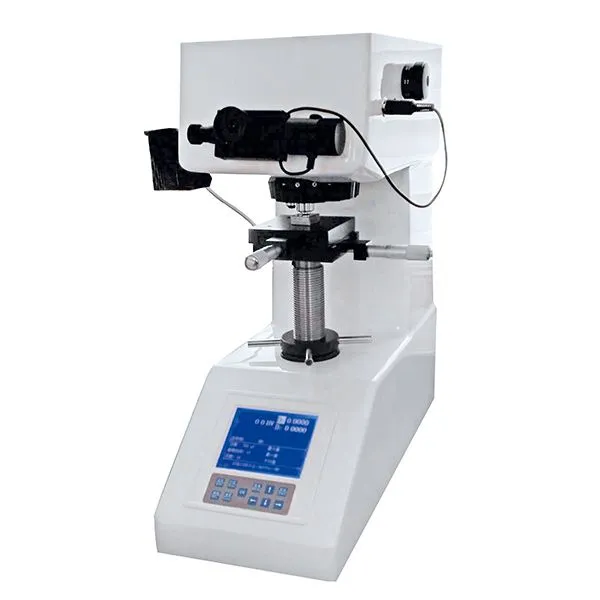

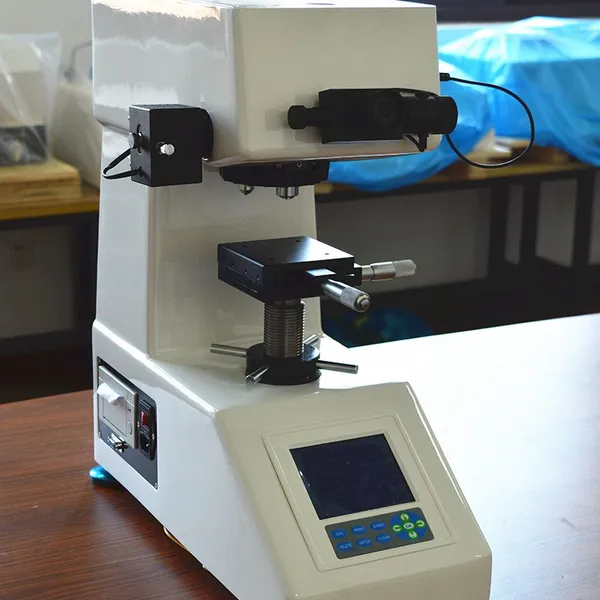

HV-1000 Micro Hardness Tester Adopt the shell integral casting processing, perforation alignment with a knife straight, to ensure the concentricity of each hole position coaxiality, for the high precision and high stability of the machine set a good foundation. The light source of the durometer adopts the special high quality imaging light source system on the metallographic microscope, the brightness of the light field is uniform and clear, thus reducing the measurement error of the print indentation. The operation interface adopts a menu structure. The hardness scale HV or HK can be selected on the operation panel, and the hardness value tested can be entered and displayed manually. Various hardness values can be converted to each other. Manual turret positioning.
Technical Parameters
|
Scale of hardness |
Vicker, nouvelle |
|
Test force |
10-25-50-100-200-300-500-1000gf |
|
Test force selection mode |
Manual |
|
Carried standard |
In accordance with EN-ISO6507, ASTM E384&E92 and JIS standards |
|
Loading and unloading mode |
Automatic |
|
Dwell Time |
Adjustable 0 to 60 seconds |
|
Turret |
Manual |
|

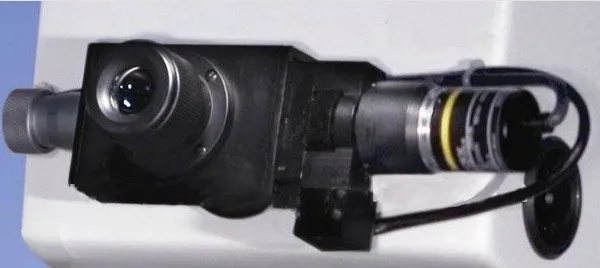

Micrometer eyepiece multiple |
10X |
|
Me measurement resolution
|
0.25µm (drum reading) |
|

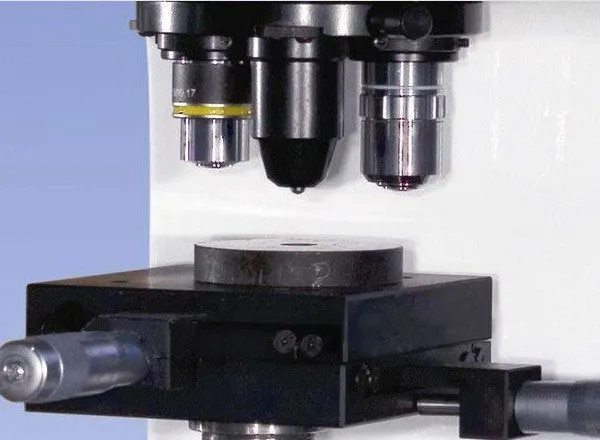

Objective magnification |
10X 40X |
|
Total magnification
|
100X(objective)400X(measurement) |
|
Measurement range |
150µm |
|
optical channel |
two-channel/CCD |
|
Filter lens |
Green |
|
Light source |
Halogen lamp (brightness adjustable) |
|
Resolution of hardness number |
0.1 vickers units |
|
Hardness conversation |
Brinell, rockwell, surface rockwell |
|
Max. Height of Specimen |
110mm |
|
Depth at center line |
110mm |
|
XY test table size |
100X100mm |
|
XY test table moving distance |
25X25mm |
|
Min. displacement of XY test table |
0.01mm |
|
Operating temperature |
23±5℃ |
|
Operating humidity |
<65% |
|
Size of Host Machine |
530mmX290mmX490mm |
|
Net weight |
40Kg |
|
Power supply |
220V 2A 50-60HZ |
Accessories
|
Name |
Quantity |
Name |
Quantity |
|
Farmar shaft |
1 pc |
Farmar |
6 pcs |
|

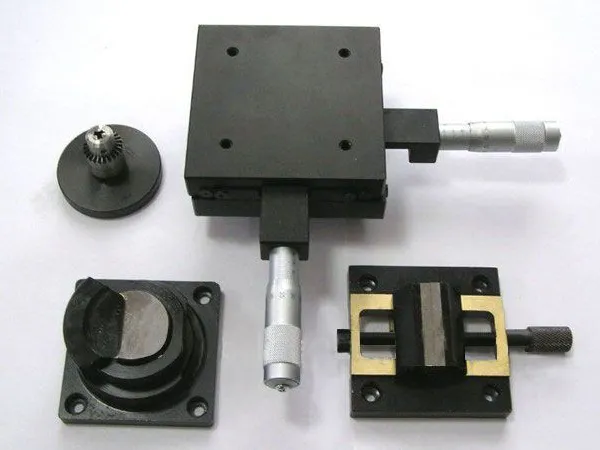

Cross test bench |
1 pc |
Sheet holding table |
1 pc |
|
Flat clamping table |
1 pc |
Filament clamping table |
1 pc |
|
Screwdriver |
2 pcs |
Adjusting screw |
4 pcs |
|
Small spirit level |
1 pc |
10X test eyepiece |
1 pc |
|
Micro Vickers hardness block (high value block, low value block) |
1 each |
Spare fuse (2A) |
2 pcs |
|
power cable |
1 pc |
Product certification |
1 share |
|
Instruction Manual |
1 share |
|
|
