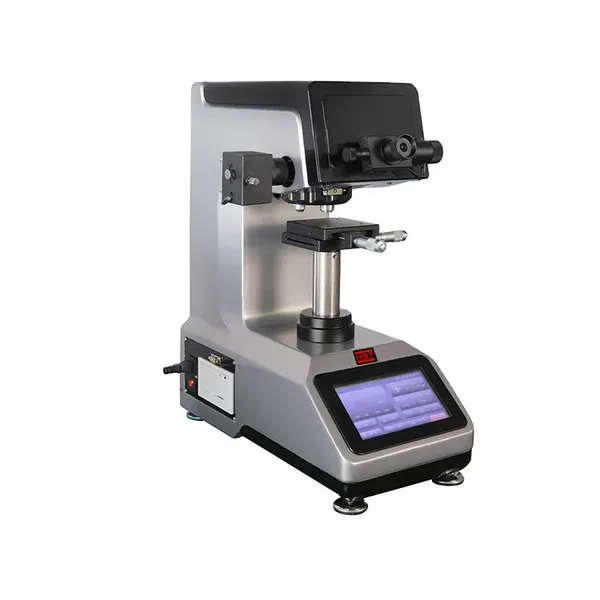

HVS-1000 Digital Display Portable Micro Vickers Hardness Tester

HVS-1000 Digital Display Portable Micro Vickers Hardness Tester thumbnail-1
HVS-1000 Digital Display Portable Micro Vickers Hardness Tester thumbnail-2
HVS-1000 Digital Display Portable Micro Vickers Hardness Tester thumbnail-3
HVS-1000 Digital Display Portable Micro Vickers Hardness Tester thumbnail-4
HVS-1000 Digital Display Portable Micro Vickers Hardness Tester thumbnail-5
HVS-1000 Digital Display Portable Micro Vickers Hardness Tester thumbnail-6
HVS-1000 Digital Display Portable Micro Vickers Hardness Tester photo-1
HVS-1000 Digital Display Portable Micro Vickers Hardness Tester photo-2
HVS-1000 Digital Display Portable Micro Vickers Hardness Tester photo-3
HVS-1000 Digital Display Portable Micro Vickers Hardness Tester photo-4
HVS-1000 Digital Display Portable Micro Vickers Hardness Tester photo-5
HVS-1000 Digital Display Portable Micro Vickers Hardness Tester photo-6
US$ 5598.32 ≥1 Set
Key Specifications
Get Latest Price
type:
new, digital manual Turret Micro Vicker Hardness Tester
model number:
HVS-1000
brand name:
HST
Contact Supplier Request Quote Chat Now
Hst Group Co.,ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
type new, digital manual Turret Micro Vicker Hardness Tester
model number HVS-1000
brand name HST
place of origin Shandong, China
customized support OEM, ODM
warranty 1 year
Product Name vicker hardness test blocks
Test force 10, 25, 50, 100, 200, 300, 500, 1000gf
Hardness scale HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Magnifications of the measuring system 400X(measuring), 100X(observing)
Min scale value of optical micrometer 0.01μm
Max. height of test piece 90mm
Depth of throat 120mm
Measuring range 5-3000HV
Micro-Vickers standardized block 2 pcs



    HVS-1000  Digital display micro Vickers portable hardness tester



Product Description



HVS-1000 manual turret digital display micro-vicker hardness tester LCD display screen is adopted, and the operation interface adopts menu structure. The hardness scale HV or HK can be selected on the operation panel. The hardness value tested will be automatically calculated and displayed. Various hardness values can be converted to each other.
The hardness error can be corrected by software input to make the hardness more accurate.
Test results can be automatically stored, processed and printed.

The HVS-1000 digital display microhardness tester has manual switch between the head and the objective lens during the test, and the test point positioning is accurate.

Application:

Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc

Technical Parameter

Model

HVS-1000

Test force

10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1kgf (9.8N)

Minimum test unit

0.031µm

Exchange Scales



HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T

Measuring range

5~3000HV

Test method of force application

Automatic( loading, dwelling,unloading )

Test microscope magnification

100X(objective)400X(measurement)

Test load dwell  time

0~60s

X-Y table

size:100*100mm  Mx. movement:25*25mm

data output

LCD display,Built-in printer and rs-232 interface

Max Height of Specimen

110mm

Distance from the center of the head to the outer wall

110mm

power supply

AC220V+5%,50-60Hz

Dimensions

405*290*480mm

Weight

40Kg
