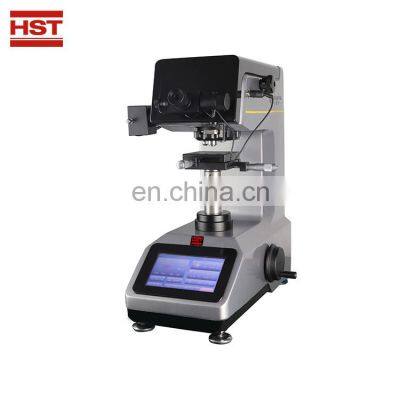

HST Vickers Automatic Test Hardness Tester
- T/T Credit Card
You May Like
-
Type of Tablet and Portable Rockwell Hardness Tester
-
HRS-150/45DT Rockwell and Superficial Rockwell Hardness Tester
-
HRS-150T Touch Screen HRA HRB HRC Rockwell Hardness Tester
-
HVS-1000A Large LCD Screen Digital Display Manual Turret Micro Vicker Hardness Tester
-
HV-1000 Digital Display Small LCD Screen Manual Turret Micro Vicker Hardness Tester
-
HBRV-187.5ST Digital Display Electric Loading Motorized Brinell Rockwell Universal Hardness Tester
Product Description
HST Vickers automatic test hardness tester
I. Applications:
Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.
Sepcifications
|
Model |
HV-1000 |
HVS-1000 |
HVS-1000T |
|
Display model |
Small LCD digital display |
Big LCD digital display |
Touch LCD Digita Display |
|
Hardness values |
Input D1,D2 |
Direct display |
Direct Display |
|
Exchange Scales
|
HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T |
||
|
Test force |
10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1kgf (9.8N) |
||
|
Turret Type |
Manual |
||
|
Loading and unloading mode |
Automatic |
||
|
Dwell Time |
Adjustable 0 to 60 seconds |
||
|
Micrometer eyepiece multiple |
|||
|
Me measurement resolution |
0.25µm (drum reading) |
||
|
Objective magnification |
10X 40X |
||
|
Total magnification |
100X(objective)400X(measurement) |
||
|
measurement range |
150µm |
||
|
light source |
Halogen lamp (brightness adjustable) |
||
|
Hardness conversation |
Brinell, rockwell, surface rockwell |
||
|
Max. Height of Specimen |
80mm |
||
|
Depth at center line |
95mm |
||
|
XY test table size |
100X100mm Max. movement:25*25mm |
||
|
Min. Measuring Unit |
0.01μm |
||
|
RS232,Built-in print,data statistics |
No |
Yes |
Yes |
