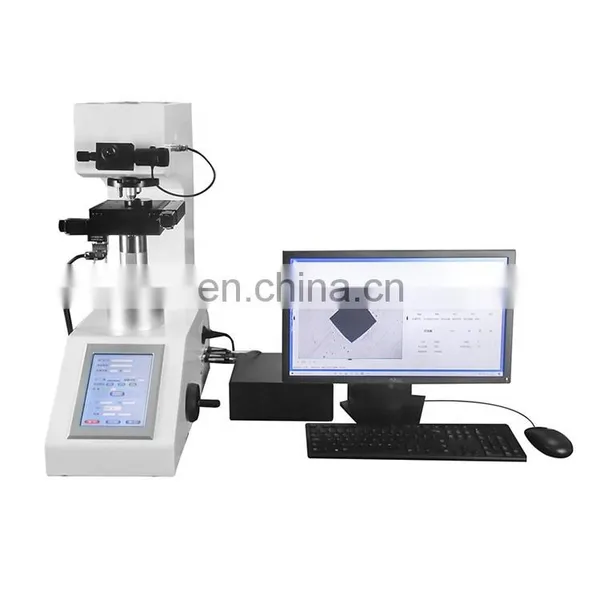

HVS-1000A Large LCD Screen Digital Display Manual Turret Micro Vicker Hardness Tester
Mobile/whatsapp: + 86-15866781190 Skype: hstbetty009
It has a more faster testing speed than other ordinary Micro hardness tester. The hardness value can be displayed directly and not need to enter the length of the diagonal. High quality imported components ensure the instrument can stable working for a very long time; Protected by the state patent application of the lift & down system, after upgrading, the control system can provide more measuring data, and control more precise.
Main function and features:
1. Equipped with digital eyepiece and Data computing systems which accuracy can reach to 0.01um; Just click one button the hardness value will display on screen directly .
3. The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
5. With Vickers hardness and Knoop hardness testing capabilities, and testing force can be extended to 2KG (HV2). Automatic measuring the indentation diagonal length, the hardness and conversion hardness will show on the screen directly, no need to check hardness table.
6. Industrial digital screen can direct display hardness value, conversion hardness, testing method, testing force, dwell time, test number and testing process; The built-in printer can print testing times, hardness value, average value, Max. Value, Min. Value, Xmax-Xmin directly, easy for operator to save the data.
7. Equipped with data transfer software, all the testing data can be transfer to computer via RS232 port, then can edit and save the data on computer.
9. Reserved image channel, can be connected with computer, used the image analysis software to analyzing the physical and chemical properties of the material (for optional purchase).
10. Factory directly supply, we have products develop &design & produce ability, all the parts provide life-time replacement and maintenance service.
Technical Specifications:
|
Model |
HVS-1000 |
|
Conversion Scale |
HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T |
|
Testing Force |
10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N) Test force error: ±1.0% |
|
Min. Measuring Unit |
0.01μm |
|
Hardness Value Rang |
8HV-2900HV |
|
Total magnification |
100X (For Observation) , 400X (For Measurement) (Can be extended to 150X or 600X) |
|
Loading method |
Automatically(Load, dwell and unload the testing force) |
|
Duration Time |
0-60s (each step is 1 second) |
|
Turret |
Manual Turret |
|
Objective lens center and indenter center |
Coincidence accuracy error < 1um (objective lens center position can be adjusted) |
|
Max Height of Specimen |
80mm |
|
Distance of Indenter to outer wall |
95mm |
|
Overall Dimension |
405*290*480mm |
|
Net weight |
40kg |
|
Light Source |
LED Cold light source (can be continuous use for 24 hours, no heat generate ensure stable working, servicing life can reach 100,000 hours) |
|
Power Supply |
220V + 5%, 50/60 Hz (110V is available) |
