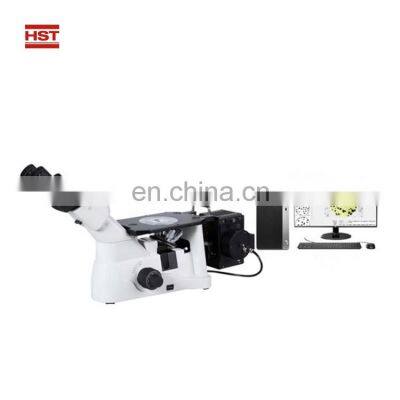

Analysis Optical Digital Polarizing digital metallographic metallurgical microscope with camera
| Production Description |

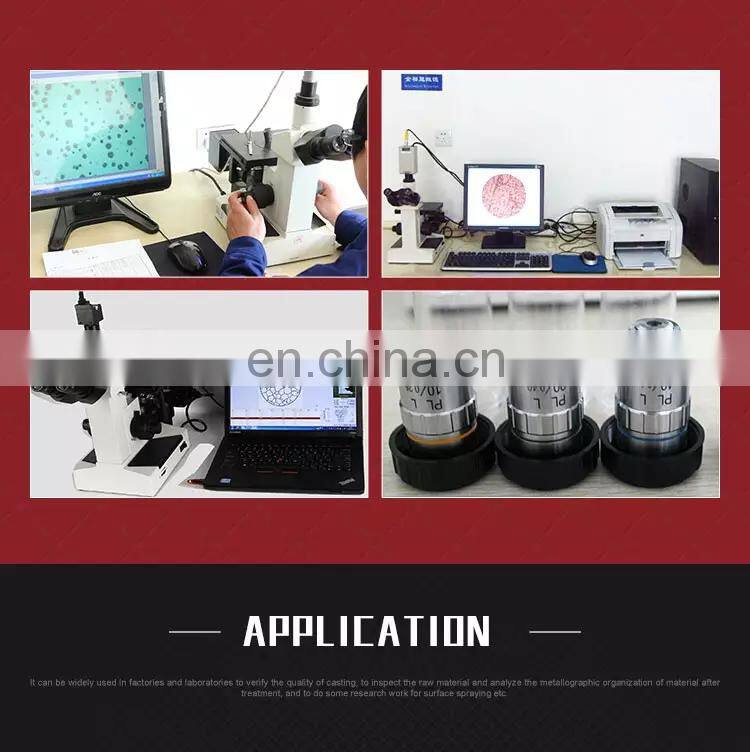

1. Application
It provides superior image quality, stable and reliable mechanical structure, easy operation and complete accessories. It is widely used in metallographic analysis of teaching and scientific research and material testing in factory laboratories.
Eyepiece and objective
High eye point, ultra wide field field eyepiece, PL10x/22mm, providing a wider and flat viewing space and can be equipped with various micrometers for measurement, infinity flat field achromatic long working distance professional metallographic objective , no cover glass design.
Observation tube
Hinged trinocular, adjustable visibility, 45° tilt, photographic camera, capture and save observation images, configuration computer and professional software for image analysis.
Focusing mechanism
Low-handed coarse-tuning coaxial focusing mechanism with coarse adjustment elastic adjustment device, coarse adjustment of 38mm per revolution, fine adjustment accuracy of 0.002mm.
Lighting system
Reflective Kola illuminator with iris diaphragm and central adjustable field diaphragm, adaptive 90V-240V wide voltage, 12V50W imported halogen lamp, effectively protect and extend the life of halogen bulbs.
Stage
The coaxial low hand position adjustment moving ruler and the carrier extension plate can be added to expand the application space to meet the needs of customers with different needs.
Technical Specification
|
Optical system |
Infinity chromatic aberration correction optical system |
|
Observation tube |
Hinged trinocular head, 45° tilt, pitch adjustment range: 54-75mm, unilateral diopter adjustment ±5 diopter split ratio: binocular 100%, binocular: trinocular = 80%: 20% |
|
eyepiece |
High eye point large field of view flat field eyepiece PL10X22mm |
|
Objective lens |
Infinity long working distance flat field achromatic metallographic objective: LMPL5X /0.15 / WD10.8 |
|
Infinity long working distance flat field achromatic metallographic objective: LMPL10X/0.3 / WD10 |
|
|
Infinity long working distance flat field achromatic metallographic objective: LMPL20X/0.45 / WD4 |
|
|
Infinity long working distance flat field semi-reduction metallographic objective: LMPLFL50X/0.55 / WD7.8 |
|
|
converter |
Five-hole converter |
|
Focusing mechanism |
Coarse and fine-tuning coaxial, coarse adjustment per revolution: 38mm, fine-tuning per revolution: 0.2 mm, focusing accuracy: 0.002mm, with elastic adjustment device |
|
Stage |
Fixed platform: size 160X250mm |
|
Workbench |
Metal stage plate (center hole Φ12) / metal stage plate (center hole Φ25) / stage extension plate |
|
Moving ruler |
Low position coaxial mechanical moving ruler, stroke 120x78mm |
|
Reflective lighting system |
Reflective Kola illuminator with variable aperture diaphragm and central adjustable field diaphragm, adaptive 90V~240V wide voltage, 12V50W halogen lamp, center adjustable, continuously adjustable brightness |
|
Polarizing device |
Polarizer insert |
|
Detector insert, 360 degree rotation |
|
|
Filter |
Φ32mm yellow/green/blue/neutral |
|
Metallographic analysis software |
Metallographic automatic analysis system |
|
5 megapixel map camera |
|
|
0.5X adapter |
|
|
Micrometer (accuracy is 0.01mm) |
