ZXQ-5ST 22mm, 30mm, 45mm Touch Screen Sample inlaying machine

Name: ZXQ-5ST 22mm, 30mm, 45mm Touch Screen Sample inlaying machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Product Description

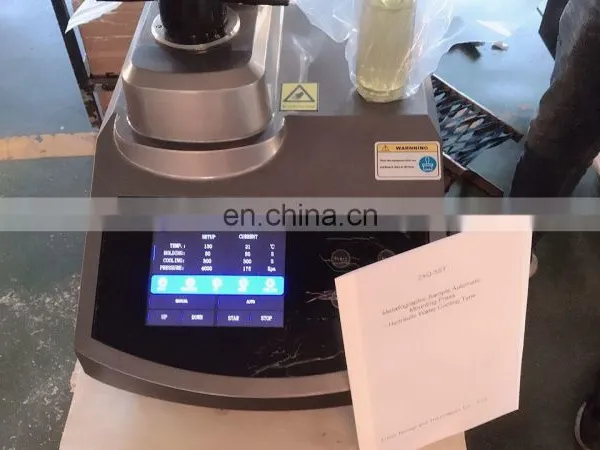

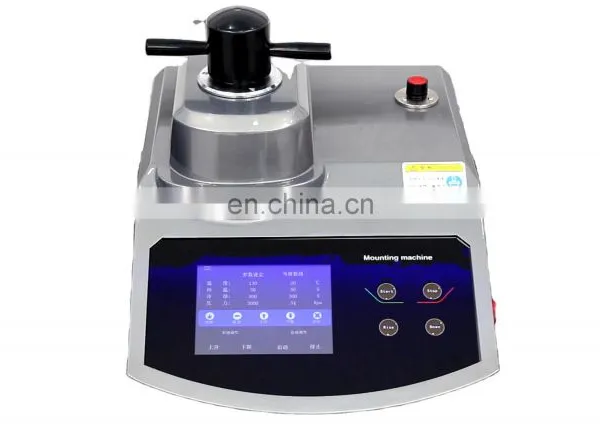

ZXQ-5ST Touch Screen Sample Mounting Press

Application:

The automatic metallographic sample inlay machine is a multi-functional water-cooled mounting machine for

mounting various samples. Inlay small and irregular workpieces. After mounting, it is convenient to perform

grinding and polishing operations on the workpiece and it is also beneficial for users to observe the structure of

the material under the metallographic microscope more conveniently.

This machine adopts hydraulic control. The biggest feature is that the cylinder body adopts special process

design, and the inlay process is completed in 5 minutes.

Main Specifications

Specimen pressing specification: 22mm, 30mm, 45mm, (choose 1)

Heating power: 2400W

Input voltage: 220V 50HZ

Sample preparation pressure: 0-10MPa

Sample preparation time: 5min

Cooling method: water cooling

Dimensions: 435×610×430mm

Net weight: 45Kg
