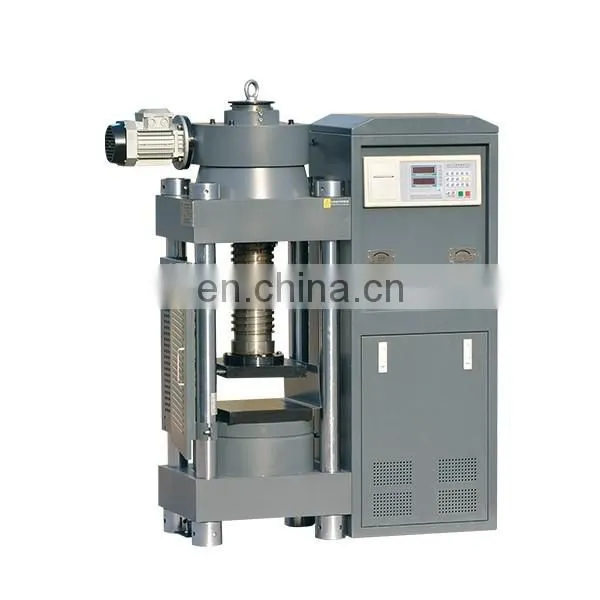

YAW-D Computer Control Compression Machine
Application:
YAW_D mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Features:

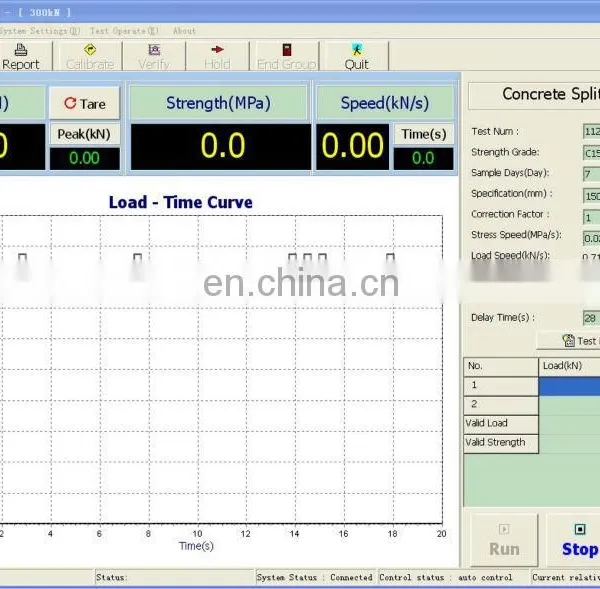

1. Computer control up, down, test, stop and loading progress
2. Electric screw ball adjust test space
3. Unibody desktop oil source control cabinet
4. This machine consist of the host machine, oil source and control system.
Technical parameters
|
Model |
YAW-2000D |
YAW-3000D |
|
|
Max testing force |
2000kN |
3000kN |
|
|
Control method |
Computer auto control loading process |
||
|
Test space adjust method |
Electric ball screw adjust |
||
|
Oil source control cabinet structure |
One-piece oil source control cabinet |
||
|
Test class |
1 class |
||
|
Testing range |
4%-100%FS |
||
|
Test force value accuracy |
Better than ±1% |
||
|
Hydro-cylinder Stroke |
50mm |
80mm |
|
|
Max space between compression plates |
320mm |
340mm |
|
|
Max space between two columns |
270mm |
280mm |
|
|
Compression plate size |
250×250mm |
260×260mm |
|
|
Machine size |
900×430×1300mm |
1000×500×1450 |
|
|
Power supply |
2.1Kw/AC380V |
2.3Kw/AC380V |
|
|
Machine weight |
2100Kg |
2800Kg |
|
YES-1000/2000/3000 YAW-1000/2000/3000D YES-100/200/300 YES-1000/2000/3000D
