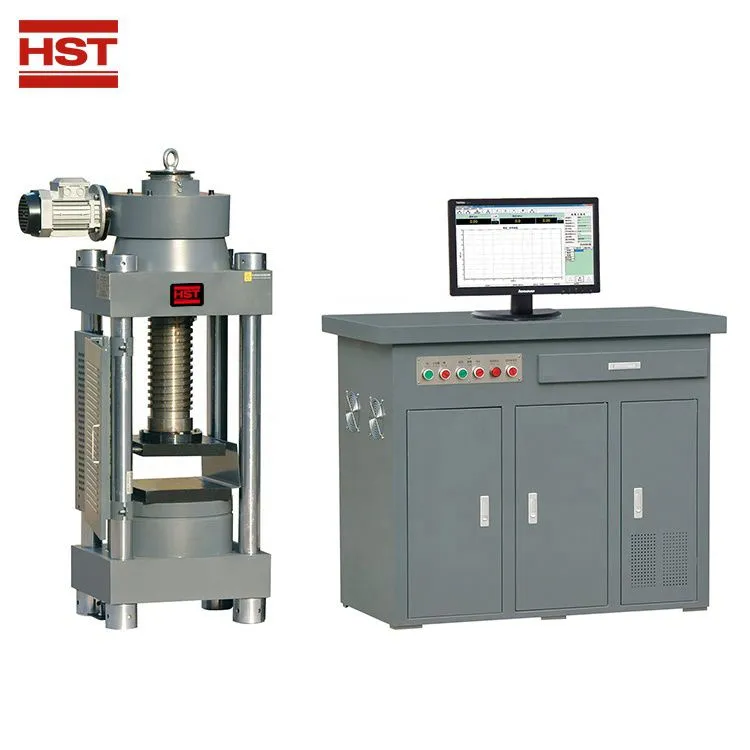

Help CenterYAW 3000kN China Manufacturer CE Certificate Concrete Cement Compression Compressive Strength Test Equipment
Related Products
-
YES-1000 1000KN/100ton Hydraulic Power Pack Manual Concrete Compression Testing Machine CTMUS$ 11546.54 - 12596.22MOQ: 1 Set -
YAW-200D High Quality Stone Concrete Lab Compression Strength Testing Machine 200KNUS$ 24142.76 - 24492.65MOQ: 1 Set
-
YAW-3000kn Automatic Soil Consolidation Cube Compression Testing MachineNegotiableMOQ: 1
-
2000 KN Concrete and Blocks Materials Laboratory PILOT COMPACT-Line Automatic Compression Testing MachineUS$ 1600 - 3999MOQ: 1 Set
-
HNP-2000 Drain-pipe Internal Water Pressure Testing DeviceNegotiableMOQ: 1
China manufactuer CE certificate compressive strength test equipment
Bending and compression testing machine application:
1. Application
YAW_D concrete compressio tester mainly used for concrete rupture strength testing,
cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Features
1). Computer control up, down, test, stop and loading progress.
2). Electric screw ball adjust test space.
3). Unibody desktop oil source control cabinet.
4). This machine consist of the host machine, oil source and control system.
5). Can realize the load rate, such as load or stress rate loading.
6). Can auto printing.
Main Specification
|
Model |
YAW-2000D |
YAW-3000D |
|
|
Max. Load |
2000kN |
3000kN |
|
|
Control method |
Computer auto control loading process |
||
|
Test space adjustment mode |
Electric ball screw adjust |
||
|
Oil source control cabinet structure |
One-piece oil source control cabinet |
||
|
Test class |
1 class |
||
|
Testing range |
4%-100%FS |
||
|
Load display accuracy |
Better than ±1% |
||
|
Piston stroke |
50mm |
80mm |
|
|
Distance between upper and lower plate |
320mm |
340mm |
|
|
Max space between two columns |
270mm |
280mm |
|
|
Size of upper and lower platen |
250×250mm |
260×260mm |
|
|
Power supply |
2.1Kw/AC380V |
2.3Kw/AC380V |
|
Standards:
GB/T, ISO, ASTM, DIN, JIS, etc.
