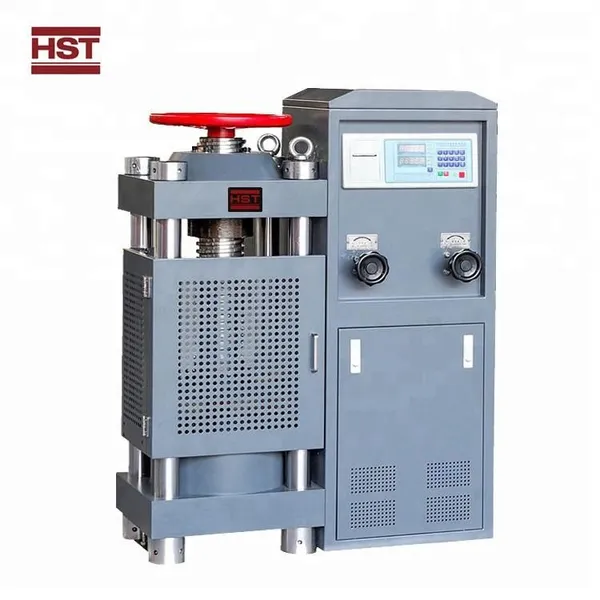

1000KN 100ton hydraulic power pack manual concrete compression testing machine CTM
Compression testing machine application:
Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Main Specification
|
Model |
YES-1000 |
|
Max. Load |
1000kn |
|
Class |
1 Class |
|
Testing Space Regulating Way |
Manual Ball Screw Adjust |
|
Control Way |
Manual Control Load Way |
|
Oil Source Control Cabinet Structure Form |
One-piece Bench Oil Source Control Cabinet |
|
Range Of Test Force |
4% ~100% of full scale |
|
Indicating Value Accuracy |
±1% |
|
Max. Piston Stroke (mm) |
80mm |
|
Compression platen size (mm) |
Φ220 |
|
Compression test space (mm) |
280mm |
|
Pressure Plates Size |
250*250mm(L*W) |
|
Display |
LCD Digital Display |
|
The Host Dimension |
900*400*1150mm |
|
Power Supply |
110V |
|
Weight |
750 KG |
Standards:
GB/T, ISO, ASTM, DIN, JIS, etc.
