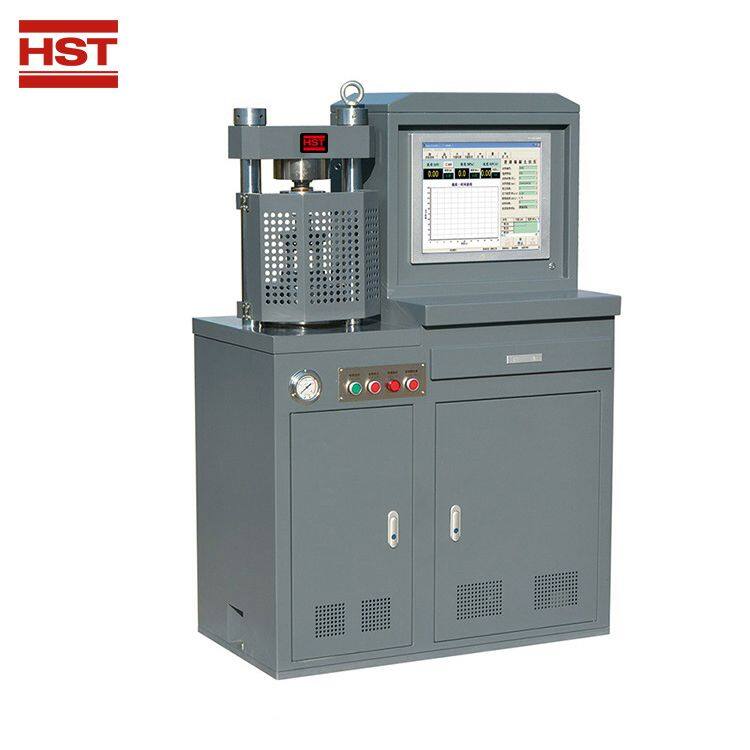

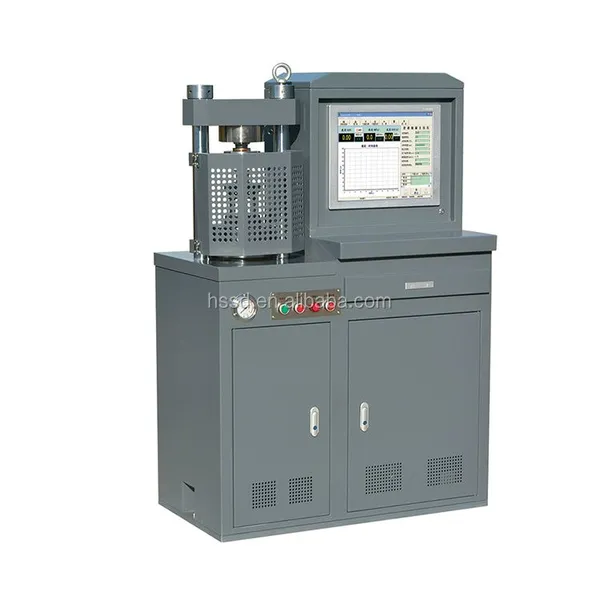

high quality stone concrete lab compression strength testing machine 200KN
Bending and compression testing machine application:
This machine adopt computer auto control, with constant test speed, constant stress, test force keeping and other control mode. The computer realize test data and test curve’display, save,manage function, can print test report. With special fixtures, can test other material compression and flexual testing.
Features and Function:
1. This testing machine adopt AC servo system drive the AC servo motor,by precision reduction gears drives the ball screw,with high test accuracy,low noise.
2. Without pressure oil leakage and proportional valve blocking, low noise, more reliable.
3. Window control and dealing software, design more reasonable.
can arbitrarily set pressure value, pressure time, auto calculate test result.
4. Advanced auto control function, can do single or batch test.
5. Auto stop,after sample broken.
6. With over load protection.
Main Specification
|
Max compression test force |
300kN |
|
Test force range |
2%~100%FS |
|
Test force accuracy |
≤±1% |
|
Load speed |
0.1~9.9KN/S |
|
Displacement indicate error |
±1% |
|
Displacement resolution |
0.01mm |
|
Displacement speed adjust |
0.01~40mm/min |
|
Control and deal mode |
Computer constant control and auto dealing |
|
Effective test width |
300mm |
|
Space between upper and lower |
280mm (optional) |
|
Effective compression space |
50mm |
|
Compression plate size |
140mm |
|
Machine size |
630*457*1410mm |
|
Power supply |
220V,50Hz,1500W |
Standards:
GB/T, ISO, ASTM, DIN, JIS, etc.
:
Dear customer, if you need our testing machines, please contact with us without any hesitate ! We will supply our best service for you !
Best Wishes
-------------
