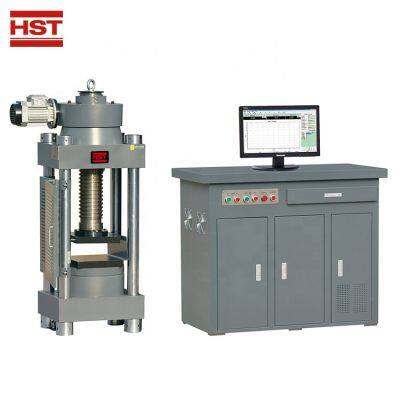

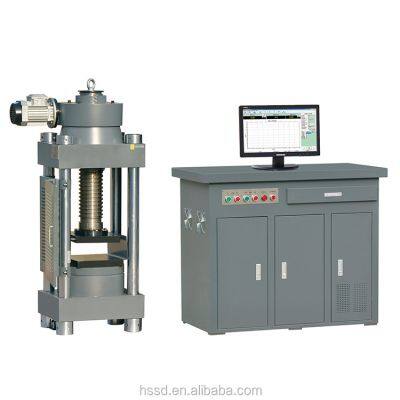

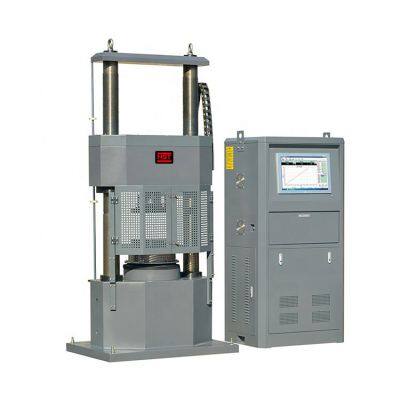

Concrete blocks making compressive strength testing machine
1. Application
YAW_D concrete compressio tester mainly used for concrete rupture strength testing,
cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Features
1). Computer control up, down, test, stop and loading progress.
2). Electric screw ball adjust test space.
3). Unibody desktop oil source control cabinet.
4). This machine consist of the host machine, oil source and control system.
5). Can realize the load rate, such as load or stress rate loading.
6). Can auto printing.
Main Specification
|
Model |
YAW-2000D |
YAW-3000D |
|
|
Max. Load |
2000kN |
3000kN |
|
|
Control method |
Computer auto control loading process |
||
|
Test space adjustment mode |
Electric ball screw adjust |
||
|
Oil source control cabinet structure |
One-piece oil source control cabinet |
||
|
Test class |
1 class |
||
|
Testing range |
4%-100%FS |
||
|
Load display accuracy |
Better than ±1% |
||
|
Piston stroke |
50mm |
80mm |
|
|
Distance between upper and lower plate |
320mm |
340mm |
|
|
Max space between two columns |
270mm |
280mm |
|
|
Size of upper and lower platen |
250×250mm |
260×260mm |
|
|
Power supply |
2.1Kw/AC380V |
2.3Kw/AC380V |
|
Standards:
GB/T, ISO, ASTM, DIN, JIS, etc.

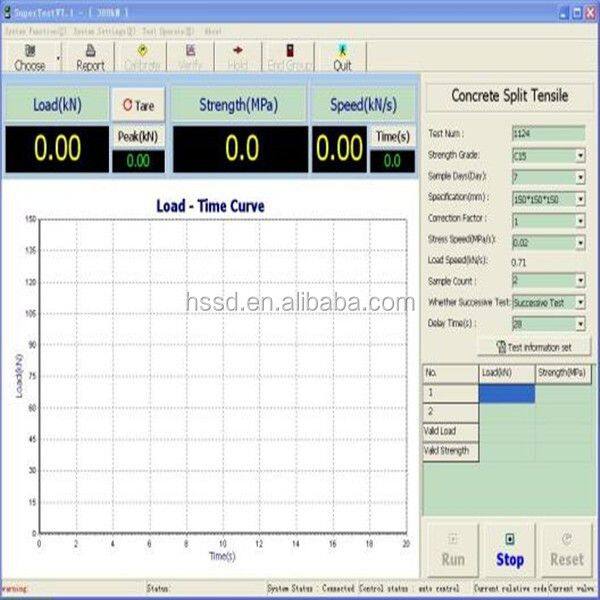

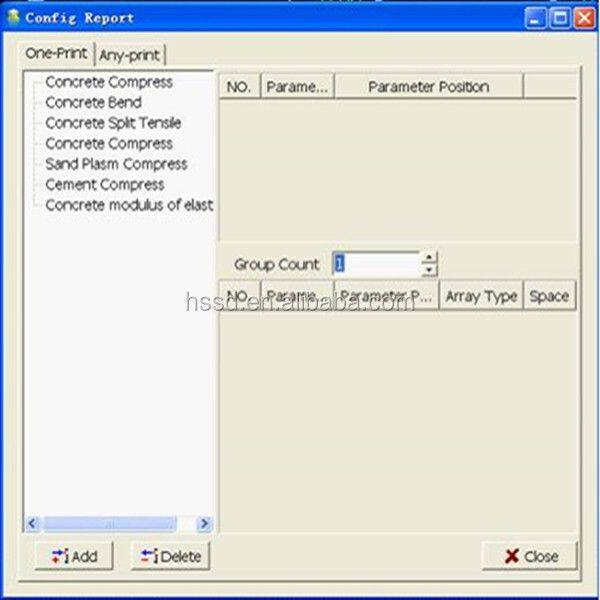

Compression test software:
Product description :
1)Composition: main unit, oil source, the measurement and control system .
2)Test space adjust way: electric hoist .
3)Hydraulic system
Hydraulic oil in the oil tank be driven into the the oil circuit by the high-pressure pump ,through the check valve, high pressure filter, pressure valve, servo valve, into the cylinder .
Control system:
This system includes a digital servo valve, high-precision sensor, controller and software, high precision control and good reliability.Satisfy the test requirements of GB, ISO, ASTM and other standards for cement, mortar concrete and other materials .
PS: System features :
1)Closed-loop control function ;
2)Can realize constant load rate or constant stress rate load ;
3)Adopts computer for electronic measurement,test automatically ;
4)Computer calculates the results and print reports automatically

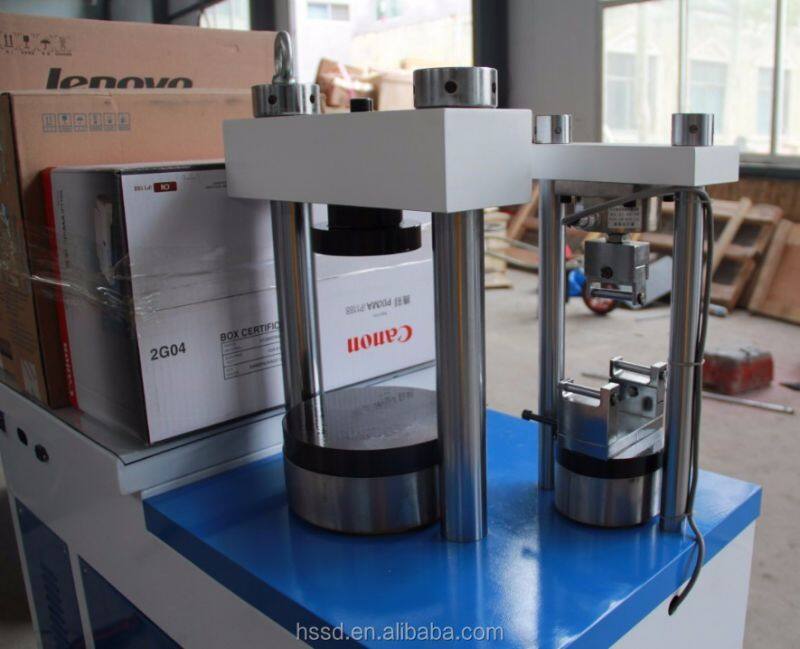

Bend and compression use fixture:
Our compression testing machines can be delivery within 7--15working days after receiving payment, the products can be shipped by air, by sea or by express delivery !
Package: wooden package
Shippment: By sea
