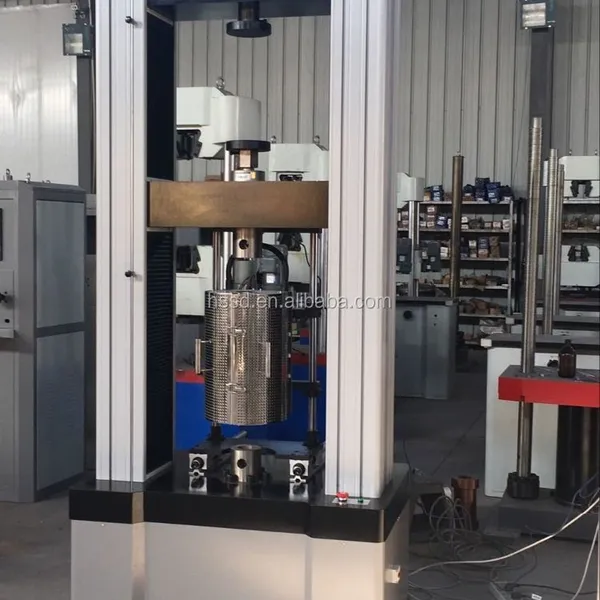

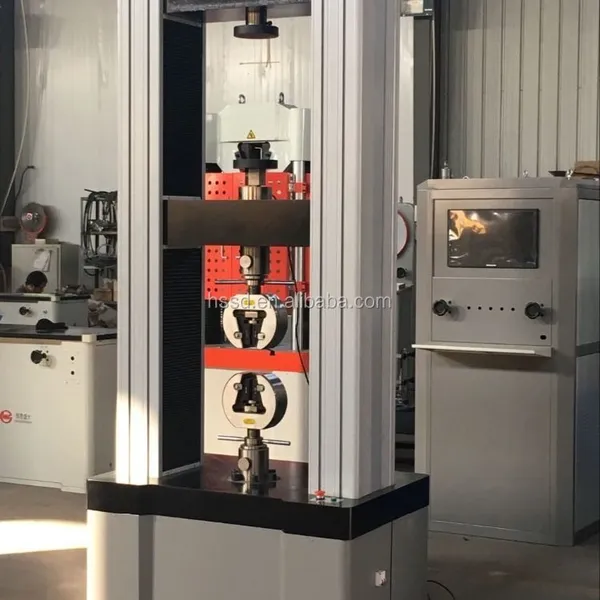

Digital 100KN Door Type Computerized Electronic Tensile Peel Force Tester
1. Application:
Peel Force Tester is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
|
Model |
WDS-10 WDS-20 |
WDS-30 WDS-50 |
WDS- 100 |
WDS-200 WDS-300 |
||||
|
Max. load |
10kN |
20kN |
30kN |
50kN |
100kN |
200kN |
300kN |
|
|
Tensile space |
800mm |
700mm |
700mm |
550mm |
||||
|
Compression space |
800mm |
700mm |
700mm |
550mm |
||||
|
Test width |
400mm |
500mm |
550mm |
600mm |
||||
|
Structure |
Four-column floor type, (upper is compression and lower is tensile) |
|||||||
|
Control method |
Single chip control |
|||||||
|
Load accuracy |
1 class |
|||||||
|
Load range |
2%~100%F·S |
|||||||
|
Resolution |
0.04um |
|||||||
|
Measuring range of deformation |
2%-100% |
|||||||
|
Testing speed |
1-500mm/min(can be customized) |
|||||||
|
Power supply |
AC220/380V±10%,50Hz (can be customized) |
|||||||
|
Grips |
Manual Wedge type, and other grips as consumer’s demand |
|||||||
|
Dimension |
1000x550x2076 mm |
|||||||
|
Weight |
160kg |
460kg |
||||||
