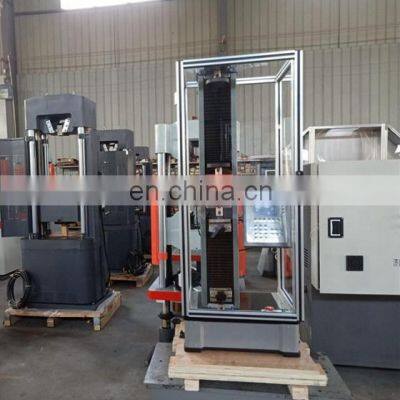

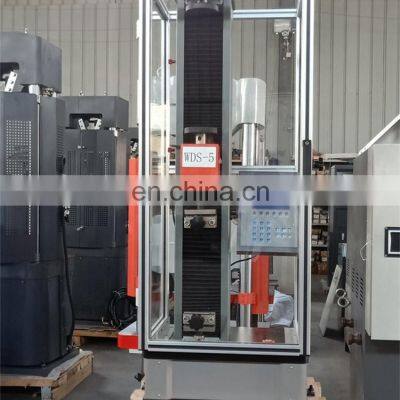

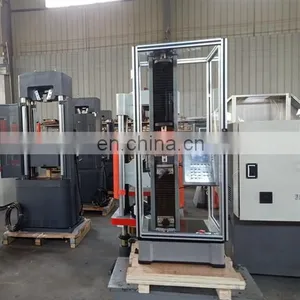

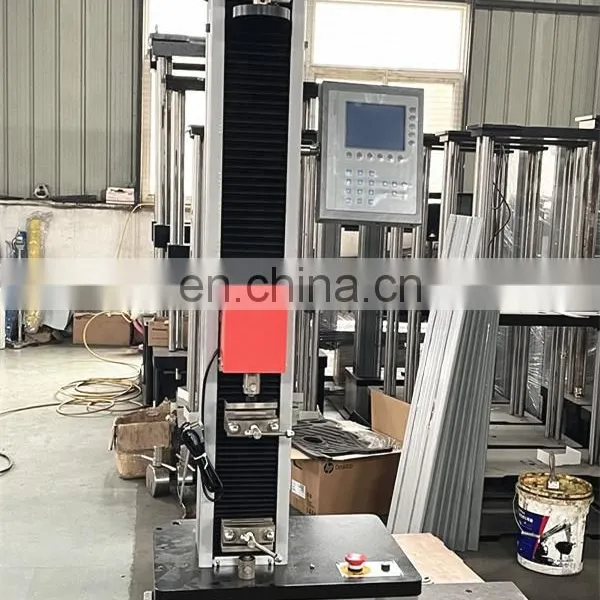

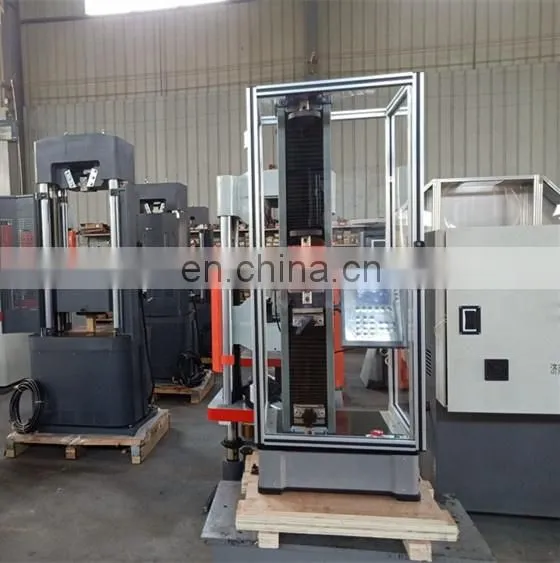

WDS-5E 5kN Digital Display Electronic Universal Testing Machine
1. Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
3. Safety Divice
3.1 Stroke protection: double protection, prevent over preset
3.2 Force protection: system setting
3.3 Emergency stop device: handing emergencies
4.Main Technical Parameters:
|
Model |
WDS-01,02,03,05,1,2,3,5
|
|
Structure |
Single column double spaces |
|
Max. Load(kN) |
0.1, 0.2, 0.3, 0.5, 1, 2, 3 ,5 |
|
Material |
All aluminum alloy surface spray painting shell |
|
Load accuracy |
ISO 7500 Class 1 |
|
Load range |
2%~100%F·S |
|
Load resolution |
1/ 50000 |
|
Resolution of displacement |
0.01mm |
|
Test speed(mm/min) |
0.05-500 stepless arbitrary setting |
|
within ±1% set speed |
|
|
E-Tensile space(mm) |
600(can be customized) |
|
E-Compression space(mm) |
600(can be customized) |
|
D-Test width(mm) |
100 |
|
F-Beam travel distance(mm) |
772 |
|
H-Workbench thickness(mm) |
26 |
|
158 |
|
|
Power supply |
AC220V±10%,50Hz/60Hz(can be customized) |
|
Video show |
5. General installation conditions and energy medium requirements
4.1 Temperature within the range 5c~35c
4.2 Relative humidity lower than 82%
4.3 In an environment without obvious magnetic interference and surrounding non-corrosive media
4.4 In a shock-free, vibration-free environment
4.5 Leave space not less than 0.7m around the tester, clean and dust-free work environment
4.6 The base and rack are properly installed on a solid level base
4.7 Power supply: AC 3Phrases 5 wires 220V±10% 50Hz 5 A
