WDS-02 200N Universal Testing Machine Fishing Line Tensile Testing Machine
- T/T Credit Card
You May Like
-
WDS-30 30KN Digital Display Micro Tensile Testing Compressive Machine for Small Business
-
WDS-2 2kn ISO ASTM DIN Standard Plastic Rubber Metal Used Electronic Universal Testing Machine With Deformation Extensometer
-
WDS-05 500N Single Column Electronic Film Tensile Test Machine Price
-
WDS 100kn 10Ton Digital Electronic Tensile Testing Machine for Rubber Plastic Film Wire Cable Textile
-
WDS-10 Electronic Digital Display Universal Testing Machine Manufacturer
-
HST Brand WDS-5 Digital Display Electronic Universal Material Testing Machine Price For Distributors
Product Description

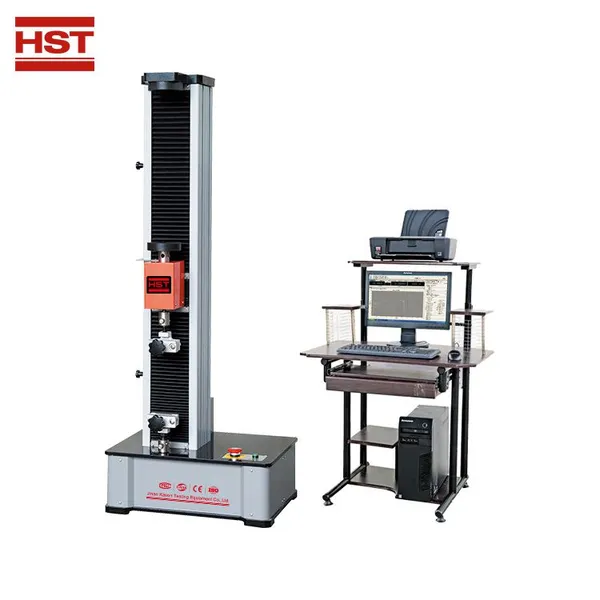

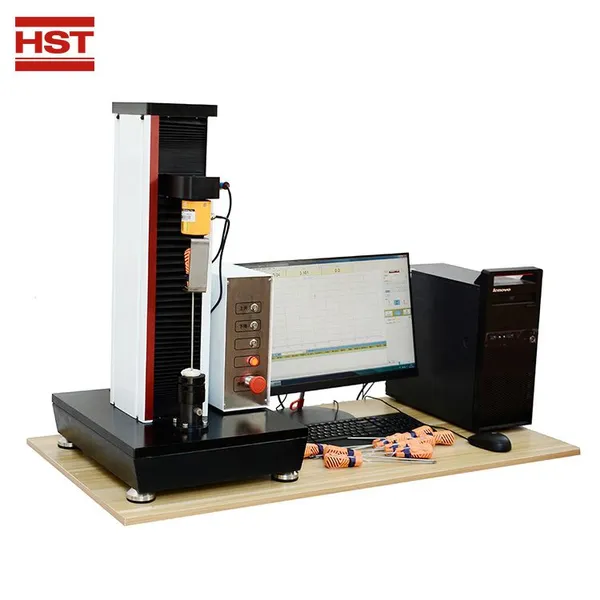

Fishing line tensile testing machine
Fishing line tensile testing machine
WDS series digital display electronic universal testing machines and WDW computer control universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards.
Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Main Unit Feature:
1.Adopt single column structure, lower for tensile, upper for compression, double space. The beam is stepless lifting, light but rigid.
2.Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
3.The photoelectric encoder is the displacement sensor, with high resolution, strong anti-interference ability.
4.The shiel plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
5.The table, moving beams is made of high quality precision machining steel plate, not only reduce the vibration generated by specimen fracture, but also improve the stiffness.
6.The motor tail is upwards, above the work surface, this design makes the main unit lower space narrowing, the whole machine is more coordinating, and more easy to spread out the heat generated by the motor rotation, extend electrical components life.
7.Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.
8.Adopt bolt type grip installation, make the grip replace easier.
Digital display control universal Testing machine specification :
Model |
WDS-02, WDS-05, |
WDS-1, WDS-5 |
WDS-10 WDS-20 |
WDS-50 WDS-100 |
WDS-200 WDS-300 |
|||
Max. Load (KN)
|
0.2 or 0.5 |
1 or 5 |
10 or 20 |
50 or 100 |
200 or 300 |
|||
Control Method
|
Single Chip Control |
|||||||
Load Accuracy
|
±1% |
|||||||
Load Range
|
2%~100% of Full Scale |
|||||||
Relative Error of Reading
|
≤±0.5% |
|||||||
Relative Error of Speed
|
≤±1% |
|||||||
Resolution of Displacement
|
0.01mm |
|||||||
Control Speed (mm/min) |
0.005-500(mm/min) |
0.005-200 (mm/min) |
||||||
Tensile Test Space
|
650mm |
|||||||
Compression Test Space
|
650mm |
|||||||
Grips
|
Manual Grip or Hydraulic Automatic Grip (Optional) |
|||||||
Power Supply
|
AC110V / 220V / 380V±10%, 50HZ-60HZ |
