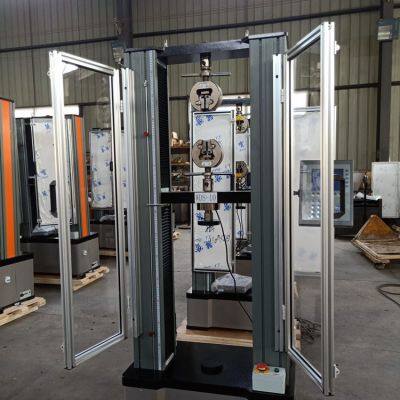

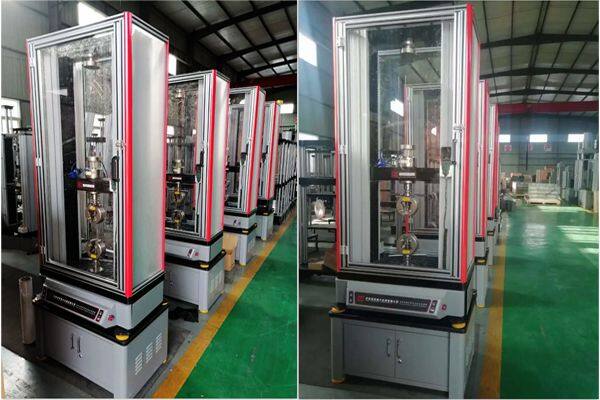

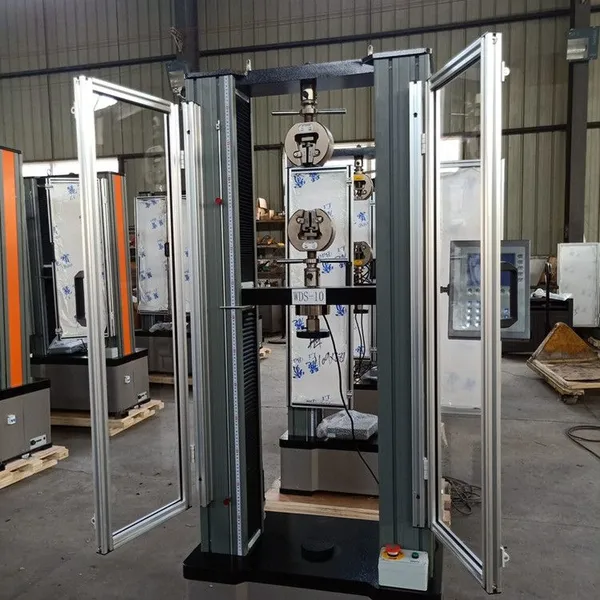

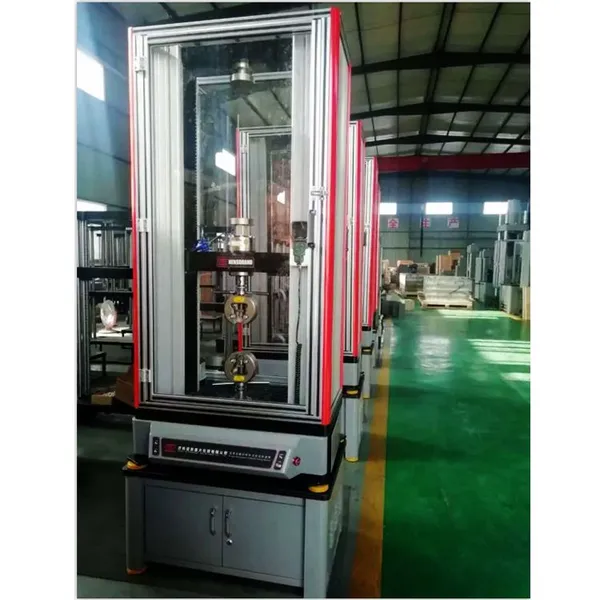

100KN Tensile Testing Machine for Polymer Matrix Composite Materials ASTM D3039| D3039M
- 1000 per Month
- T/T Credit Card
- 20/50/100/200/600KN Electronic universal tensile strength testing machine with OEM structure price
- three point bending testing machine/steel wire straightening tensile testing machine
- Textile Tensile Strength Tester/Fabric Tensile Testing Machine
- ultimate tensile strength uts laboratory testing machine
- Metal bar composite rod bending tensile strength testing machine
- 100KN automatic data processing universal testing equipment with ce
Product Description
Tensile Testing of Polymer Matrix Composite Materials ASTM D3039| D3039M
Contact Sunny Phone/Whatsapp: +86-15866777590 SKYPE: jessica-hssd
How to use this machine ?
Specimens are placed in the grips of a Universal Test Machine at a specified grip separation and pulled until failure. For special standard the test speed can be determined by the material specification or time to failure. An extensionmeter or strain gauge is used to determine elongation and tensile modulus if need. Depending upon the reinforcement and type, testing in more than one orientation may be necessary.
1. Application:
WDW series computerized electronic universal testing machines are designed and manufacture
according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research
and development, test institutes and training centers etc.
2. Main Specifications:
Model | WDW-100 | WDW-100E |
Max. Load(kN) | 100 | 100 |
Structure | Four-column floor or desk model, (upper is compression and lower is tensile) | |
Cover | All aluminum alloy | |
Control method | Computer control | |
Load accuracy | Class 1 | Class 0.5 |
Load range | 2%~100%F·S | 0.2%~100%F·S |
Load resolution | 1/300000 | |
Rang of deformation | 4%-100%FS | |
Resolution of deformation | 0.04um | |
Accuracy of displacement | Within±0.5%of indicating load | |
Resolution of displacement | 0.01mm | |
Test speed(mm/min) | 0.05-500 stepless arbitrary setting | |
Tensile space(mm) | 700(can be customized) | |
Compression space(mm) | 700(can be customized) | |
Test width(mm) | 550(can be customized) | |
Workbench thickness(mm) | 68 | |
Base height(mm) | 460 | |
Working environment | Room temperature 10℃~30℃,relative humidity≤80% | |
Power supply | AC220V±10%,50Hz/60Hz(can be customized) | |
Grips | Wedge type, plate type and other grips as consumer's demand | |
Dimension(mm) | 1000*550*2076 |

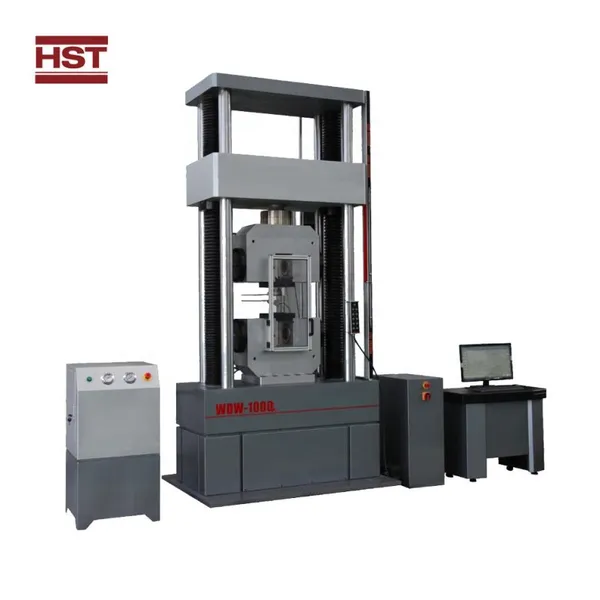

3.1 Main Unit:
This machine adopt double space structure, the upper space used for tensile test, the lower space used for
compression and bending test. The beam moving speed is stepless adjust. The drive system consist of
servo control reduction motor, arc synchronous belt, ball screw, moving steadily, high working efficiency,
low noise, no pollution.
3.2 Electrical measurement and control system
3.2.1 With protect function of overload,over current, over voltage, displacement limit, emergency stop, etc .
3.2.2 The controller can control more load sensor, high integration, stable and reliable, easy to adjust.
3.2.3 When finished testing, automatic stop.
3.2.4 Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse happen (PWM), and other functions in one
3.2.5 Mechanical zero setting, automatic force measurement, zero setting, calibration and save, highly integrated control circuit
3.3 Software and software interface
3.3.1 Based on Windows operation platform, the software adopting modulus design, with simple operation and powerful functions
3.2.2 The control panel has defined all the control parameters, data dealing method and report content an form, different test can be set according to the control panel.
3.2.3 Program adopting open database structure, integrated the GB, ISO,ASTM,JIN, DIN testing methods and can customized according to special requirements
