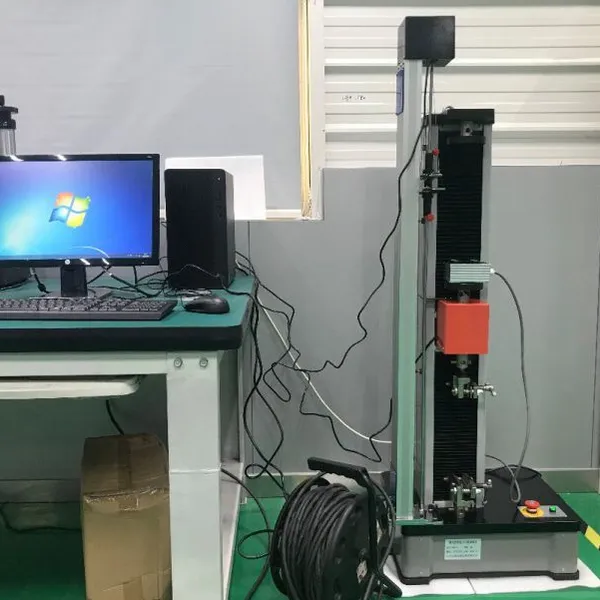

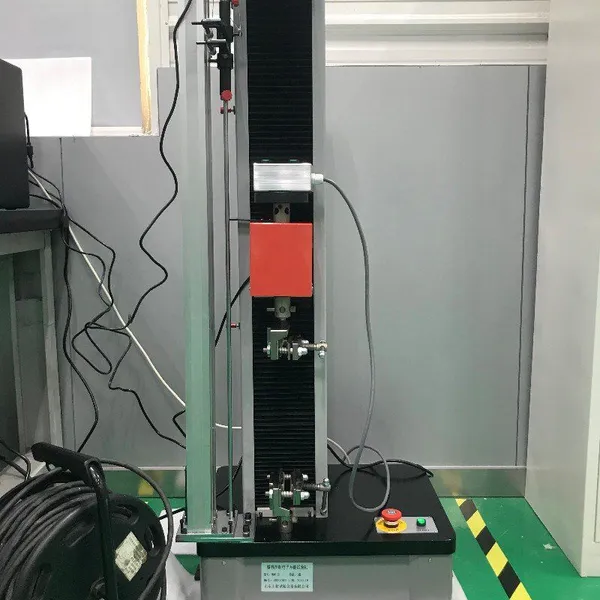

Textile Tensile Strength Tester/Fabric Tensile Testing Machine
WDS series digital display electronic universal testing machines and WDW computer control universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards.
Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Digital display control universal Testing machine specification :
|
Model |
WDS-02, WDS-05, |
WDS-1, WDS-5 |
WDS-10 WDS-20 |
WDS-50 WDS-100 |
WDS-200 WDS-300 |
|||
|
Max. Load (KN)
|
0.2 or 0.5 |
1 or 5 |
10 or 20 |
50 or 100 |
200 or 300 |
|||
|
Control Method
|
Single Chip Control |
|||||||
|
Load Accuracy
|
±1% |
|||||||
|
Load Range
|
2%~100% of Full Scale |
|||||||
|
Relative Error of Reading
|
≤±0.5% |
|||||||
|
Relative Error of Speed
|
≤±1% |
|||||||
|
Resolution of Displacement
|
0.01mm |
|||||||
|
Control Speed (mm/min) |
0.005-500(mm/min) |
0.005-200 (mm/min) |
||||||
|
Tensile Test Space
|
650mm |
|||||||
|
Compression Test Space
|
650mm |
|||||||
|
Grips
|
Manual Grip or Hydraulic Automatic Grip (Optional) |
|||||||
|
Power Supply
|
AC110V / 220V / 380V±10%, 50HZ-60HZ |
|||||||
