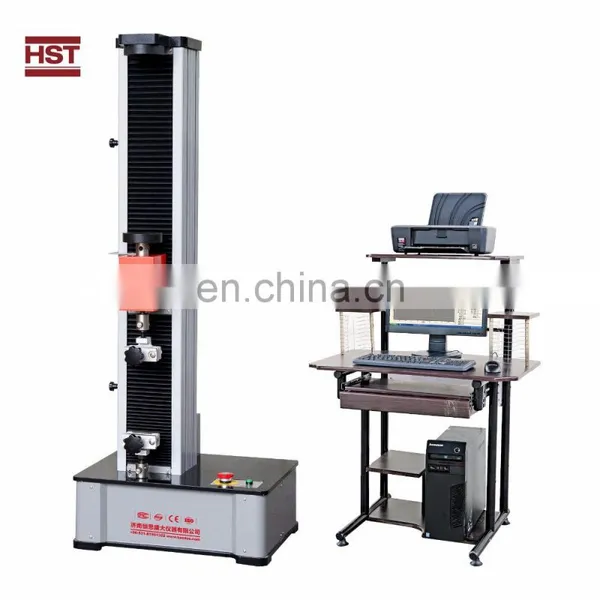

Rubber abrasion test machine/universal tensile strength tester manufacturer
Main Unit Feature:
1.Adopt single column structure, lower for tensile, upper for compression, double space. The beam is stepless lifting, light but rigid.
2.Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
3.The photoelectric encoder is the displacement sensor, with high resolution, strong anti-interference ability.
4.The shiel plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
|
Model |
WDW-1 |
WDW-2 |
WDW-3 |
WDW-5 |
|
Max. load |
1KN |
2KN |
3KN |
5KN |
|
Structure |
Single column double spaces |
|||
|
Control method |
computer control |
|||
|
Load accuracy |
1 class |
|||
|
Load range |
2%~100%F·S/0.2%-100% FS |
|||
|
Displacement Resolution |
0.01mm |
|||
|
Test speed |
0.05-500mm/min(can be customized) |
|||
|
Tensile space |
600mm (can be customized) |
|||
|
Compression space |
600mm (can be customized) |
|||
|
Power supply |
AC220V±10%,50Hz(can be customized) |
|||
|
Grips |
Wedge type, plate type and other grips as consumer’s demand |
|||
|
Dimension |
425*400*1315mm |
|||
|
Weight |
90kg |
|||
