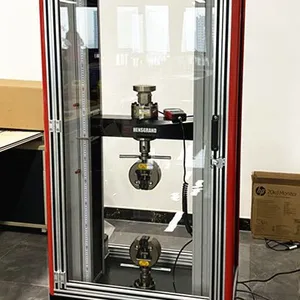

Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine thumbnail-5
Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine thumbnail-6
Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine photo-1
Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine photo-2
Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine photo-3
Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine photo-4
Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine photo-5
Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine photo-6
US$ 699 - 1899 MOQ: 1 Set
Key Specifications
Get Latest Price
Warranty:
1 YEAR
Model Number:
WDW/WDW-5/10/20/50/100/200/300/500/600
Brand Name:
HST OR OEM
Contact Supplier Request Quote Chat Now
Hst Group Co.,ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Warranty 1 YEAR
Model Number WDW/WDW-5/10/20/50/100/200/300/500/600
Brand Name HST OR OEM
Place of Origin Shandong, China
Max test force 10/20/50/200/300/600KN
Load accuracy ≤±1% (0.5 for option)
Load resolution 1/300000 of full scale
Disp. resolution 0.04μm
Test speed 0.05-1000mm/min
Color white and blue
clamp type Manual clamp
Test width 400mm
Tensile space 800mm
Motor TaiWan TECO AC Servo Motor
Customized support OEM, ODM, OBM, Software Reengineering
Power Electronic

Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine

Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing MachineComputerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing MachineComputerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing MachineComputerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine



Product Description



1. Application:

electronic tensile compression testing machine  are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc .

2.Test standards:

ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, ETC.

3. Safety devices:

Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies

4.Main Specifications:

Model

WDW-10/20/50

WDW-100

WDW-200/ 300

WDW-500/ 600

Max. Load

10kN

1000kgf

20kN

2000kgf

50kN

5000kgf

100kN

10000kgf

200kN

20000kgf

300kN

30000kgf

500kN

50000kgf

600kN

60000kgf

Structure

Floor Type

Control model

Computer control

Constant stress, constant strain,

constant displacement closed-loop control System

Load accuracy

≥±1%

Load range

2%-100% of full scale

Load resolution

1/20000 of full scale

Deformation test range

/

2%~100

Deformation accuracy

/

≥±0.5

Deformation resolution

/

1/20000

Displacement accuracy

≥±1%

Disp. resolution

0.01mm

Displacement speed

0.005-500mm/min

0.001-200mm/min

Tensile space

700mm

650mm

600mm

650mm

Test width

400mm

450mm

550mm

650mm

Clamp way

Manual clamp

Hydraulic clamp

5. NEW SPECIFICATION ADVANTAGES:

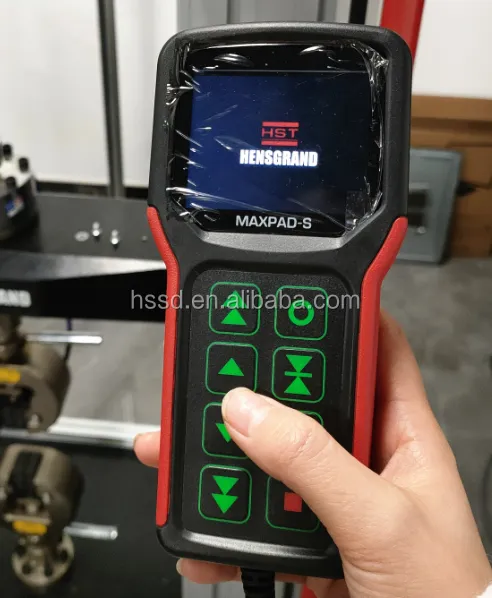

5.1 The External hand-held controller,

It adopts 320 x 240 LED display, which can quickly adjust the test space. It also has the functions of test start, test stop, test zero clearing and so on. It can display the running state of the equipment in real time, test data, make the sample clamping more convenient and easy to operate.

Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine

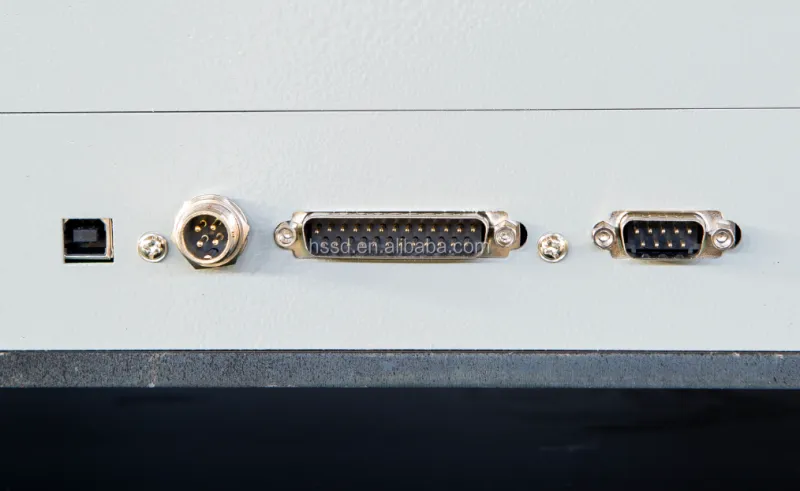

5.2.External Independent Controller
Integrated measurement, control and transmission functions, And the signal acquisition, signal amplification, data transmission, servo motor drive unit is highly integrated; USB data transmission fully supports notebook computer, tablet computer, desktop computer

Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine

For more informations, please help contact Sunny to check .

Main picture

 Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine

Computerized Material Testing Laboratory Equipments Price Electronic Universal Tensile Testing Machine
