XNR-400B Melt Flow Index MFI Testing Machine
Application:
MFR / MVR Melt Flow Rate Testing Instrument suitable for determining the melt flow rate (MFR) of thermoplastic plastic such as polyethylene,polypropylene,POM,ABS resin,Polycarbonate ,Polycarbonate .
Characteristics:
1.Use Industrial PLC programmable controller,LCD operation platform, single temperature unit,LED digital display.
2.Test measures: melt flow rate (MFR) or melt volume flow rate (MVR)
3.Has the temperature calibration function
Technical parameters:
|
Model |
XNR-400B |
|
Measuring range |
0.1-800.00g/10min(MFR) 0.1-800.00 cm3/10min(MVR) |
|
Precision of temperature control |
room temperature - 450°c |
|
Precision of temperature |
±0.2°c |
|
Precision of timer |
0.1s |
|
Displacement precision |
0.01mm |
|
Load |
full load |
|
Cutting mode |
manual, by time,automatic control |
|
Screw barrel internal diameter |
9.550mm ± 0.025mm |
|
Screw barrel length |
160mm |
|
Cavity die |
Tungsten carbide, L 8.000mm±0.025mm, internal diameter2.095mm ±0.005mm |
|
Power |
0.45 KW |
|
Power supply |
AC220V, 50Hz |
|
Dimension |
400mm ×500mm ×600mm |
|
Net Weight |
65kg |
Plastic Melt Flow Index Tester
detail show:

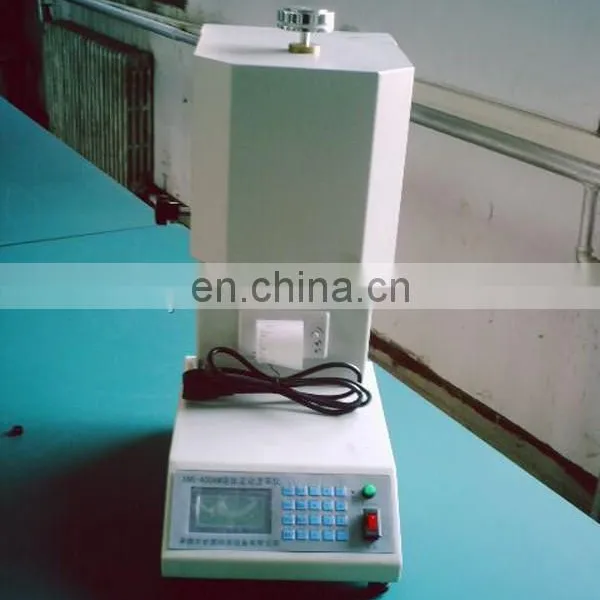

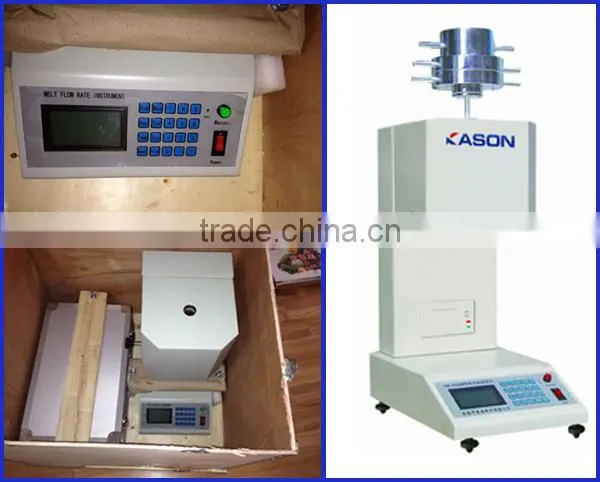

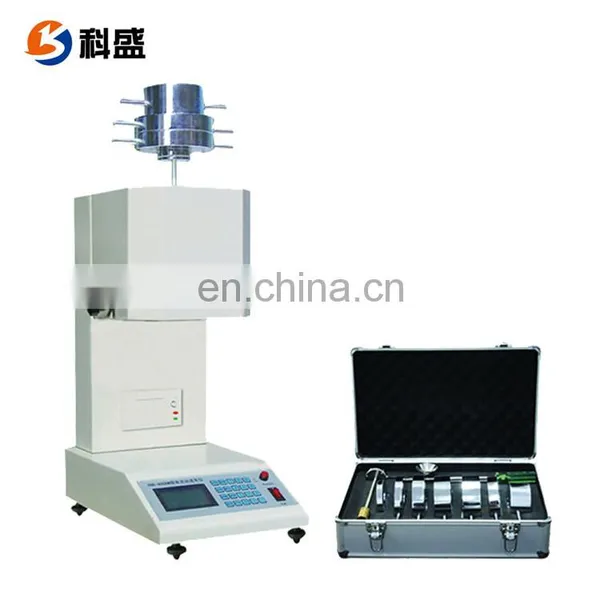

MFR / MVR Melt Flow Rate Testing Instrument
Packaging Details:Standard Export Wooden Case Or As Customers' Requestments
Delivery Detail:7 Workdays After Receiving Customers' Payment
