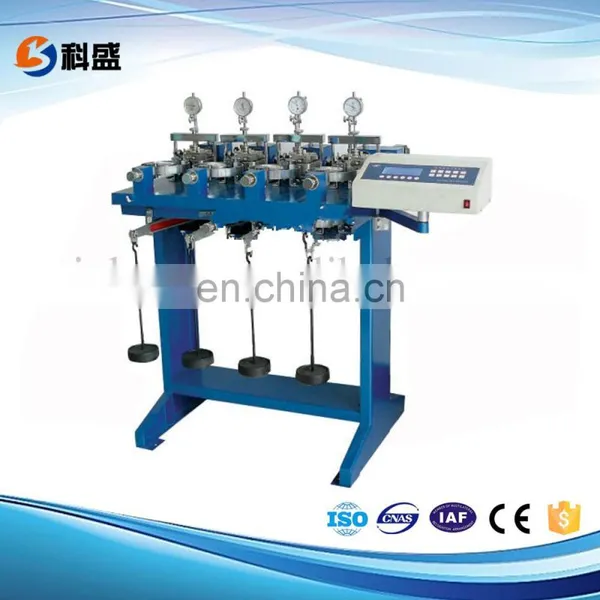

DZJ Infinitely Variable Speed Digital Soil Direct Shear Testing Machine
1. Application:
DZJ Infinitely Variable Speed Digital Soil Direct Shear Testing Machine is a kind of strain control
direct shear apparatus used to test resisting shear strength of soil specimen.
It usually adopts four specimens under the different vertical pressure and to exert horizontal force to
the specimens so as to obtain shearing stress while the specimen is destroyed.
According to Coulomb's law to confirm the resisting shear strength coefficient, angle of internal friction
and coagulable force of the soil.
2. Main Specifications:
|
Model |
DZJ |
|
Max.Vertical Loading Capacity |
400Kpa |
|
Pressure Grading |
100Kpa, 200Kpa, 300Kpa, 400Kpa |
|
Lever Ratio |
1:12 |
|
Shear Box |
4 Units (Standard Configuration is Square Boxes) |
|
Area Of The Soil Sample |
30cm2 * 2cm(H) |
|
Max.Horizontal Shearing Force |
1.2 KN |
|
Shear Rate |
Infinitely Variable Speeds |
|
Display |
Digital Display |
|
Power |
<100W |
|
Power Supply |
220V, 50Hz |
|
Dimension |
680 * 740 * 1050mm (L x W x H) |
|
Weight |
200 KG |
