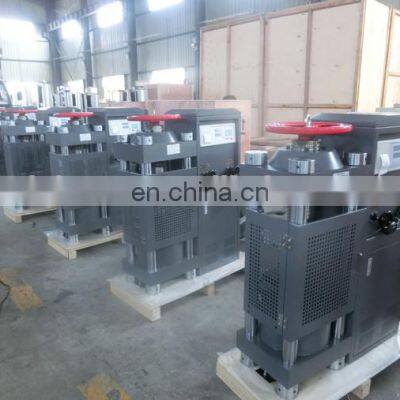

YES 300KN Digital Display Cement Cube/Concrete Compressive Strength Testing Machine/Brick Compression Testing Equipment
1. Application:
This Series machine adopts loading hydraulically with accurate and reliable test data. In order to guarantee the accuracy of test load readout, it adopts oil pressure transducer to measure the load, after amplifying, the test load, peak value and loading speed can be displayed digitally. The oil source is installed at the bottom of control cabinet in which there is a double-flow high-pressure piston pump driven by the motor. The hydraulic system is controlled manually with the functions of easy operation, safety and reliability. It is widely used for building material compression test, such as concrete. Cement, brick, etc.
2. Main Specifications:
|
Model |
YES-300 |
|
Max. Load |
300kN |
|
Range of test force |
30-300kN |
|
Test space adjust way |
Setting block adjustable test space |
|
Oil control cabinet structure type |
With the host integration design |
|
Control way |
Manual control loading process |
|
Accuracy class |
1 class |
|
Load display accuracy |
superior to ±1% |
|
Resolution of test force |
1/10000 |
|
Piston stroke |
80mm |
|
Max piston speed |
50mm/min |
|
Max distance between upper and lower plate |
210mm |
|
Max distance between two columns |
180mm |
|
Compression plate size |
120mm |
We have manufactured and exported all kinds of testing machines with CE certificate for 10 years. such as: YES 300KN Digital Display Cement Cube/Concrete Compressive Strength Testing Machine/Brick Compression Testing Equipment
