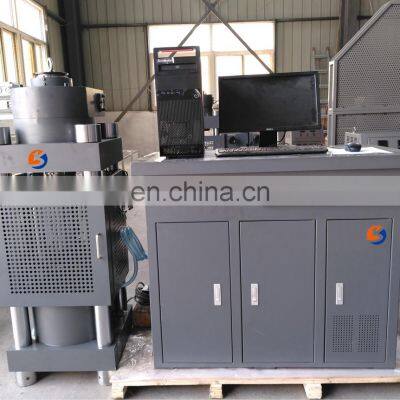

YES-2000D 2000kN Used Tyre Pressure Testing Machine
- T/T Credit Card
You May Like
-
Digital Mullen Paper Burst Mullen Burst Strength Test Machine
-
YES-2000 2000kN Hydraulic Press Test Equipment, Concrete Compression Testing Machines
-
Concrete Compression Testing Machine/ Press Force Tester
-
YES-2000 2000KN 200TON Digital Display Hydraulic Power Manual Concrete Compression Testing Machine
-
2000kN Laboratory Cement Compression Testing Machine Compressive Strength Test Equipment
-
YES-2000 Digital Display Manual Concrete Compression Testing Machine Compressive Strength Testing Machine Compression Tester
Product Description
Factory directly hot sales : YES-2000D 2000kN used tyre pressure testing machine
1. Application
Digital display compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Product description:
* Structure::mainly composed by main unit, oil source and measuring control system.
*Space adjusting way: Electric ball screw adjusting to realize the compression space adjusting
* Measuring control system:The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.
* Safety protection device:When the test foce exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
- 3. Main Specifications
Model | YES-2000D | YES-3000D | |
Max test force | 2000kN | 3000kN | |
Test space adjusting way | Electric ball screw adjusting | ||
Control way | Manual control loading process | ||
Accuracy class | 1 class | ||
Test force range | 4%~100%F·S | ||
Test value accuracy | Better than ±1% | ||
Oil cylinder stroke | 50mm | ||
Max distance between upper and lower plate | 320mm | 340 mm | |
Max distance between two columns | 280mm | ||
Upper and lower pressure plate | 250×250mm | 270*270mm | |
Main unit dimension | 1000×500×1450mm | ||
Power supply | 2.0Kw/AC380V | ||
Weight | 1000Kg | 1200kg | |
4,Configuration:
4.1 High strength main unit- 1 set
4.2 one-piece Oil source control cabinet-1 set
4.3 High precision pressure sensor-1pc
4.4 Digital display operation instrument- 1 set
4.5 Mini printer- 1 pc;
4.6 Compression grip-- 1 set
