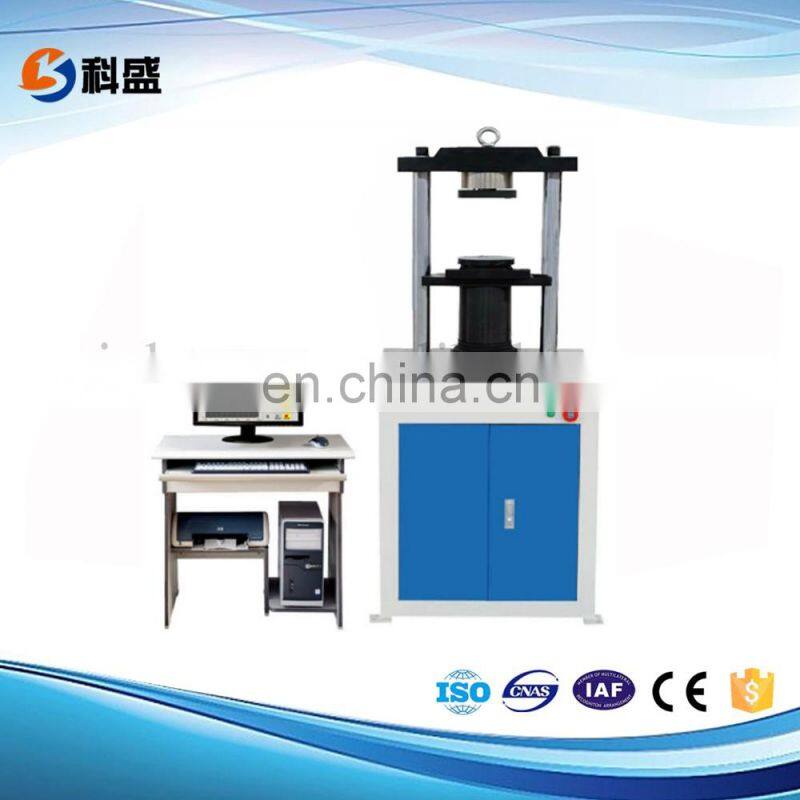

YAW-300D Brick Compression Testing Machine / Concrete Pressure Testing Equipment
YAW-300D Brick Compression Testing Machine /
Concrete Pressure Testing Equipment
YAW-300D Brick Compression Testing Machine / Concrete Pressure Testing Equipment
YAW-300D Brick Compression Testing Machine / Concrete Pressure Testing Equipment
1. Introduction:
YAW-300D Brick Compression Testing Machine / Concrete Pressure Testing Equipment adopt Ac servo drive, precision reduction gears drives the ball screw, with high test accu-
racy, low noise. More used computer control, with constant test force, constant stress, test
force keep and control mode. Can test cement compression and flexual performance.
2. Main Specification
|
Product name |
YAW-300D Brick Compression Testing Machine / Concrete Pressure Testing Equipment |
|
Model |
YES-300D |
|
Max compression test force |
300kN |
|
Max flexual test force |
10kN |
|
Test force range |
2%~100%FS |
|
Test force accuracy |
≤±1% |
|
Load speed |
0.1~9.9KN/S |
|
Displacement indicate error |
±1% |
|
Displacement resolution |
0.01mm |
|
Displacement speed adjust |
0.01~50mm/min |
|
Control and deal mode |
Computer constant control and auto dealing |
|
Effective test width |
230mm |
|
Space between upper and lower |
200mm (optional) |
|
Effective compression space |
50mm |
|
Compression plate size |
140mm |
|
Machine size |
800×385×1490mm |
|
Power supply |
220V,50Hz,1500W |
Jinan Kason Testing Equipment Co., Ltd. wasestablished in 2009, and is mainly
specialized in developing and manufacturing testing equipment used for metal,
non - metal and composite material mechanic performance testing. Our products are
widely used in steel metallurgy, machinery manufacturing, space flight and aviation,
military, auto manufacturing, rubber industry, plastic industry, etc. Our products sell well
around the world.
"To make the high quality products" is our manufacturing philosophy!
With scrupulous manufacturing process, large - scale production, strict quality
management, normative user training and improved service system , our company is
specialized in providing customers with humanized products which customers can
rest assured to buy and use with ease.
Our main products are hydraulic universal test machines, electronic universal test
machines, compression test machines, ring stiffness test machines, spring test
machines, horizontal tension test machines, impact test machines metallographic
sample preparation equipment, hardness testers and testing machine accessories.

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
