Steel Strand Tensile Stress Relaxation Testing Machine Model Machine Hydraulic Universal Testing Machine300kn
1. Application:

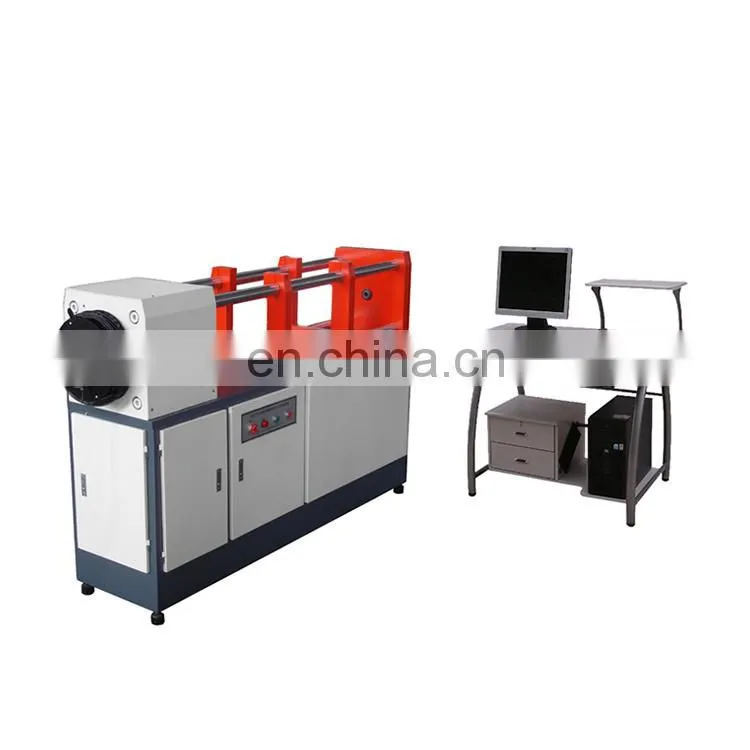

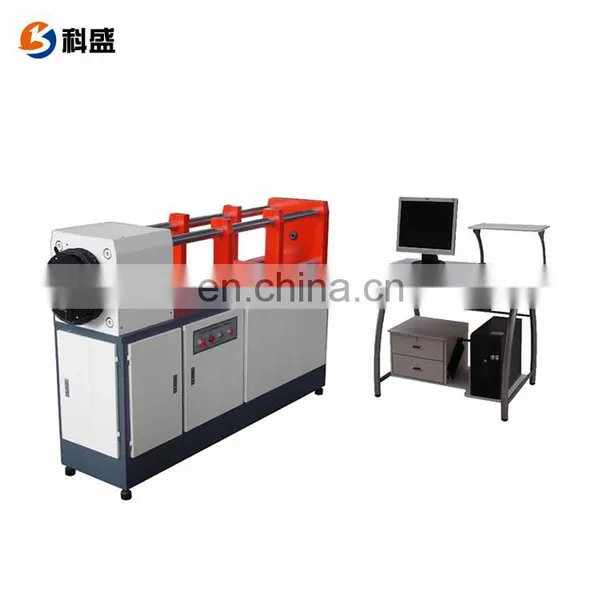

WDW-600R Computer Control Steel Strand Tensile Stress Relaxation Testing Machine
used to test the relaxation properties of the Steel Strand, Steel Bars and Stress Wires.
Using advanced Gear Of Tooth Modification technology, to ensure that testing machine structure
compact, achieve precise measurement results, at the same time with high-quality accessories,
to achieve efficient measurement.
2.Main Specifications:
Model |
WDW-600R |
Host Structure |
Horizontal Type |
Max. Test Force |
600 KN |
Test Force Range |
2%~100% (12 KN~600 KN) |
Accuracy Of Testing Force |
Better Than ±0.5% Of Indicated Value |
Test Force Resolution |
10 N |
Max. Relaxation Test Space |
2000 mm (Do Not Including Stretching Stroke) |
Chucks Displacement Resolution |
0.001 mm |
Stretching Stroke |
200 mm |
Digital Micrometer |
Range: 10 mm, Resolution: 0.001 mm |
Clamping Specimen Diameter |
Φ12.7mm, Φ15.2mm, Φ17.8mm, Φ18.9mm, Φ21.8mm |
