KASON "Universal Testing Machine" 50kn Corrugated Box Compression Tester With High Quality

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

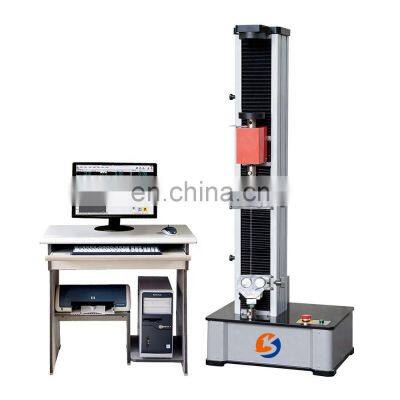

KASON "Universal Testing Machine" 50kn corrugated box compression tester with high quality

Product Description

Specifications

Specifications:
Model	ETM503	ETM104	ETM204	ETM304	ETM504	ETM105
Columns	Double Column
Load Capacity (kN)	5	10	20	30	50	100
Test Grade	0.5	0.5	0.5	0.5	0.5	0.5
Testing Force Accuracy	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Testing Force Range	0.4%-100%FS	0.4%-100%FS	0.4%-100%FS	0.4%-100%FS	0.4%-100%FS	0.4%-100%FS
Force Resolution	1/300000	1/300000	1/300000	1/300000	1/300000	1/300000
Displacement Accuracy	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Displacement Resolution	0.05mm	0.05mm	0.05mm	0.05mm	0.05mm	0.05mm
Speed Range (mm/min)	0.01-1000	0.01-1000	0.01-1000	0.01-1000	0.01-1000	500
Control Accuracy	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Max. Tensile Testing Space(mm)	670	670	670	770	770	650
Max. Compression Testing Space(mm)	900	900	900	1000	1000	1000
Test width (mm)	450	450	450	450	450	550
Compression Platen	80mm	80mm	80mm	80mm	80mm	80mm
Load cell	High-precision USA load cell offers high stiffness, high stability, and high linearity Over-load protection ,lateral loading protection, Bi-direction allows tension and compression test Self-recognition (TEDS) function, Regular self-calibration
Position limit switch	Upper and lower lights
Power Supply	AC220V±10%, 50Hz/60Hz
Overall Dimensions (LWH: mm)	850 x 590 x 1750			840 x 570 x 1850		950x660x2000
Net Weight(kG)	370	370	370	420	420	680
Note:Extra wide and/or extra height frames are available.Power supply system is completely customizable.Tensile space, test width, and speed is completely customizable.

contact

Please contact KASON directly for best quotation
