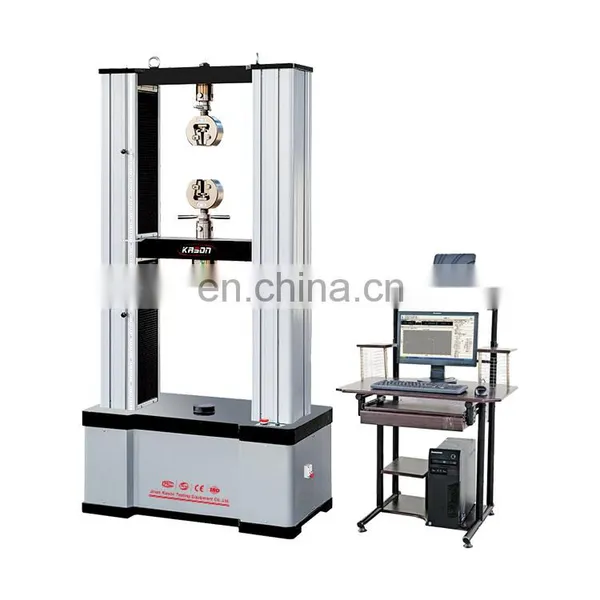

WDW-10 10kN Electronic Universal Tensile Strength Testing Machine
Product Description
Introduction

WDW series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension,
compression, flexure, shear, tear and peel etc.
The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.

100kn tension testing mahcine 100kn universal testing machine 100kn universal testing machine price 100kn utm 100KN Wire TensileTesting Equipment 100KN wire tensile testing machine

Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, etc.
Specification
Model
WDW-10E
WDW-20E
WDW-30E
WDW-50E
WDW-100E
Structure
column and 2 Ball Screw
Max. Load(kN)
10
20
30
50
100
Tensile space(mm)
670
770
650
Compression space(mm)
900
1000
1000
Host Weight (kG)
370
420
680
Power Supply
220V/50-60Hz
Controller
24 bit AD, external controller
communication mode
USB 2.0
Hand control box
320x240 Display Sscreen，8 key control
Speed(mm/min)
0.01-1000
0.01-500
Displacement resolution
0.4 pm
0.2 pm
Load accuracy
Class 0.5, EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5
Measuring range
0.2％～100％
strong electric drive system
24V voltage control, with over current overloading protection function
Position limit switch
Upper and lower lights
Power
Power light,leak current protection device
Automatic protection
Overload 10%, automatic protection
Please contact KASON directly for best quotation
Application
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software. Test Typical: wide range of tension, compression, bending, shearing and low cycle test, include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
